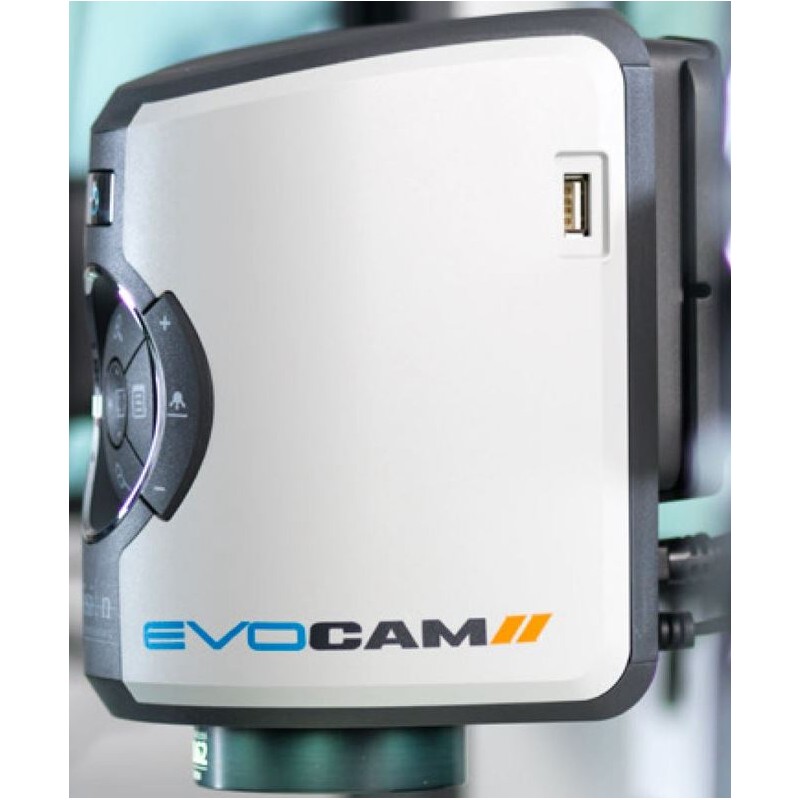

Vision Engineering Microscope EVO Cam II, ECO2501, ergo, LED light, 0.62x W.D.106mm, HDMI, USB3, 24" Full HD (69139)

The EVO Cam II digital microscope delivers outstanding image quality, making even hidden details visible. With up to 300x optical magnification and intelligent auto focus, you get sharp, clear images every time. The system is designed for fast and efficient measurement of complex parts using overlays or point-to-point measurements. High-resolution images can be captured instantly at the press of a button—save them directly to a USB stick, to a PC, or transfer wirelessly with the Wi-Fi option. Ten programmable presets can be stored on the camera for quick recall, and these settings can be exported or imported for consistent inspections across different systems and locations. Calibration data can also be saved for easy reuse.

Key Features

• Razor-sharp image quality with intelligent auto focus

• Optical magnification range from 1.7x to 300x

• Maximum magnification with digital zoom up to 3600x

• Fast 60 fps imaging for blur-free results

• Complete 360° inspection without moving the object or sample

• Large field of view and long working distances

• Save up to 10 presets to reduce setup time

• Supports customer-specific overlays

• Wi-Fi and USB 3.0 for fast image transfer

• Efficient screen measurement with virtual measuring lines and scalable crosshairs

• Camera zoom: 30x optical, 12x digital

• Camera resolution: 1080p, 1920x1080, 1/2.8” CMOS sensor

• Frame rates: 50 fps and 60 fps (switchable)

• Output: HDMI and USB 3.0

• Image file format: .png

Specifications

Mechanics:

• Type: Digital microscope

Camera:

• Color camera: Yes

• Sensor: CMOS

• Chip size: 1/2.8”

• Megapixels: 2.1

• Photo resolution: 1920x1080 pixels

• Frame rate: 60 fps

• Shutter: Electronic

• Minimum exposure time: 0.1 ms

• Maximum exposure time: 1000 ms

• Peltier cooling: No

• Image transmission: HDMI

General:

• Width: 16.5 mm

• Height: 14 mm

• Length: 11 mm

• Series: EVO Cam II

Miscellaneous:

• Supplier product number: ECO2501
