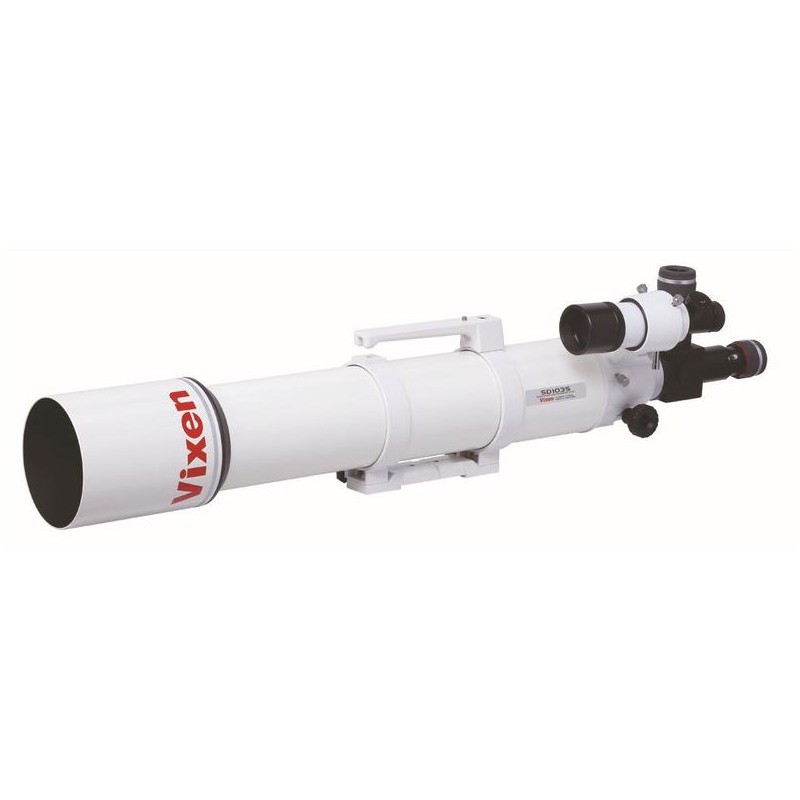

Vixen Apochromatic refractor AP 103/795 SD103S OTA (56273)

The Vixen SD103S is part of Vixen’s new range of apochromatic refractors featuring super-ED (SD) glass. The redesigned lens uses FPL-53 glass, which greatly reduces chromatic aberration and delivers exceptionally clear and sharp images. When combined with the optional SD Reducer HD or SD Flattener HD kits, these refractors provide a 44mm image circle, making them suitable for full-frame DSLR cameras. The internal baffles are optimized for the M8.

These SD apochromatic refractors are excellent for astrophotography and also provide impressive visual observation. The practical flip mirror allows you to connect an eyepiece at a comfortable viewing angle while also attaching a camera. The telescopes are compact and lightweight, making them easy to handle and transport.

Please note: The product may differ slightly from the illustration. Eyepieces are not included.

Specifications

Optics:

• Type: Refractor

• Design: Apochromat

• Aperture: 103 mm

• Focal Length: 795 mm

• Aperture Ratio: f/7.7

• Resolving Capacity: 1.12 arcseconds

• Limiting Magnitude: 11.9

• Light Gathering Power: 220

• Maximum Useful Magnification: 206x

• Tube Length: 810 mm

• Tube Diameter: 115 mm

• Tube Material: Aluminium

• Tube Weight: 5.4 kg

• Stray Light Baffles: Yes

• Tube Construction: Full tube

• Lens Design: Doublet

Focuser:

• Camera Thread: 60mm and 31.7mm (T2)

• Eyepiece Connection: 2 inch

• Gear Reduction: None

Mount:

• Mount Included: No

• Type: OTA (Optical Tube Assembly)

• GoTo Control: No

Included Accessories:

• Tube Clamps: Yes

• Tilting Mirror: 1.25 inch for 2 eyepieces

• Carrying Handle: Yes

• Prism Rail: Vixen-style

• Finder Scope: 7x50

• Dew Shield: Yes

General Information:

• Series: SD-Apo

Areas of Application:

• Astrophotography: Yes (very good)

• Moon and Planets: Yes

• Nebulae and Galaxies: Yes

• Nature Observation: No

• Sun: No (only with appropriate solar filter)

Recommended For:

• Beginners: No

• Advanced Users: Yes

• Observatories: No
