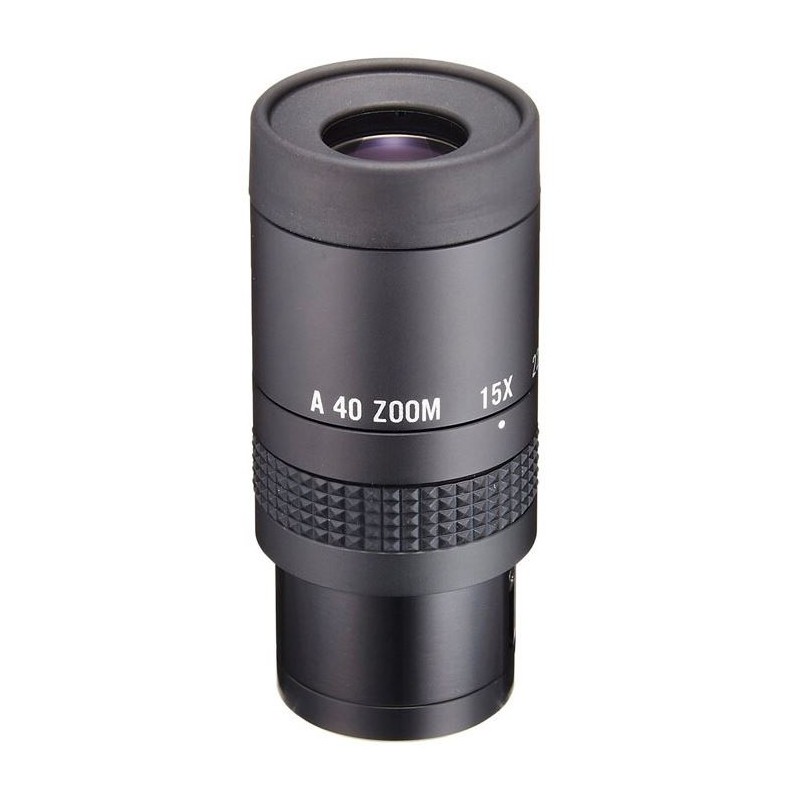

Vixen AL 15-40 Zoom eyepiece (5712)
The Geoma AL 15-40 zoom eyepiece is designed for use with the Geoma II ED 52-S spotting scope. It provides variable magnification, making it versatile for different observation needs.
18567.03 ¥ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description
The Geoma AL 15-40 zoom eyepiece is designed for use with the Geoma II ED 52-S spotting scope. It provides variable magnification, making it versatile for different observation needs.
Specifications:
Type: Zoom eyepiece
Compatible with: Geoma II ED 52-S spotting scope
Magnification: 15x to 40x (with Geoma II ED 52-S)
Optical coating: Fully multi-coated
Eye relief: 10 to 13 mm
Exit pupil: 3.5 mm (at 15x), 1.3 mm (at 40x)
Watertight: Yes
True field of view: 2.3° (at 15x), 1.4° (at 40x)
Apparent field of view: 35° (at 15x), 56° (at 40x)
Field of view at 1,000 m: 40.1 m (at 15x), 24.4 m (at 40x)
Close focus limit: 3 m
Weight: 74 g
Length: 71 mm
Diameter: 33 mm
Series: Geoma II
Data sheet
