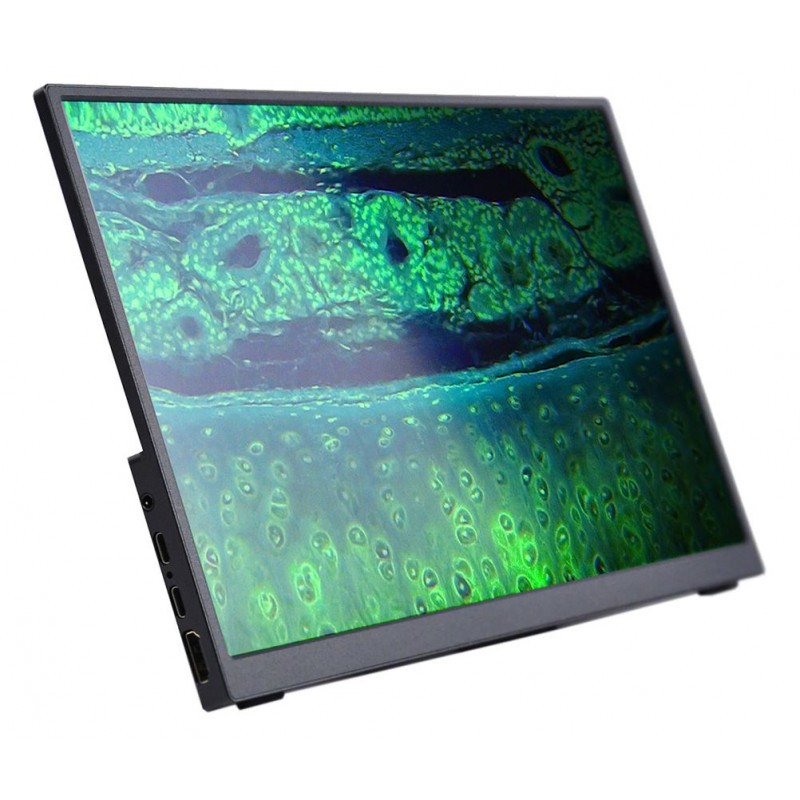

MAGUS MCD20 LCD Monitor 13.3", IPS, 1920x1080px (Full HD), HDMI (83210)

MAGUS MCD monitors are designed to work seamlessly with MAGUS CHD cameras, creating a complete imaging solution for MAGUS microscopes.

The MCD20 monitor model displays images in Full HD resolution and is recommended for use with the following MAGUS camera models: CHD10, CHD20, and CHD30.

Connection to the camera is made via an HDMI interface, allowing the monitor to show real-time images. The monitor uses an IPS LCD panel, which ensures a wide viewing angle, high brightness, and strong contrast. Images remain clear and undistorted, even when viewed from wide angles. The display measures 13.3 inches.

Installation is flexible: the monitor can be placed on a flat surface using a folding stand, or it can be mounted directly onto a camera or tripod.

Specifications

Product ID: 83210
Brand: MAGUS
Warranty: 5 years
EAN: 5905555019321
Package size (LxWxH): 35 x 24 x 6 cm
Shipping weight: 1.25 kg
Matrix type: IPS
Display size: 13.3 inches
Display resolution: 1920 x 1080 pixels (Full HD)
Aspect ratio: 16:9
Brightness: 400 cd/m²
Number of displayed colors: 16.7 million
Contrast ratio: 1000:1
Viewing angle (horizontal/vertical): 178°/178°
Visible screen area (WxH): 295 x 165 mm
Pixel pitch (WxH): 0.154 x 0.154 mm
Optical source frequency: 60 Hz
Matrix backlight type: LED
LED backlight lifetime: 50,000 hours
Interface: HDMI
Operating temperature: -15°C to +55°C
Operating humidity: 10% to 90%
Power supply: AC 110–220V, DC 5–12V/1A (Type-C)
Maximum power consumption: 12 W
