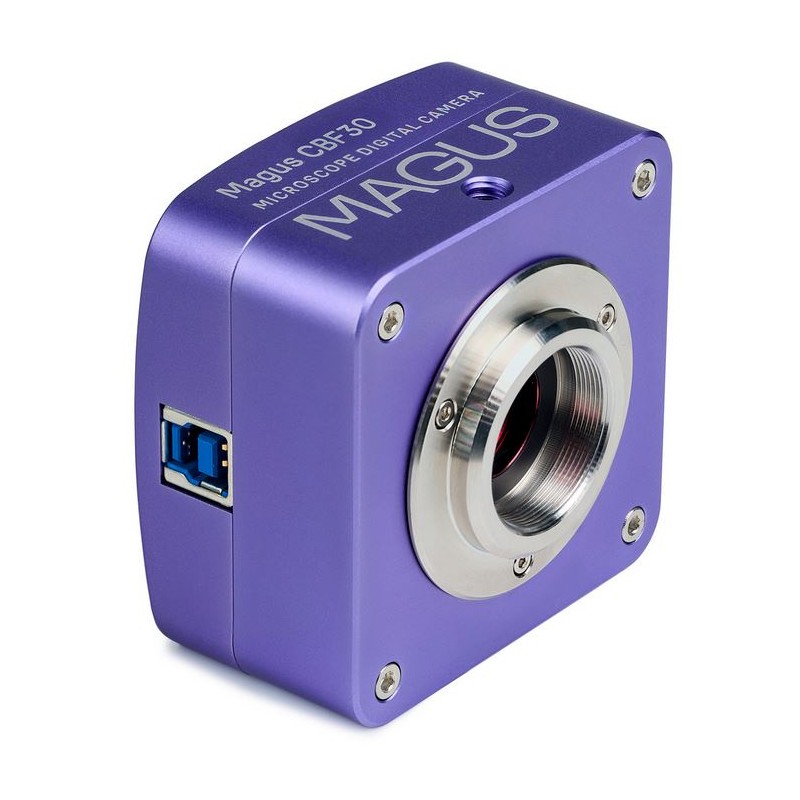

MAGUS CBF30 Digital Camera USB 3.0, 6.3MP, 1/1.8'', color (85620)

The MAGUS CBF30 Digital Camera allows you to capture photographs and record videos through a microscope. You can edit your files, organize presentations, and make linear and angular measurements of observed objects after calibration. This camera is designed for microscopes that use the brightfield method and supports use with 4x, 10x, 20x, and 40x objectives.

Image and Video Performance

The 6.3MP sensor produces bright, detailed images and videos at a maximum resolution of 3072x2048 pixels. If needed, the resolution can be lowered to 1536x1024 pixels, but the frame rate will always remain at 59 frames per second. This ensures smooth video with no lag or stutter, even when recording moving objects.

Sensor Technology

The camera features a SONY Exmor backlit color CMOS sensor, which allows for use in low-light environments. The image will remain clear and bright. For the sharpest, distortion-free images, use an adapter with a magnification between 0.5x and 0.75x.

Additional Features

The MAGUS CBF30 uses a USB3.0 interface, ensuring fast and reliable data transfer. The camera comes with specialized software for photo and video capture, file editing, live display on an external screen, and classroom demonstrations.

Installation Options

The camera can be installed in the microscope’s trinocular tube using a C-mount adapter. Installation in an eyepiece tube is also possible with a C-mount adapter and the appropriate adapter ring.

Key features:

• Designed for use with low-magnification objectives

• Color sensor provides clear images even in low-light conditions

• Maintains a frame rate of 59fps for smooth observation of moving or fast-changing subjects

• Includes software to enable all camera functions and quick setup

• Reliable USB3.0 interface for fast data transfer

• Adjustable resolution to fit different needs

The kit includes:

• Digital camera

• USB cable

• Installation CD with drivers and software

• User manual and warranty card

Technical Specifications

Product ID: 83204
Brand: MAGUS
Warranty: 5 years
EAN: 5905555019260
Package size (LxWxH): 15 x 15 x 10 cm
Shipping Weight: 0.6 kg
Sensor: SONY Exmor CMOS
Color Output: Color
Megapixels: 6.3
Maximum resolution: 3072 x 2048 pixels
Sensor size: 1/1.8" (7.37 x 4.92 mm)
Pixel size: 2.4 x 2.4 μm
Light sensitivity: 425 mV at 1/30s
Signal/noise ratio: 0.15 mV at 1/30s
Exposure time: 0.02 ms to 15 s
Video recording: Supported
Frame rates: 59 fps at 3072x2048, 59 fps at 1536x1024
Installation: Trinocular tube or eyepiece tube (with appropriate adapters)
Image formats: JPG, BMP, PNG, TIF
Video formats: WMV, AVI, H.264 (Windows 8 and newer), H.265 (Windows 10 and newer)
Spectral range: 380–650 nm (with built-in IR filter)
Shutter type: Electronic rolling shutter
White balance: Manual or automatic
Exposure control: Manual or automatic
Software controls: Image size, brightness, exposure time
Output: USB 3.0, 5 Gb/s
System requirements: Windows 8/10/11 (32- and 64-bit), Mac OS X, Linux, Intel Core 2 or higher (up to 2.8GHz), at least 2GB RAM, USB 3.0 port, CD-ROM, 17-inch or larger display
Software: MAGUS View
Mount type: C-mount
Body: Solid aluminum
Power supply: 5V DC via USB port
Operating temperature: -10°C to +50°C
Operating humidity: 30% to 80%
