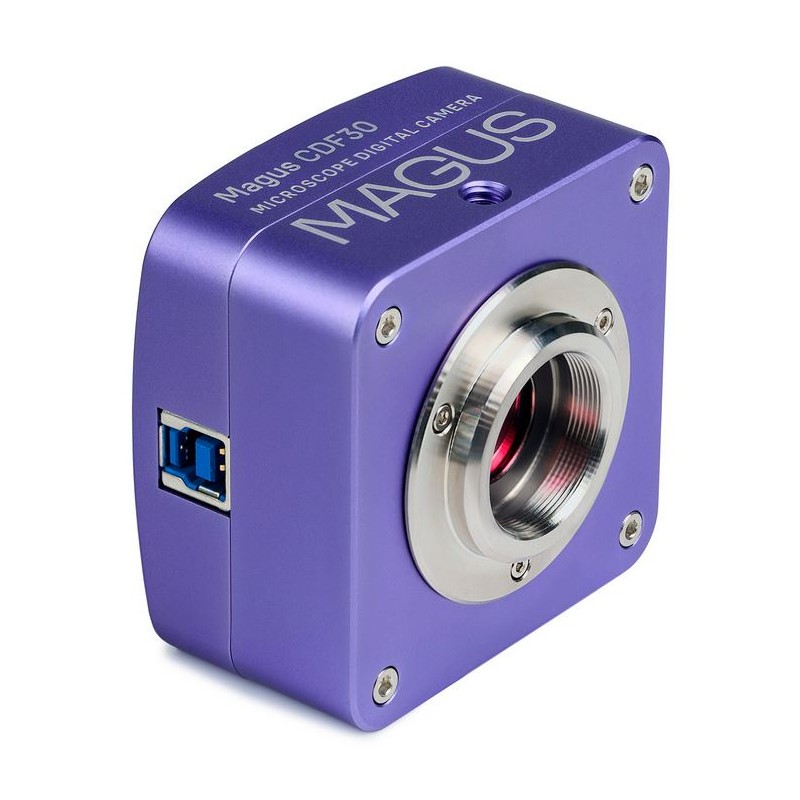

MAGUS CDF30 Digital Camera USB 3.0, 8.3MP, 1/1.2'', color (83197)

Video eyepiece equipped with an 8.3MP SONY Exmor digital sensor. The back-illumination technology in the sensor enhances light sensitivity and allows the camera to capture bright, clear images even in low-light environments. This camera is suitable for both darkfield and brightfield microscopy using objectives with 4x, 10x, and 20x magnification, and can also be used with stereomicroscopes. It connects to a computer through a USB3.0 port, ensuring fast data transfer at speeds up to 5Gbps and smooth image display on a monitor.

The MAGUS CDF30 camera can be mounted in either the trinocular tube or the eyepiece tube of a microscope. For the best, distortion-free field of view, use an adapter with a magnification between 0.65x and 0.9x. Installing the camera in the eyepiece tube requires both the adapter and a ring that matches the tube’s diameter.

Images are displayed on the computer screen at a maximum resolution of 3840x2160 pixels, with a frame rate of 45 frames per second. At a lower resolution of 1920x1080 pixels, the frame rate increases to 70 frames per second. This ensures nearly seamless frame transitions, with no delays—ideal for studying and presenting moving specimens. Photos and videos can be recorded and saved in multiple formats.

To use the MAGUS CDF30 digital camera, install the included drivers and MAGUS View software from the provided CD onto your computer. The software requires calibration for each objective, which should be performed using a calibration slide (not included in the kit).

Key features:

• SONY Exmor backlit color CMOS sensor with high light sensitivity

• Supports both darkfield and brightfield techniques with 4x, 10x, and 20x objectives

• USB3.0 interface for computer connection, data transfer speed up to 5Gbps

• Image output in ultra-high 4K resolution (3840x2160 pixels at 45fps) or Full HD (1920x1080 pixels at 70fps)

• Drivers and image processing software included

• Can be installed in either the trinocular tube or eyepiece tube of a microscope

The kit includes:

• Digital camera

• USB cable

• Installation CD with drivers and software

• User manual and warranty card

Technical Specifications

Product ID: 83197
Brand: MAGUS
Warranty: 5 years
EAN: 5905555019192
Package size (LxWxH): 15 x 15 x 10 cm
Shipping weight: 0.6 kg
Sensor: SONY Exmor CMOS
Color Output: Color
Megapixels: 8.3
Maximum resolution: 3840 x 2160 pixels
Sensor size: 1/1.2'' (11.14 x 6.26 mm)
Pixel size: 2.9 x 2.9 μm
Light sensitivity: 5970mV/lux/s
Signal/noise ratio: 0.13mV at 1/30s
Exposure time: 0.02 ms to 15 s
Video recording: Supported
Frame rate: 45 fps at 3840x2160, 70 fps at 1920x1080
Installation: Trinocular tube or eyepiece tube (with appropriate adapters and rings)
Image formats: JPG, BMP, PNG, TIF
Video formats: WMV, AVI, H.264 (Windows 8 and newer), H.265 (Windows 10 and newer)
Spectral range: 380–650 nm (with built-in IR filter)
Shutter type: Electronic rolling shutter
White balance: Manual or automatic
Exposure control: Manual or automatic
Software features: Image size, brightness, exposure time
Data output: USB 3.0, 5Gb/s
System requirements: Windows 8/10/11 (32- and 64-bit), Mac OS X, Linux, Intel Core 2 or higher (up to 2.8GHz), minimum 2GB RAM, USB 3.0 port, CD-ROM, 17-inch or larger display
Software: MAGUS View
Mount type: C-mount
Body: Solid aluminum
Power supply: 5V DC from computer USB port
Operating temperature: -10°C to +50°C
Operating humidity: 30% to 80%
