Berlebach 3-way-panheads 3D-Super Special 3/8 (85557)

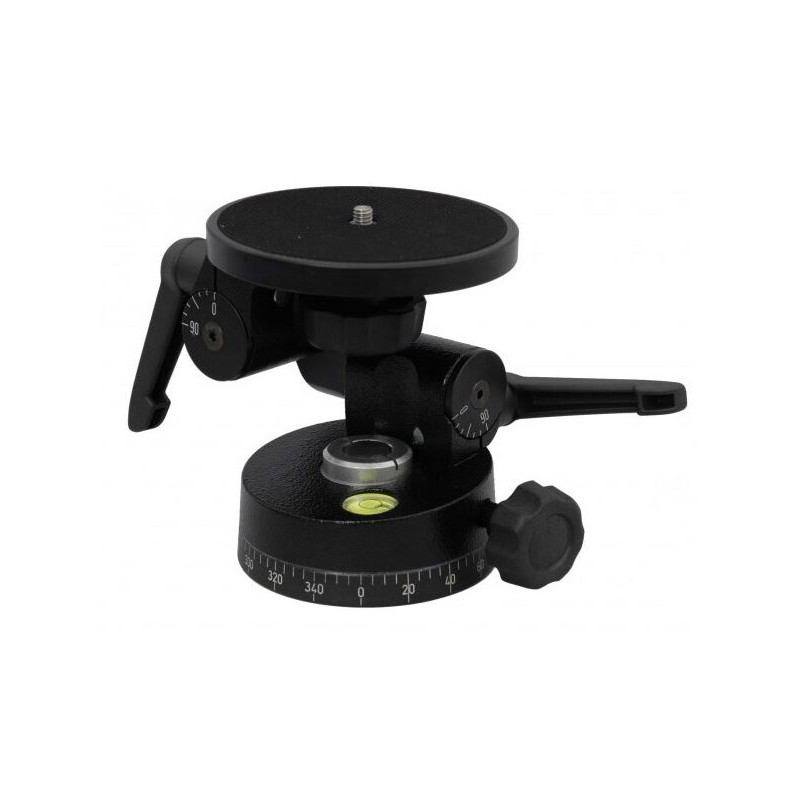

Berlebach 3-Way Panhead 3D-Super Special 3/8

• High-precision tripod head for three-dimensional pan and tilt operation

• Can be controlled from the front or rear, suitable for both right- and left-handed users

• Each axis—horizontal, vertical, and diagonal—can be released and locked individually

• Camera support plate: 105 x 80 mm

• Camera mount thread: 1/4", or 3/8" optional

• Base thread: 3/8"

• Load capacity: 12 kg

• Weight: 1.35 kg (2.98 lb)

This model has the same sturdy design as the Berlebach 3D-Super, but comes without a swivel arm and is equipped with a large camera support plate (diameter 100 mm).

Specifications

Type:
3-way panhead

Load Capacity:
12 kg

Thread for Camera Mounting:
3/8"

Connector Thread on Tripod Head:
3/8"

Inclination Range:
-40° to +90°

Bending Range:
360°

Number of Levels:
1

Special Features:

• Tilt lock: Yes

• Bending clamp: Yes

• Single-handed operation: Not available

• Quick-release plate: No

• Panorama scale: Yes

General Information:

• Weight: 1.2 kg

• Series: UNI
