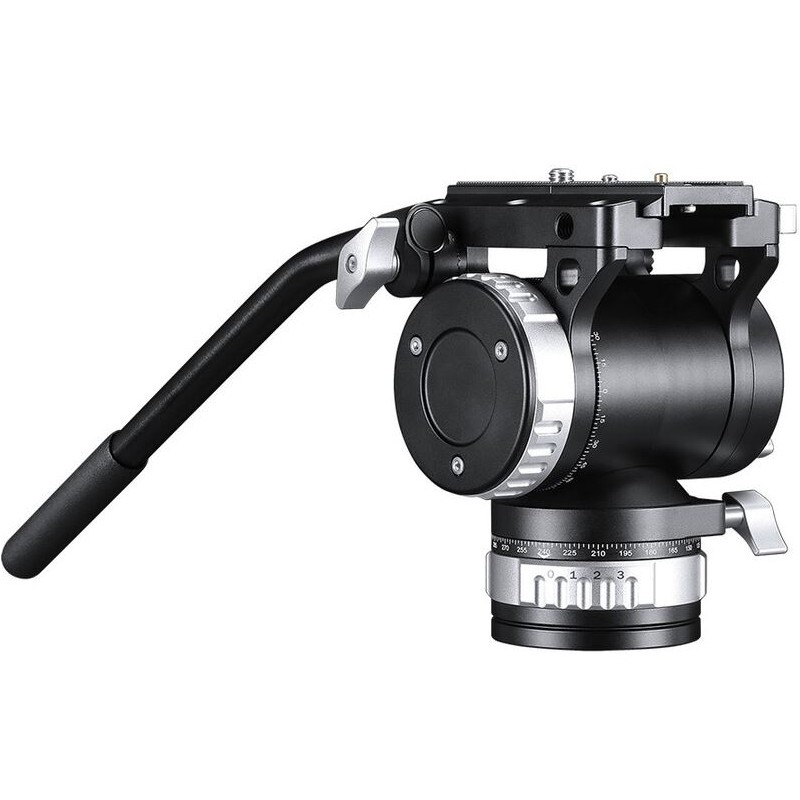

Leofoto Video tilt head BV-30M (76072)

The Leofoto BV-30M is part of the BV-30 series, designed as top-tier video tilt heads for professional video equipment or heavy camera and lens setups. This video head features fluid damping on both horizontal and vertical axes and includes a 3-stage adjustable and switchable counterweight spring. This mechanism helps prevent the tripod head from tilting forward or backward unexpectedly and allows the pan resistance to be matched to the weight of your equipment. The long guide arm can be attached to either side of the head and locked at any angle with the interlocking system.

The flat base makes this tripod head compatible with all high-quality tripods. The BV-30M also works with Manfrotto quick release plates.

Leofoto constructs all metal parts from high-quality 6061-T6 aluminium alloy, enhanced with magnesium and silicon for strength and durability. This corrosion-resistant material has a yield strength similar to structural steel. All components are CNC-milled from solid material, providing much greater stability than cast parts. Leofoto maintains strict quality standards.

Product images may include optional accessories or show the head used with other items.

Specifications

Capacity
Type: 2-way tilt/video head
Load capacity: 20 kg
Thread for camera mounting: 1/4" and 3/8"
Connector thread on tripod head: 3/8"
Inclination range: +/- 90°
Bending range: 360°
Number of levels: 1
Friction adjustment: Horizontal and vertical
Clamp: Manfrotto-style
Material: Aluminium
Area of application: Video

Special Features
Tilt lock: Yes
Bending clamp: Yes
Single-handed operation: No
Quick-release plate: Yes
Panorama scale: Yes

General
Colour: Black/Silver
Height: 15.3 cm
Weight: 2.18 kg
Series: Video Head
Diameter: 7.6 cm
