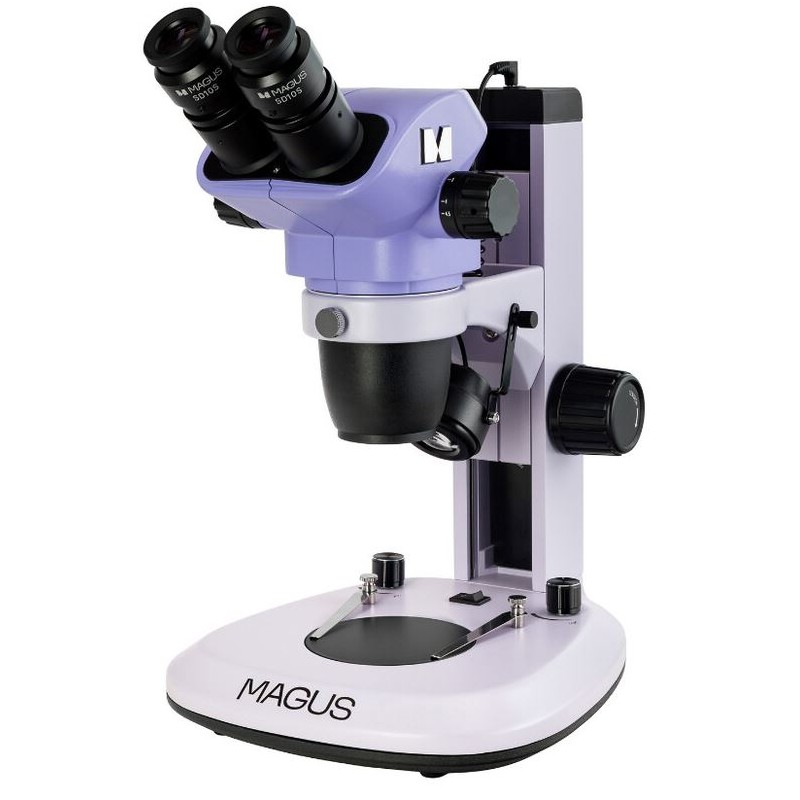

MAGUS Stereo microscope 7B 6.7x-45x bino Greenough 3W LED (85491)

A stereomicroscope is an essential instrument for the detailed examination of three-dimensional samples, providing a clear view of an object’s structure and surface features. The MAGUS Stereo microscope 7B uses the Greenough optical system, known for its large depth of field and three-dimensional imaging thanks to a 15° stereoscopic angle. This model supports both transmitted and reflected light, allowing you to work with transparent and opaque objects. The microscope is ideal for tasks that require precise manipulation and spatial orientation, such as restoration, assembly, soldering, jewelry work, and quality control.

The head features two eyepiece tubes and rotates 360°, so it can be fixed at any desired position for comfortable observation. The microscope comes with two 10x eyepieces, each with a 22mm field of view and diopter adjustment. Eyeglass wearers will find the eye relief convenient. Magnification can be adjusted from 6.7x to 45x without losing focus, and the upright, uninverted image makes handling objects straightforward. Additional magnification or changes to the field of view and working distance can be achieved with optional auxiliary lenses.

Focusing is coarse only, with two knobs located on either side of the stand. The stage includes a transparent plate for transmitted light, providing even illumination, and a black-and-white plate for contrast with opaque objects. The built-in 3W LED illuminators for transmitted and reflected light offer long-lasting, efficient lighting with a 50,000-hour lifespan. A variety of additional accessories can be purchased separately, including eyepieces, auxiliary lenses, digital cameras, calibration slides, darkfield condensers, polarization devices, and different types of illuminators and stands.

Key features:

• Stereomicroscope with Greenough optical design and 15° stereoscopic angle

• Equipped with both transmitted and reflected light for transparent and opaque samples

• Supports polarized light and darkfield techniques (with optional accessories)

• Binocular head rotates 360° and can be fixed at any position

• Magnification from 6.7x to 45x with upright, spatially accurate imaging

• Working area from 105 to 177 mm

• Coarse focusing mechanism with dual knobs

Kit includes:

• Base with built-in transmitted light source, power supply, and stand with focusing mechanism

• Microscope head with binocular objective

• Two eyepieces (WF 10x/22mm), long eye relief and diopter adjustment

• Black-and-white stage plate

• Transparent stage plate

• Reflected light oblique illuminator

• AC power cord

• Dust cover

• User manual and warranty card

Specifications:
Optics:

• Lighting: Incident light and transmitted light

• Lamp type: 3W LED

• Eyepieces: 10x (WF 10x/22mm)

• Magnification: 6.7x to 45x

• Optical system: Greenough

Mechanics:

• Construction: Binocular

• Working distance: 105 mm

• Viewing posture: 45°

• Focusing: Coarse movement

• Pupillary distance: 54–75 mm

• Eyepiece tube diameter: 30 mm

• Microscope stage dimensions: 95 mm

Special features:

• Dust cover bag: Yes

General:

• Weight: 4600 g

• Height: 340 mm

Field of application:

• Hobby: Yes

• Education: Yes

• Parasite analysis: Yes

• Maker: Yes

• Mineralogy: Yes

• Naturalist: Yes
