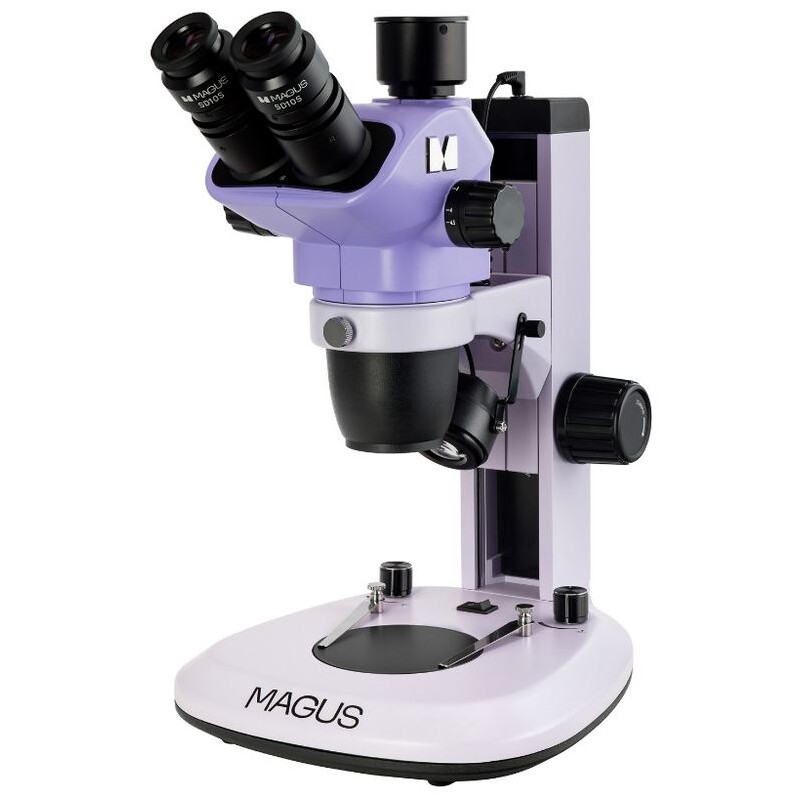

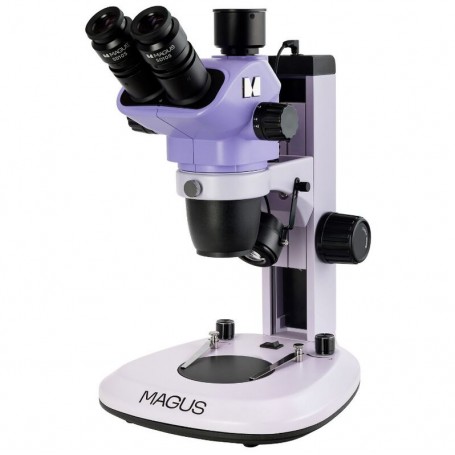

MAGUS Stereo microscope 7T 6.7x-45x trino Greenough 3W LED (85493)

A stereomicroscope is essential for examining the fine details and three-dimensional structure of solid samples. The MAGUS Stereo microscope 7T uses the Greenough optical system, which provides a wide depth of field and a three-dimensional image thanks to a 15° stereoscopic angle. It supports both transmitted and reflected light, making it suitable for both transparent and opaque objects. The microscope is widely used in fields such as restoration, assembly, soldering, jewelry making, and quality control, as it allows precise object manipulation within a generous working area of 105 to 177 mm.

The trinocular head allows for the connection of a digital camera in addition to binocular observation. The head can rotate 360° and be fixed at any position for comfort and flexibility. Two 10x eyepieces with a 22 mm field of view are included, each with diopter adjustment and long eye relief for eyeglass wearers. Magnification ranges from 6.7x to 45x without losing focus or inverting the image, which is convenient when handling delicate samples. Additional auxiliary objective lenses are available to adjust magnification, field of view, and working distance.

The microscope uses coarse focusing, with dual knobs on both sides of the stand, and adjustable travel stiffness. The stage comes with two plates: a transparent one for transmitted light (offering even, soft illumination), and a black-and-white plate to enhance contrast for opaque samples. Both the transmitted and reflected light systems use 3W LEDs with a 50,000-hour lifespan and adjustable brightness.

Numerous accessories can be purchased separately, including eyepieces, auxiliary lenses, digital cameras, calibration slides, darkfield condensers, polarizers, and various illuminators and stands. This makes the microscope highly adaptable for different research and quality control needs.

Key features:

• Greenough optical design with a 15° stereoscopic angle

• Transmitted and reflected light illuminators for transparent and opaque objects

• Compatible with polarized light and darkfield observation (optional accessories required)

• Trinocular head can rotate 360° and be fixed in any position

• Magnification range of 6.7–45x with upright, non-inverted imaging

• Working area from 105 to 177 mm

• Coarse focusing mechanism with two knobs

Kit includes:

• Base with built-in transmitted light source and power supply, stand with focusing mechanism

• Microscope head with trinocular objective

• Two eyepieces (WF 10x/22 mm) with long eye relief and diopter adjustment

• Black-and-white stage plate

• Transparent stage plate

• Reflected light oblique illuminator

• AC power cord

• Dust cover

• User manual and warranty card

Specifications:
Optics:

• Lighting: Incident light and transmitted light

• Lamp type: 3W LED

• Eyepieces: 10x (WF 10x/22 mm)

• Magnification: 6.7x to 45x

• Optical system: Greenough

Capacity:

• Transmitted light: 3W LED

• Incident light: 3W LED

• Brightness control: Yes

• Power supply: 115–230 V (power pack)

• Phase contrast: No

• Polarization: No

Mechanics:

• Build type: Trinocular

• Working distance: 105 mm

• Viewing posture: 45°

• Focusing: Coarse movement

• Pupillary distance: 54–75 mm

• Eyepiece tube diameter: 30 mm

• Microscope stage dimensions: 95 mm

Special features:

• Dust cover bag: Yes

General:

• Weight: 4600 g

• Height: 340 mm

Field of application:

• Hobby: Yes

• Education: Yes

• Parasite analysis: Yes

• Maker: Yes

• Mineralogy: Yes

• Naturalist: Yes
