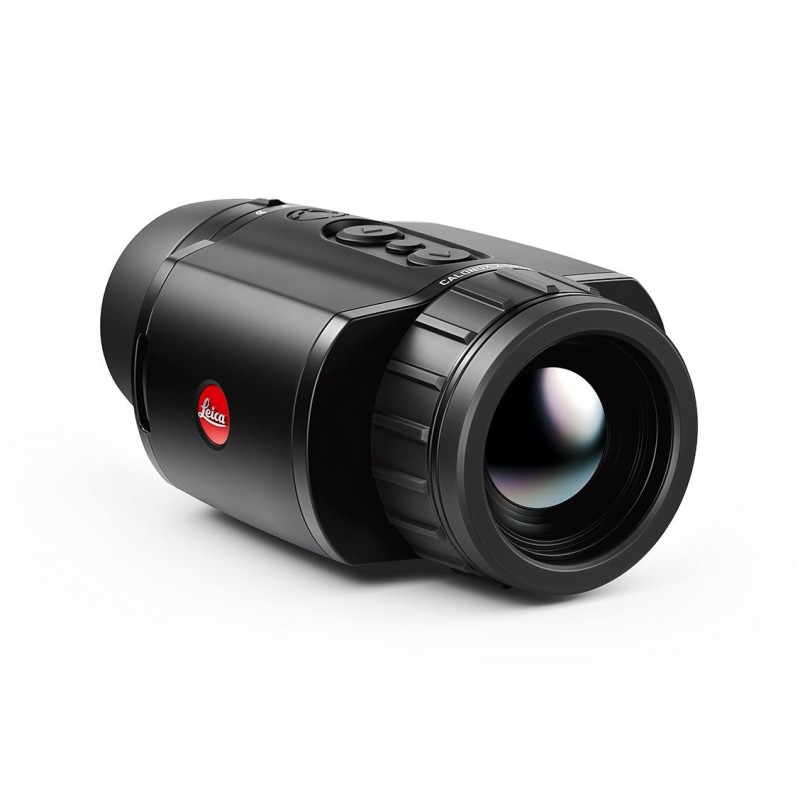

Leica Calonox 2 Sight Thermal imaging (50511)

Leica Calonox 2 Sight (50511)

The Leica Calonox 2 Sight thermal sighting camera sets a new benchmark in both design and functionality. Entirely designed and manufactured in Germany, it features a compact, ergonomic shape and intuitive controls, making it easy to switch between day and night modes. The advanced European sensor from LYNRED, combined with Leica’s image processing software (Leica Image Optimization – LIO™), delivers images with exceptional sharpness, contrast, and detail. The Calonox 2 Sight does not require individual rifle calibration and is ready for immediate use, making it easy to switch between rifles.

To mount the Calonox 2 Sight to a rifle scope, both a suitable Rusan adapter for your specific scope and the Adapter Ring for Calonox 2 M43-M52x0.75 are needed.

Essentials

• Designed and made in Germany

• Lightweight and compact construction

• No rifle calibration required; ready for use out of the box

• Wide field of view and highly detailed image for optimal comfort

• Extremely simple operation with a few smart buttons

• Ready for use within seconds after switching on

• Adapter mount with M52 x 0.75 thread

• Battery life up to 10 hours

• Compact setup possible, for example, with the Leica Fortis 1.8-12 x 42 i riflescope for night hunting

• Dual-use capability: can be used as both a sighting and observation device

• Adapter mounting with M43 x 0.75 thread

Included: carrying bag, strap, charging cable, cleaning cloth, flip-cap cover, and user manual.

Technical Information

• Sensor: 640 × 480 pixels, 12 µm (VOx)

• Thermal sensitivity (NETD): < 40 mK

• Display: OLED, 1920 × 1080 pixels, 0.49" diagonal, 0.35" active area

• Refresh rate: 60 Hz

• Lens: 42 mm

• Optical magnification: 1×

• Field of view: 10.3° × 7.7° (18 × 13.5 m at 100 m)

• Detection range: up to 2,210 m

• Recognition range: up to 770 m

• Identification range: up to 390 m

• Rangefinder: No

• Video/photo recording: Yes

• Recording resolution: 640 × 480 pixels

• Connectivity: Wi-Fi (2.4 GHz), Bluetooth, USB-C

• Internal memory: 32 GB

• Power supply: built-in battery

• Battery life: up to 6 hours 45 minutes

• Charging: USB-C (AC adapter, power bank, or car)

• Waterproof: IP67, nitrogen-filled

• Operating temperature: -20°C to +50°C

• Charging temperature: +10°C to +30°C

• Weight: approx. 620 g (without eyecup), approx. 653 g (with eyecup)

• Dimensions: 139 × 89 × 61.5 mm

• Adapter thread: M43 × 0.75

• Tripod thread: DIN ¼”, M4

• Housing material: silicone protective coating
