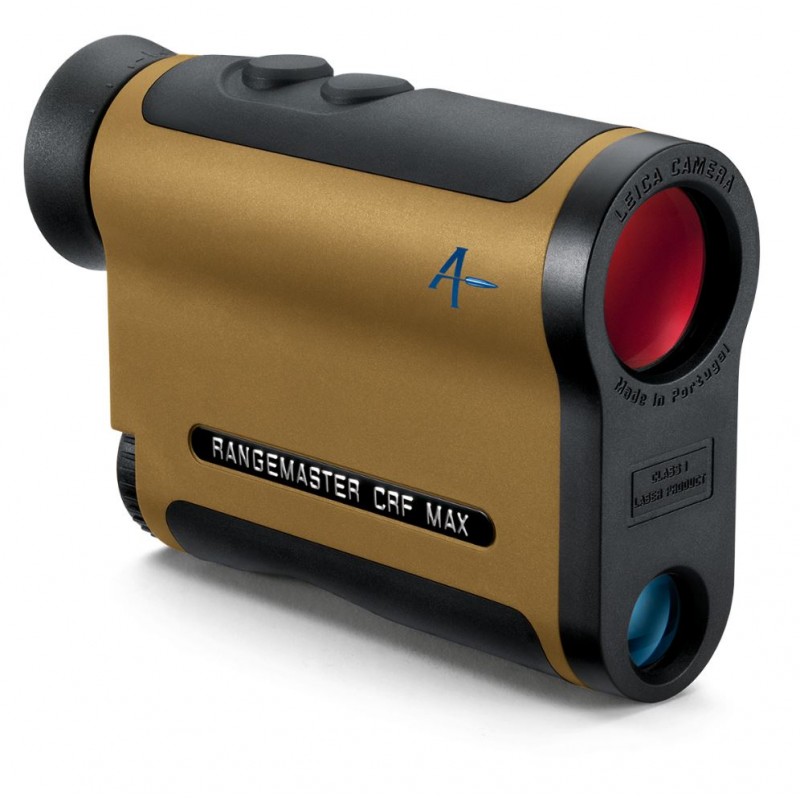

Leica Rangemaster CRF Max rangefinder with Applied Ballistic (40549)
Designed for hunters and precision shooters who demand maximum performance in a compact format, the Leica Rangemaster CRF MAX sets new benchmarks. It combines advanced technology with outstanding optical quality in a rugged, weatherproof body built to withstand the harshest conditions. The innovative Active Matrix MicroLED display provides unmatched brightness and customizable settings, while the integrated Applied Ballistics Elite® software with Shot Probability Analysis delivers real-time ballistic solutions.
1079.11 CHF net price (non-EU countries)
Anatolii Livashevskyi
Product Manager /
+48721808900 +48721808900
+48721808900
[email protected]
Description
The ultimate compact rangefinder with cutting-edge technology.
Designed for hunters and precision shooters who demand maximum performance in a compact format, the Leica Rangemaster CRF MAX sets new benchmarks. It combines advanced technology with outstanding optical quality in a rugged, weatherproof body built to withstand the harshest conditions. The innovative Active Matrix MicroLED display provides unmatched brightness and customizable settings, while the integrated Applied Ballistics Elite® software with Shot Probability Analysis delivers real-time ballistic solutions.
Key Features
-
Brightest and fully configurable Active Matrix MicroLED display
-
Integrated Applied Ballistics Elite® software with Shot Probability Analysis
-
Three intelligent target modes: First, Best, and Last for reliable rangefinding
-
Exceptional optical quality with 7x zoom for maximum detail
-
Fast and highly precise eye-safe laser technology up to 3,700 yards
-
Bluetooth® connectivity with Garmin®, Kestrel®, GPS apps, and the Leica Ballistics app
Scope of delivery: Cordura case, neoprene strap, battery
Specifications
-
Designation: Leica Rangemaster CRF MAX
-
Device type: Rangefinder
-
Order number: 40 549 (Flat Dark Earth)
Optics
-
Magnification: 7x
-
Front lens diameter: 24 mm
-
Exit pupil: 3.4 mm
-
Field of view at 1,000 yds/m: 345 ft / 115 m
-
Eye relief: 15 mm
-
Objective angle of view: 6.6°
-
Close focus distance: approx. 16 ft / 10 m
-
Diopter adjustment: ± 3.5 dpt
Distance Measurement
-
Range: 10 to approx. 3,700 yds / 3,400 m
-
Equivalent horizontal range (EHR): 10 to approx. 3,700 yds / 3,400 m
-
Applied Ballistics Elite® correction output: up to 3,700 yds / 3,400 m
-
Accuracy: ±0.5 yds (10–219 yds), ±1.0 yds (219–1,093 yds), ±0.15% beyond 1,093 yds
-
Measuring time: max. 0.3 sec (1.2 sec in extended range mode)
-
Modes: scan / single measurement
-
Target modes: First, Last, Best
-
Switchable units: meters/yards
Ballistics and Connectivity
-
Full ballistic functions with wind correction
-
EHR, unit correction, click correction, holdover, and Shot Probability Analysis outputs
-
Applied Ballistics Elite® on-board
-
Bluetooth® interface for connection to Leica Ballistics app
-
Supports custom ballistic profiles
-
Compatible with BaseMap®, Kestrel®, Garmin®
-
GPS guide LPTTM (Leica ProTrack)
Display and Construction
-
Active Matrix MicroLED display
-
Eyeglass-friendly eyepiece with turn-down rubber eyecup
-
Roof prism system with phase-correction coating P40
-
Lens coatings: HDC® and AquaDura®
-
Eye-safe invisible laser (EN and FDA class 1)
-
Laser beam divergence: 1.2 x 0.96 mrad
Sensors
-
Barometric pressure, temperature, inclination, and compass
Power and Durability
-
Battery: 1 x 3V Lithium CR2
-
Battery life: approx. 1,700 measurements at 68°F / 20°C (with Bluetooth® off)
-
Waterproof to 3.2 ft / 1 m
-
Housing: glass fiber reinforced plastic
-
Dimensions (W x H x D): 4.4 x 3.1 x 1.4 in / 113 x 78 x 35 mm
-
Weight: approx. 7.0 oz / 199 g (with battery)
Data sheet
