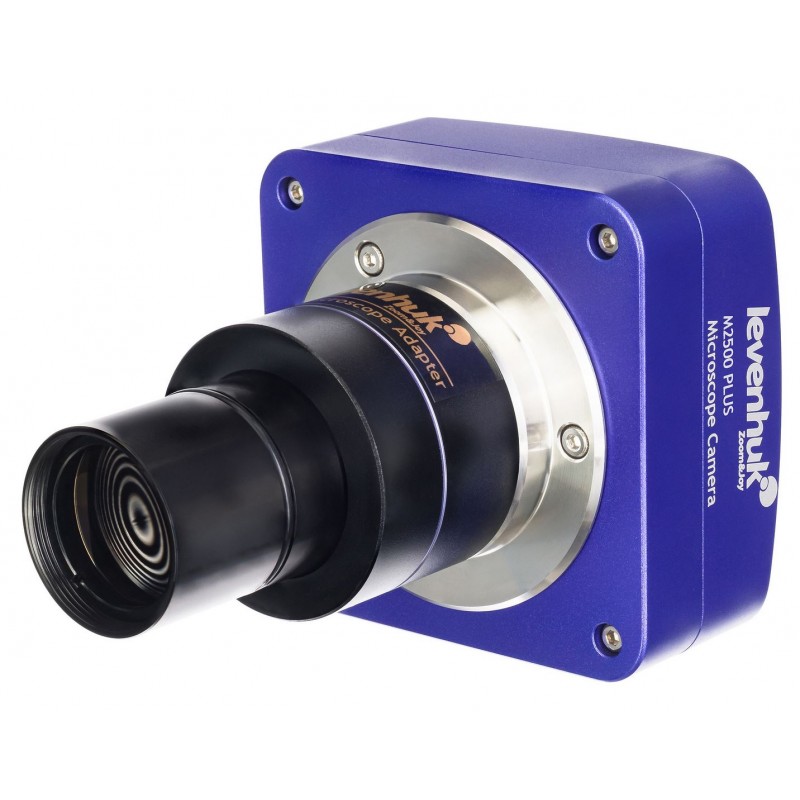

Levenhuk M2500 PLUS Microscope Digital Camera (86165)
The Levenhuk M2500 PLUS digital camera is designed for capturing high-resolution images with microscopes using low-magnification objectives of 4x and 10x. Even at low magnification, its 25MP sensor delivers exceptional detail, producing full-color images with a maximum resolution of 4928x4928 pixels. This camera is particularly well-suited for brightfield research. One of its main advantages is the USB 3.0 interface, which transfers data up to ten times faster than USB 2.0.
958.59 $ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager /
+48721808900 +48721808900
+48721808900
[email protected]
Description
The Levenhuk M2500 PLUS digital camera is designed for capturing high-resolution images with microscopes using low-magnification objectives of 4x and 10x. Even at low magnification, its 25MP sensor delivers exceptional detail, producing full-color images with a maximum resolution of 4928x4928 pixels. This camera is particularly well-suited for brightfield research.
One of its main advantages is the USB 3.0 interface, which transfers data up to ten times faster than USB 2.0. This makes the camera ideal for live streaming, presentations, and recording fast-moving objects. The frame rate varies with resolution and can reach up to 100 frames per second.
The camera includes software for adjusting settings and processing captured images. The software works with Windows, macOS, and Linux. If you need help with installation, you can contact technical support—just have your operating system and version information ready (for Linux: platform and kernel version).
The camera attaches to a microscope using a C-mount adapter, and the included adapters allow it to fit eyepiece tubes of different diameters.
Key Features
-
25MP, 1/2.3" sensor optimized for objectives up to 10x magnification
-
Color images up to 4928x4928 pixels and video recording up to 100FPS
-
USB 3.0 high-speed data transfer for research and presentations
-
Includes image processing software compatible with Windows, macOS, and Linux
-
Comes with adapters for mounting in eyepiece tubes of different diameters
Included in the Kit
-
Microscope digital camera
-
0.5x C-mount adapter (23.2 mm)
-
Two adapter rings for eyepiece tubes (23.2–30 mm and 23.2–30.5 mm)
-
USB 3.0 cable for connection and power
-
USB flash drive with drivers and software
-
User manual and warranty card
Specifications
-
Product ID: 86165
-
Brand: Levenhuk, Inc., USA
-
Warranty: Lifetime
-
EAN: 5905555026947
-
Package size: 14x15x10 cm
-
Shipping weight: 0.68 kg
-
Color/monochrome: Color
-
Megapixels: 25
-
Maximum resolution: 4928x4928
-
Sensor size: 1/2.3" (5.519x5.519 mm)
-
Pixel size: 1.12x1.12 µm
-
Light sensitivity: 96.3 mV at 1/30s
-
Exposure time: 0.013 ms – 15 ms
-
Video recording: Yes
-
Frame rate: 100 fps at 1648x1648, 12 fps at 4928x4928, 46 fps at 2464x2464
-
ADC digit capacity: 8/12 bit (selectable)
-
Binning: 1x1, 2x2, 3x3
-
Installation: Microscope eyepiece tube (replaces an eyepiece) or trinocular tube
-
Image formats: *.jpg, *.bmp, *.png, *.tif
-
Video formats: *.wmv, *.avi, *.h264 (Windows 8 and later), *.h265 (Windows 10 and later)
-
Spectral range: 380–650 nm (IR-filtered)
-
Shutter type: ERS (electronic rolling shutter)
-
White balance: Automatic, manual
-
Exposure control: Automatic, manual
-
Software features: Brightness, exposure time, image size
-
Output: 5 Gbps, USB 3.0
-
System requirements: Windows 8/10/11 (32-bit and 64-bit), Mac OS X, Linux, 2.8 GHz Intel Core 2 or higher, minimum 2GB RAM, USB 3.0 port, 17" monitor or larger
-
Software: Levenhuk, USB 3.0 driver
-
Mount type: C-mount
-
C-mount adapter magnification: 0.5x
-
Body: Aluminum alloy
-
Power supply: 5V via USB 3.0 cable
-
Operating temperature: -10°C to +50°C
-
Operating humidity: 30–80%
