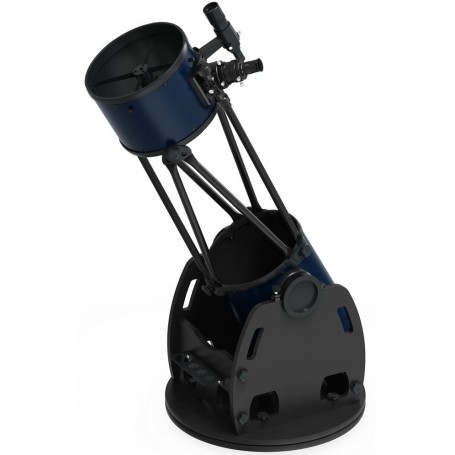

Levenhuk New Skyline PRO 12" (300/1525) Retractable Dobsonian Telescope (86289)

Levenhuk New Skyline PRO 12" (300/1525) Retractable Dobsonian Telescope (86289)

The Levenhuk New Skyline PRO 12" Dobsonian is a high-performance instrument designed for detailed observation of the Moon, planets, and deep-sky objects such as nebulae, galaxies, and globular clusters.

With a 304 mm aperture and a 1525 mm focal length, it delivers impressive light-gathering power and resolution. The optical system is built with BK-7 glass elements, a material valued for its uniform structure and durability. Both the primary and secondary mirrors feature aluminum coatings with 92–95% reflectivity, enhancing brightness and contrast. The parabolic primary mirror eliminates spherical aberration by focusing all incoming light precisely to a single point, ensuring sharp images across the entire field of view. As a Newtonian reflector, the system is free from chromatic aberration, producing crisp images with accurate color representation.

Portable Open-Truss Design

The telescope uses a fixed open-truss tube structure for improved portability. It assembles quickly from solid components and occupies minimal storage space when disassembled. A protective fabric shroud is included to shield the optical components from dust and wind during observation.

The optical tube assembly weighs 20.5 kg and is mounted on a robust Dobsonian base weighing 16.5 kg. Constructed from processed wood with a durable black finish, the mount provides stable, intuitive manual control and long-lasting reliability.

Complete Accessory Package

The telescope comes equipped with everything required to begin observing immediately. Included are an 8×40 optical finderscope, a primary mirror cooling fan for thermal stabilization, and two Plössl eyepieces (10 mm and 25 mm, 1.25"). The cooling fan operates on eight AA batteries (not included).

For optimal image quality, it is recommended to allow the telescope 1.5 to 3 hours to acclimate to outdoor temperatures, particularly when the cooling fan is not in use. The instrument is designed to operate in temperatures ranging from −5°C to +35°C.

Key Features

• Open-truss optical tube with protective shroud; OTA weight 20.5 kg

• Stable Dobsonian mount made of processed wood; mount weight 16.5 kg

• BK-7 glass optics with 92–95% aluminum reflectivity

• Parabolic primary mirror for sharp, distortion-free images

• Free from spherical and chromatic aberration

• Includes eyepieces, 8×40 finderscope, cooling fan, and protective shroud

• Cooling fan powered by 8 AA batteries

Included in the Package

• Optical tube assembly

• 10 mm Plössl eyepiece (1.25")

• 25 mm Plössl eyepiece (1.25")

• 8×40 optical finderscope

• Primary mirror cooling fan

• Light shroud

• Dobsonian mount

• User manual and warranty slip

Specifications

• Product ID: 86289

• Brand: Levenhuk, Inc., USA

• Warranty: Lifetime

• EAN: 5905555027586

• Package size: 96 × 76 × 53 cm

• Shipping weight: 48.8 kg

Optical System

• Optical design: Reflector

• Optical scheme: Newtonian

• Optics material: BK-7

• Optics coating: Aluminum, 92–95% reflectivity

• Primary mirror diameter: 304 mm

• Secondary mirror obstruction: 70 mm

• Mirror shape: Parabolic

• Focal length: 1525 mm

• Maximum practical magnification: 600×

• Aperture ratio: f/5

• Resolution threshold: 0.46 arcseconds

• Focusing: Manual

Eyepieces and Focuser

• 10 mm Plössl (153×)

• 25 mm Plössl (61×)

• Eyepiece barrel diameter: 1.25"

• Barlow lens: Not included

• Finder: Optical 8×40

• Focuser: 2" dual-speed rack-and-pinion with 1.25" adapter

Mount and Construction

• Telescope control: Manual

• Mount type: Dobsonian

• Mount material: Wood

• Mount dimensions: 680 × 680 × 606 mm

• Optical tube material: Metal

• Optical tube dimensions: 1427 × 365 mm

• Optical tube weight: 20.5 kg

Operating Conditions and Use

• Operating temperature range: −5°C to +35°C

• User level: Experienced users and professionals

• Assembly difficulty: Easy

• Recommended for observing: Deep-sky objects
