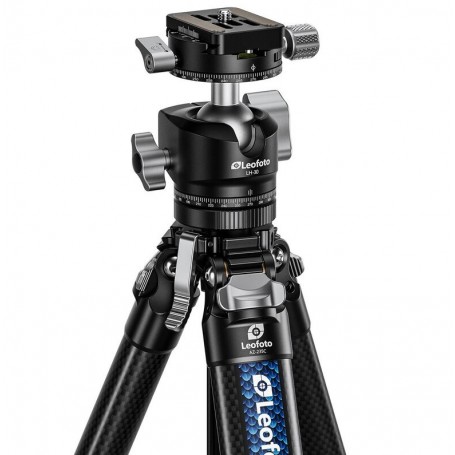

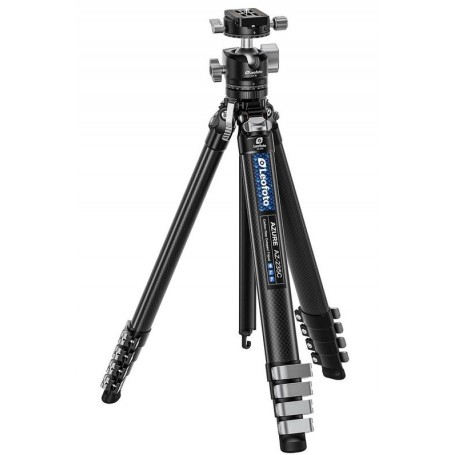

Leofoto Carbon tripod Azure AZ-235C + LH-30R ballhead (86422)

Leofoto Carbon Tripod Azure AZ-235C + LH-30R Ball Head (86422)

Innovative Design with Maximum Functionality

The Azure series from Leofoto combines modern engineering with practical features for photographers who require stability, flexibility, and a compact transport size. Whether used outdoors, in the studio, or for low-angle macro photography, these tripods are designed as versatile all-round tools.

AZ-235C + LH-30R Model Overview

The AZ-235C tripod paired with the robust LH-30R ball head offers an excellent balance between working height and portability. Thanks to its multi-section leg design, it folds down to just 48.6 cm while reaching a maximum height of 161.2 cm.

With a minimum height of 17.1 cm, a load capacity of 10 kg, and a net weight of 1.5 kg, this model is ideal for photographers seeking a stable yet travel-friendly tripod with maximum flexibility.

Key Features of the Azure Series

• Y-shaped center column reduces vibrations and enables a compact folded size

• Oval leg design enhances torsional rigidity and overall stability

• Quick-release clamp levers allow fast and convenient height adjustments, even with gloves

• Integrated spikes under removable rubber feet for secure footing on uneven terrain

• Flexible center column with clamp lever for rapid perspective changes

• Four adjustable leg angle positions for low shooting angles and creative compositions

• Short center column included for macro and ground-level photography

• Reversible center column for overhead and reproduction shots

• 1/4" accessory thread on the tripod shoulder for mounting LED lights, microphones, or monitors

• Stabilization hook for attaching additional weight such as a camera bag

• Integrated ball head with panoramic rotation for smooth 360° movement and precise alignment

Conclusion

The Azure series represents dependable performance, versatile usability, and a thoughtfully engineered design. It is well suited for demanding photo and video professionals who need reliability both on location and in the studio.

100% Carbon Construction

All Leofoto carbon tripod legs are constructed from 10-layer carbon fiber, delivering high stability with low weight and excellent corrosion resistance.

The metal components are made from premium 6061-T6 aluminum alloy enriched with magnesium and silicon. This corrosion-resistant material offers high strength and durability, with yield strength comparable to structural steel. Each part is precision-milled from solid material using advanced CNC technology, ensuring greater stability than cast components.

Technical Specifications

Type: Camera tripod
Design: Tripod
Load Capacity: 10 kg
Maximum Height: 161 cm
Minimum Height: 17.1 cm
Transport Length: 48.6 cm
Ball Diameter: 30 mm
Head Mount Thread: 3/8"
Camera Mount Thread: 1/4"
Clamp System: Arca-Swiss compatible
Material: Carbon fiber
Tripod Head Material: Aluminum
Tilt Range: 90°
Pan Range: 360°
Number of Leg Sections: 4
Leg Lock Type: Clamp lock
Maximum Leg Spread Angle: 82°
Feet Type: Rubber foot and spike combination
Bubble Level: 1
Tilt Lock: Yes
Panorama Scale: Yes
Quick-Release Plate Included: Yes
Tripod Head Included: Ball head
Video Tilt Head: No
Center Column: Yes
Carrying Bag Included: Yes

General Information

Series: Azure
Color: Black
Weight: 1.5 kg
