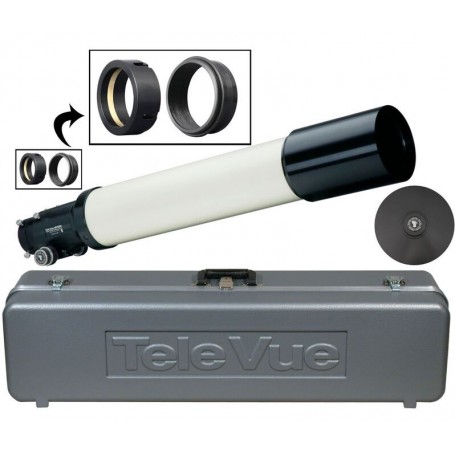

TeleVue Apochromatic refractor AP 127/660 TVNP127is OTA (21649)

TeleVue Apochromatic Refractor AP 127/660 TVNP127is OTA (Model 21649)

The TeleVue AP 127/660 is a world-class four-element apochromatic refractor designed for both high-end visual observation and professional-level astrophotography. Its advanced optical design delivers a flat, virtually color-free field with exceptional sharpness extending to the very edge of the image. With a fast focal ratio of f/5.2 and a wide maximum visual field of 4.4°, this telescope excels in wide-field lunar, planetary, and deep-sky observations. As part of the Imaging System (IS) series, it has been specifically optimized for imaging applications, including a precision focuser ready for motorized fine adjustment.

The optical system uses a quadruplet lens arrangement in two groups, incorporating special glass types to eliminate chromatic aberration. The result is high contrast, excellent color correction, and outstanding performance for both visual observers and astrophotographers.

Optical Specifications
Optical design: Refractor
Construction: Apochromat (quadruplet)
Aperture: 127 mm
Focal length: 660 mm
Focal ratio: f/5.2
Resolving power: 0.91 arcseconds
Limiting magnitude: 12.3
Light-gathering capacity: 330× (compared to the human eye)
Maximum useful magnification: 254×
Tube design: Full tube

Focuser
Type: Crayford
Eyepiece connection: 2.4"
Fine focusing: 1:6 reduction
Designed for compatibility with electronic motorized micro focusers

Mount and Configuration
Mount type: No mount included
GoTo control: No
Configuration: OTA (Optical Tube Assembly only)

Included Accessories
Eyepiece adapter: 2" to 2.4"
Transport case: Included

Series
Imaging System

Areas of Application
Moon and planets: Yes
Nebulae and galaxies: Yes
Nature observation: Yes
Astrophotography: Yes
Solar observation: Not recommended without an appropriate solar filter

Recommended User Level
Beginners: No
Advanced users: Yes
Observatory use: No
