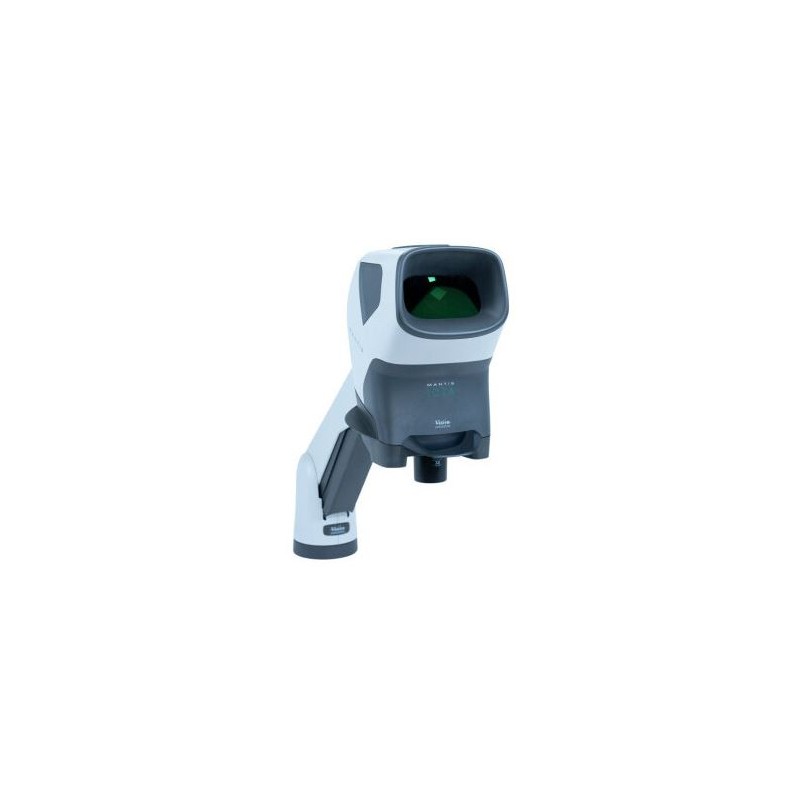

Vision Engineering Stereo microscope MANTIS IOTA with "Verso universal tripod" (without lenses) SMI200 (87221)
The stereo microscope trusted by thousands of customers worldwide for delivering outstanding high-quality images across a wide range of applications in an ergonomic and easy-to-use design. Compact optical stereo microscope without eyepieces, featuring dynamic 3D optics. The versatile Verso stand allows the system to be easily adjusted vertically for optimal positioning during operation.
2475.49 $ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description
Vision Engineering Stereo Microscope MANTIS IOTA with Verso Universal Stand (without lenses) – SMI200 (87221)
The stereo microscope trusted by thousands of customers worldwide for delivering outstanding high-quality images across a wide range of applications in an ergonomic and easy-to-use design.
Key Features
- Large high-quality image without eyepieces
- Ergonomic design for comfortable, fatigue-free viewing
- Integrated digital camera
Mantis IOTA
Compact optical stereo microscope without eyepieces, featuring dynamic 3D optics.
Main Advantages
- Exceptional optical 3D stereo image quality
- Ergonomic working position
- Large working distance
- Magnification range from 3x to 8x
- Quick-change lens system
- Synchronized LED illumination
Mantis IOTA with Verso Universal Stand – SMI200
The versatile Verso stand allows the system to be easily adjusted vertically for optimal positioning during operation.
Dimensions
- Working height: 230 mm
- Reach/projection: 380–505 mm
- Maximum object height: 166 mm
Included Components
- Stereo head MIH001 (without magnifying lenses/objectives) with LED lighting
- Verso arm MTB200A
- Dust cover MTA360
- Power supply unit MTA330
Compatible Lenses for Mantis IOTA
| Magnification | Working Distance | Maximum Field of View | Exit Pupil Diameter |
|---|---|---|---|
| 3x | 104 mm | 37.0 mm | 22.8 mm |
| 4x | 108 mm | 29.0 mm | 23.6 mm |
| 6x | 74 mm | 20.1 mm | 18.0 mm |
| 8x | 61 mm | 15.0 mm | 18.0 mm |
Technical Specifications
Optics
- Magnification: 3x–8x (optional)
- Lighting type: Incident light
- Light source: LED
- Eyepiece: None
Power Supply
- Standard power plug connection
Mechanical Design
- Construction type: Binocular
- Viewing posture: Eyepiece-free design
- Illuminance: 26,000 lx
General Information
- Stand type: Verso stand
- Series: Mantis
- Length: 590–710 mm
- Height: 360–590 mm
- Width: 196 mm
Contrast Method
- Brightfield: Yes
Applications
- Industrial applications
- Metallurgy
- Automotive industry
Supplier Product Number
- SMI200
Data sheet
