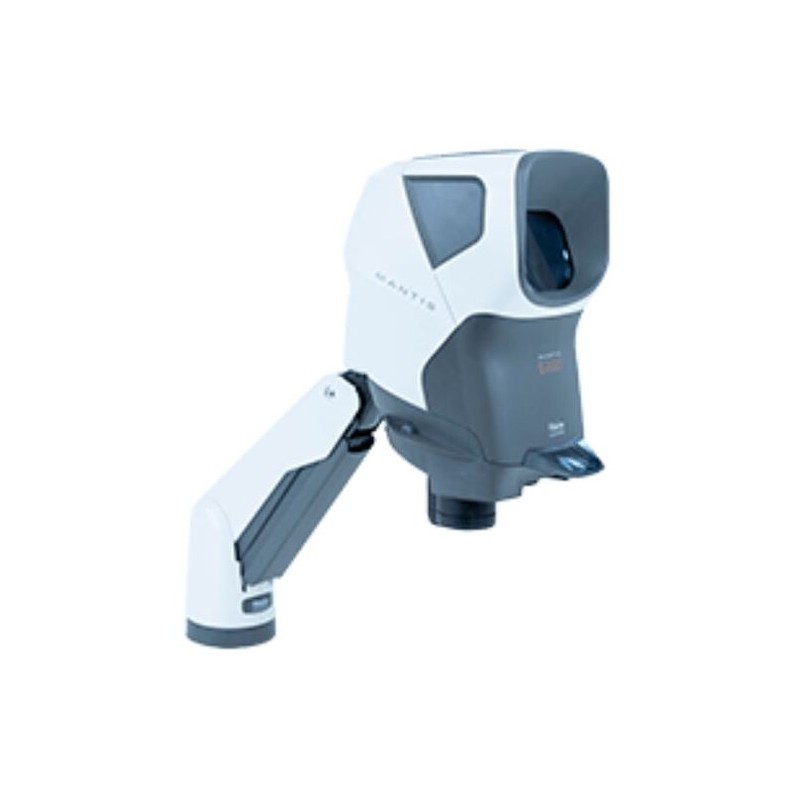

Vision Engineering MANTIS ERGO stereo microscope with "Verso universal stand" (without lenses) SMR200 (81150)
The stereo microscope trusted by thousands of customers worldwide for delivering outstanding high-quality images across a wide range of applications in an ergonomic and easy-to-use design. Eyepiece-free optical stereo microscope with dynamic 3D optics. The versatile Verso stand allows the system to be easily adjusted vertically for optimal positioning during operation.
4772.57 $ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description
Vision Engineering MANTIS ERGO Stereo Microscope with Verso Universal Stand (without lenses) – SMR200 (81150)
The stereo microscope trusted by thousands of customers worldwide for delivering outstanding high-quality images across a wide range of applications in an ergonomic and easy-to-use design.
Key Features
- Large, high-quality image without eyepieces
- Ergonomic design for comfortable, fatigue-free viewing
- Integrated digital camera
Mantis ERGO
Eyepiece-free optical stereo microscope with dynamic 3D optics.
Main Advantages
- Exceptional optical 3D stereo image quality
- Ergonomic working position
- Large working distance
- Magnification range from 3x to 15x
- Triple lens changer
- Dynamic 3D illumination
- Optional white and UV lighting
Mantis ERGO with Verso Universal Stand – SMR200
The versatile Verso stand allows the system to be easily adjusted vertically for optimal positioning during operation.
Dimensions
- Working area height: 230 mm
- Reach/projection: 380–505 mm
- Maximum object height: 166 mm
Included Components
- Stereo head MRH001 (without magnifying lenses/objectives) with LED lighting
- Arm MTB200A
- Dust cover MTA360
- Power supply unit MTA330
Important Note
Please select the required lenses from the available accessories or contact the service department for assistance.
Compatible Lenses for Mantis PIXO & Mantis ERGO
| Objective | Working Distance | Maximum Field of View | Exit Pupil Diameter |
|---|---|---|---|
| 3x | 100 mm | 44.1 mm | 23.5 mm |
| 4x | 100 mm | 35.7 mm | 23.6 mm |
| 6x | 68 mm | 24.2 mm | 22.4 mm |
| 8x | 60 mm | 18.0 mm | 19.4 mm |
| 10x | 54 mm | 14.2 mm | 17.0 mm |
| 15x | 40 mm | 9.1 mm | 12.3 mm |
| 6x SLWD | 114 mm | 22.5 mm | 17.0 mm |
| 8x SLWD | 113 mm | 17.9 mm | 14.4 mm |
Technical Specifications
Optics
- Magnification: 3x–15x (optional)
- Number of objectives: Up to 3
- Lighting type: Incident light
- Light source: LED
- Eyepiece: None
Power Supply
- Standard power plug connection
Mechanical Design
- Construction type: Binocular
- Viewing posture: Eyepiece-free design
- Revolver: 3-position
- Illuminance: 21,000 lx
General Information
- Series: Mantis
- Stand type: Verso stand
- Length: 575–695 mm
- Width: 218 mm
- Height: 429–625 mm
- Weight: 7,400 g
Contrast Method
- Brightfield: Yes
Applications
- Biology
- Industrial applications
- Botany
- Metallurgy
- Dental technology
- Automotive industry
Supplier Product Number
- SMR200
Data sheet
