Hikvision Hikmicro Neos NH25L thermal imaging sight (308101600)

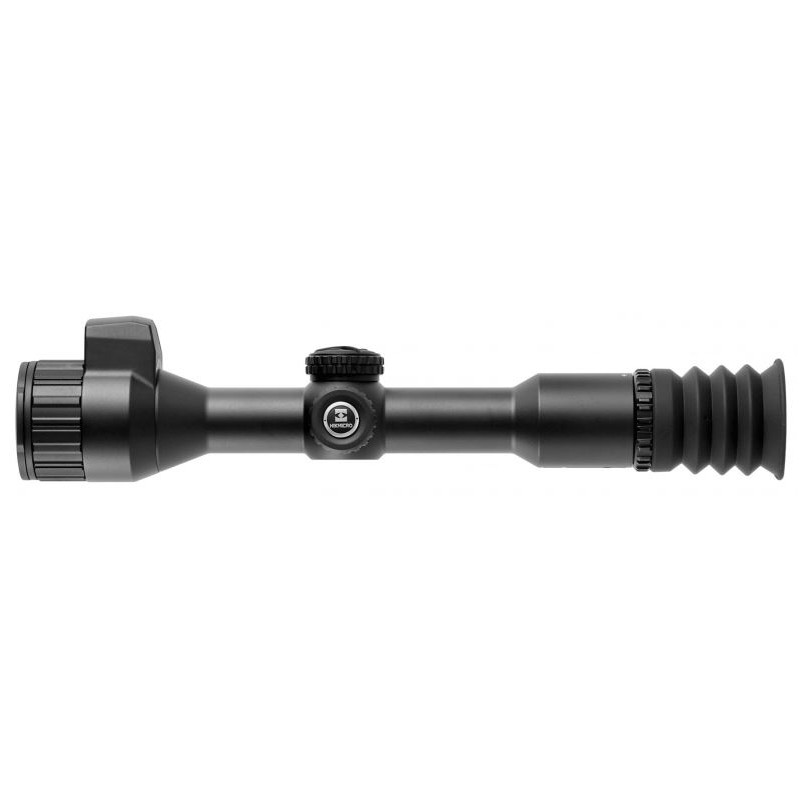

HIKMICRO Neos NH25L Thermal Imaging Rifle Scope with Laser Rangefinder (308101600)

The HIKMICRO Neos NH25L thermal imaging rifle scope with an integrated laser rangefinder and HSIS shutterless imaging system is designed for hunters and shooters who require exceptional performance in challenging field conditions. When game emerges from cover after dark, rapid target identification and confidence in the shot become critical.

The highly sensitive thermal sensor, featuring a NETD value below 18 mK, detects even the smallest temperature differences, enabling faster and more precise identification of animals in darkness, fog, rain, and other adverse weather conditions.

The Neos NH25L combines outstanding image quality with a detection range of up to 1,200 meters. Its distinctive design replicates the appearance of a traditional riflescope, allowing users to retain familiar mounting solutions while benefiting from modern thermal imaging technology. The classic appearance also ensures visual consistency with conventional hunting optics.

The 320 × 240 pixel thermal sensor, supported by the advanced Image Pro 3.0 image processing algorithm, delivers smooth, highly detailed images with excellent contrast. This enhances target recognition and increases observation comfort during extended hunting sessions.

Key Features

• VOx thermal sensor with 320 × 240 pixel resolution.

• NETD thermal sensitivity below 18 mK.

• Detection range up to 1,200 meters.

• Integrated laser rangefinder with a range of up to 1,000 meters.

• Built-in ballistic calculator for improved shooting accuracy.

• HSIS (HIKMICRO Shutterless Image System) for uninterrupted image performance.

• 0.49-inch AMOLED display with excellent contrast and clarity.

• Magnification range from 3.5× to 24.5×.

• Automatic recoil-activated video recording stored on 64 GB internal memory.

• Traditional riflescope-inspired design.

• Anodized aluminum housing resistant to recoil forces up to 1000 G.

• Dual power system using an internal rechargeable battery and replaceable 18650 battery.

Advanced Thermal Imaging Performance

The HIKMICRO Neos NH25L is built around an advanced 320 × 240 pixel VOx sensor with a 12 μm pixel pitch and thermal sensitivity below 18 mK. Combined with the high-quality AMOLED display, it produces exceptionally sharp and detailed thermal images.

The 25 mm F1.0 objective lens provides an effective balance between field of view and target identification capability at medium distances. A manual focus ring allows precise image adjustment to suit changing environmental conditions.

The scope offers a native optical magnification of 3.5×, ideal for medium-range shooting. Digital zoom extends magnification up to 24.5×. The Picture-in-Picture (PiP) function displays a magnified image of the target in a dedicated window while preserving awareness of the surrounding area.

Laser Rangefinder and Ballistic Calculator

Precision is essential during hunting. The integrated laser rangefinder accurately measures distances up to 1,000 meters, while the built-in ballistic calculator assists in determining the correct aiming correction for each shot.

Together, these features allow hunters to react more quickly and shoot with greater confidence and accuracy regardless of field conditions.

User-Friendly Interface and Imaging Technology

The software has been designed for intuitive operation. Large control buttons simplify navigation even when wearing gloves. Users can select from multiple reticle styles to match personal preferences and shooting requirements.

Several color palettes are available to optimize target detection:

• White Hot

• Black Hot

• Red Hot

• Color Fusion

• Green Monochrome

• Red Monochrome

Sync Pro technology and a 50 Hz refresh rate ensure smooth image reproduction with minimal latency, making it easier to track moving game and maintain control during critical moments.

Classic Riflescope Design with Modern Technology

Constructed from durable anodized aluminum, the Neos NH25L closely resembles a traditional hunting riflescope. This familiar form factor makes transitioning from conventional optics straightforward for experienced shooters.

The housing withstands recoil forces up to 1000 G, allowing reliable operation even on rifles chambered in powerful calibers such as 9.3×64 mm.

Its IP67-rated construction provides protection against rain, dust, and harsh environmental conditions, making it suitable for year-round use in demanding hunting environments.

Despite its rugged construction, the scope weighs only 550 grams, helping maintain natural firearm balance and reducing fatigue during prolonged use.

Automatic Recoil-Activated Recording

The HIKMICRO Neos NH25L features automatic video recording triggered by recoil detection. The system records approximately 15 seconds before and 15 seconds after the shot, creating a video clip of up to 30 seconds in length.

Recordings are stored on the built-in 64 GB memory and can be reviewed directly through the scope without connecting to a smartphone. Videos can also be transferred to a mobile device for slow-motion playback and shot analysis.

This functionality allows hunters to verify shot placement, supporting ethical hunting practices and helping reduce unnecessary animal suffering.

Dual Power System

The scope incorporates an intelligent dual-battery system consisting of:

• Internal rechargeable battery.

• Replaceable 18650 battery.

Power is drawn from the removable battery first. Once depleted, the system automatically switches to the internal battery. This enables battery replacement without shutting down the device, ensuring uninterrupted operation.

Battery life can reach up to 9 hours, allowing users to focus on hunting rather than battery management.

Included Accessories

• 18650 rechargeable battery.

• USB-C charging cable.

• Power adapter.

• Microfiber cleaning cloth.

• User manual.

Technical Specifications

• Model: HIKMICRO Neos NH25L

• Supplier Code: 308101600

• EAN: 6974004649456

• Display Type: AMOLED

• Display Size: 0.49"

• Sensor Resolution: 320 × 240 pixels

• Thermal Sensor Type: Uncooled VOx Microbolometer

• Pixel Pitch: 12 μm

• Thermal Sensitivity (NETD): <18 mK

• Objective Lens: 25 mm F1.0

• Refresh Rate: 50 Hz

• Detection Range: 1,200 m

• Laser Rangefinder Range: 1,000 m

• Minimum Measurement Distance: 10 m

• Magnification: 3.5× to 24.5×

• Angular Field of View: 7°

• Linear Field of View at 100 m: 12.2 × 9.3 m

• Exit Pupil Diameter: 8 mm

• Eye Relief: 55 mm

• Diopter Adjustment: ±4

• Minimum Focus Distance: 3 m

• Ballistic Calculator: Yes

• HSIS Technology: Yes

• Image Pro 3.0: Yes

• Picture-in-Picture (PiP): Yes

• Zoom Pro: Yes

• Integrated Laser Rangefinder: Yes

• Adjustable Reticle: Yes

• Color Palettes: White Hot, Black Hot, Red Hot, Color Fusion, Green Monochrome, Red Monochrome

• Internal Memory: 64 GB

• Maximum Operating Time: 9 hours

• Operating Temperature Range: -30°C to +55°C

• Recoil Resistance: 1000 G

• Protection Rating: IP67

• Tube Diameter: 30 mm (1.18")

• Length: 345.6 mm

• Width: 86.1 mm

• Height: 75.8 mm

• Weight: 550 g

Power Supply

• Built-in rechargeable battery.

• One replaceable 18650 battery.

• USB-C charging port.

Manufacturer Warranty

• 3-year manufacturer warranty.
