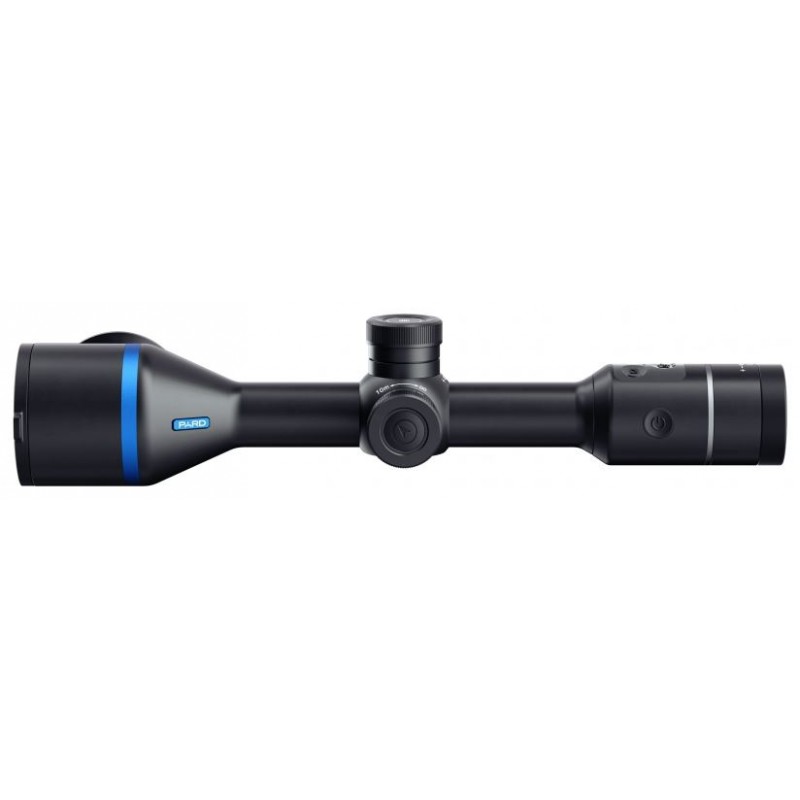

PARD PAE6-35/LRF thermal imaging sight (PAE6-35/LRF)

PARD PAE6-35/LRF Thermal Imaging Sight

The PARD Pantera 640 eX LRF 35 mm is an advanced thermal imaging sight developed for hunters and shooters who require exceptional precision, reliability, and performance in challenging environments. Equipped with a high-sensitivity thermal sensor, it enables accurate target detection in complete darkness as well as adverse weather conditions such as fog, rain, and low visibility.

Its 35 mm objective lens provides an excellent balance between field of view and target identification capability, making the sight highly effective for both medium- and long-range shooting applications.

One of the key features of the Pantera 640 eX LRF is its integrated laser rangefinder, capable of measuring distances up to 1,000 meters with high accuracy, significantly improving shot placement and overall hunting effectiveness.

Next-Generation Thermal Imaging Technology

The Pantera eX 640 LRF represents the latest evolution of the highly regarded Pantera thermal imaging series. Combining a proven design with modern innovations, it delivers outstanding image quality and user experience.

A new circular OLED display with an impressive resolution of 2560 × 2560 pixels provides exceptional image detail, allowing for superior target identification in all conditions. The advanced thermal detector, with a sensitivity of less than 14 mK, captures even the smallest temperature differences, resulting in remarkably sharp and detailed thermal images.

Larger, more intuitive control buttons improve usability, even while wearing gloves, while the slim and elegant housing emphasizes the device’s professional-grade design. The result is an ideal combination of advanced technology, ergonomics, and reliability.

Key Features

• 35 mm F1.0 objective lens.

• Optical magnification of 3.7×.

• Digital zoom up to 8×.

• Integrated laser rangefinder with a measuring range of up to 1,000 m.

• VOx thermal sensor with 640 × 512 pixel resolution.

• 12 μm pixel pitch.

• Thermal sensitivity below 14 mK.

• Manual focus adjustment.

• 60 mm eye relief.

• Advanced PARD IREA image processing technology.

• Detection range up to 2,600 m.

• Circular OLED display with 2560 × 2560 pixel resolution.

• 50 Hz refresh rate.

• Multiple thermal color palettes.

• Integrated ballistic calculator.

• Replaceable 18650 battery with up to 8 hours of operation.

• MicroSD card support up to 128 GB.

• IP67 waterproof and dustproof protection.

• Diopter adjustment from -5D to +3D.

• Wi-Fi connectivity and mobile app support.

• Power-saving mode.

• USB-C charging and data transfer.

• Picture-in-Picture (PiP) mode.

• Recoil-activated video recording.

• MP4 video recording format.

• Built-in compass and gyroscope.

• Recoil resistance up to 6,000 J.

• Operating temperature range from -30°C to +55°C.

Advanced Imaging and Precision

The high-resolution OLED display delivers a bright, detailed image, ensuring easy target identification under a variety of lighting and environmental conditions.

Users can choose from several thermal imaging color modes to optimize target visibility:

• White Hot

• Black Hot

• Red Hot

• Iron

• Sky

• Edge

The integrated Picture-in-Picture (PiP) function enhances precision by displaying a magnified image of the target while maintaining a full view of the surrounding area. This enables accurate aiming without sacrificing situational awareness.

An advanced ballistic calculator assists shooters in making precise corrections based on target distance and shooting conditions, helping improve long-range accuracy.

Durable Construction for Demanding Conditions

The Pantera eX 640 LRF is designed to withstand intensive field use. Its housing is manufactured from durable aluminum alloy and meets IP67 protection standards, making it resistant to water, dust, and harsh environmental conditions.

The robust construction also provides recoil resistance up to 6,000 joules, allowing reliable operation on high-powered hunting rifles.

Users can further customize the experience through adjustable reticle styles, brightness settings, and color options to match individual preferences and hunting scenarios.

Long Battery Life and Modern Connectivity

The sight is powered by a replaceable 18650 lithium-ion battery and an integrated rechargeable battery system, delivering up to 8 hours of continuous operation.

Built-in Wi-Fi connectivity allows seamless connection to compatible mobile devices for transferring images and videos. The device also supports photo capture and video recording, making it easy to document hunts and shooting sessions.

A unique recoil-activated recording feature automatically saves a 20-second video clip whenever a shot is fired, capturing approximately 8 seconds before and 12 seconds after the shot. This provides valuable footage for reviewing shot placement and hunting performance.

Recordings are stored in MP4 format and can be saved to a MicroSD card with a capacity of up to 128 GB.

Professional Performance in Any Environment

The PARD Pantera 640 eX PAE6-35/LRF is more than a thermal imaging sight—it is a professional observation and targeting system designed for serious hunters and tactical users.

With exceptional image quality, advanced thermal detection technology, an integrated laser rangefinder, ballistic calculation, rugged construction, and modern connectivity features, it delivers outstanding performance in forests, open terrain, daytime operations, and complete darkness.

Whether used for hunting, wildlife management, or professional shooting applications, the Pantera eX 640 LRF provides the precision, reliability, and confidence required in the most demanding conditions.

Included Accessories

• PARD Pantera 640 eX LRF 35 mm Thermal Imaging Sight.

• 3.7 V 18650 Lithium-Ion Battery.

• Protective Carrying Case.

• USB-C Cable.

• Two 30 mm Mounting Rings.

• Two Allen Wrenches.

• Two Lens Cleaning Cloths.

• Rubber Eyecup.

• User Manual.

• Warranty Card.

Technical Specifications

• Model: PARD Pantera 640 eX LRF 35 mm

• Supplier Code: PAE6-35/LRF

• EAN: 6977357452827

• Application: Hunting, Tactical Shooting

• Thermal Sensor Type: Uncooled VOx Microbolometer

• Sensor Resolution: 640 × 512 pixels

• Pixel Pitch: 12 μm

• Thermal Sensitivity (NETD): <14 mK

• Objective Lens: 35 mm F1.0

• Optical Magnification: 3.7×

• Digital Zoom: 2×, 4×, 6×, 8×

• Detection Range: 2,600 m

• Laser Rangefinder Range: 1,000 m

• Display Type: OLED

• Display Resolution: 2560 × 2560 pixels

• Refresh Rate: 50 Hz

• Angular Field of View: 7°

• Linear Field of View at 100 m: 12.3 × 12.3 m

• Eye Relief: 60 mm

• Diopter Adjustment: -5D to +3D

• Photo Resolution: 1024 × 768 pixels

• Video Resolution: 1280 × 1280 pixels

• Ballistic Calculator: Yes

• PARD IREA Image Processing: Yes

• Picture-in-Picture (PiP): Yes

• Wi-Fi Connectivity: Yes

• Integrated Laser Rangefinder: Yes

• Adjustable Reticle: Yes

• HDMI Output: Yes

• USB-C Port: Yes

• Built-in Compass: Yes

• Built-in Gyroscope: Yes

• Housing Material: Aluminum Alloy

• Waterproof Rating: IP67

• Recoil Resistance: 6,000 J

• Maximum MicroSD Capacity: 128 GB

• Operating Temperature Range: -30°C to +55°C

• Tube Diameter: 30 mm (1.18")

• Length: 370 mm

• Width: 88 mm

• Height: 72 mm

• Weight with Battery: 1,087 g

Power Supply

• Integrated rechargeable battery.

• One replaceable 18650 lithium-ion battery.

• USB-C charging support.

Manufacturer Information

• Manufacturer: Bestguarder / PARD, China
