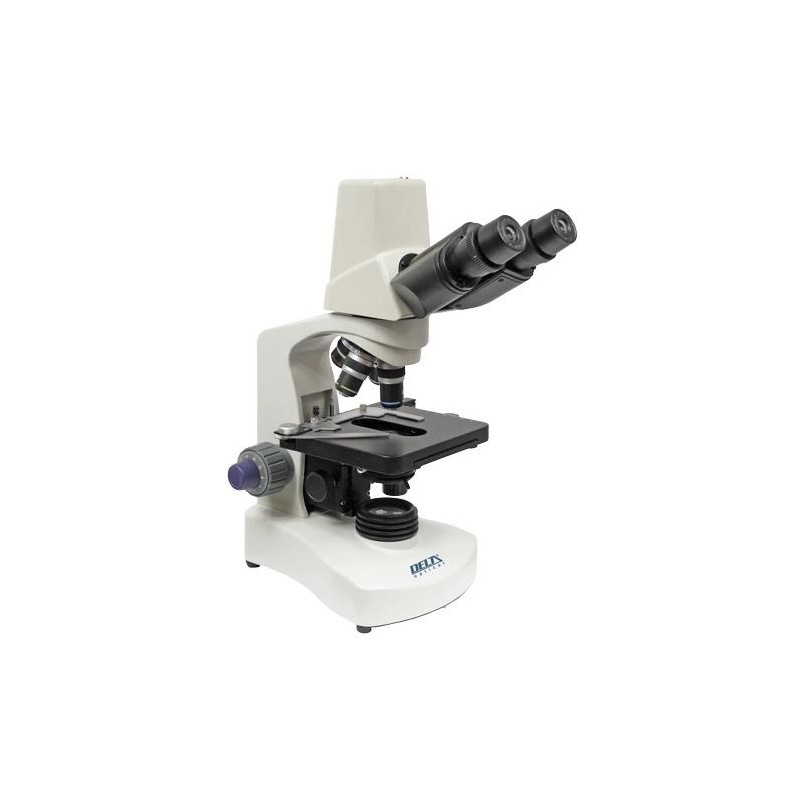

Delta Optical Genetic Pro Microscope with a 5MP Camera (DO-3412)

Delta Optical Genetic Pro Microscope with 5 MP Camera (DO-3412)

The Delta Optical Genetic Pro Microscope is a versatile instrument designed for a wide range of scientific, educational, and professional applications. It is commonly used for routine examinations in medical and veterinary practices, sanitary inspection facilities, university laboratories, student workshops, and secondary schools.

The microscope is also an excellent choice for hobbyists and enthusiasts who want to explore the microscopic world with a reliable, high-performance instrument that can serve them for many years.

One of the greatest advantages of the Genetic Pro series is its exceptional value for money. The microscope features a solid, stable, and ergonomic design that ensures long-term durability and comfortable operation. High-quality achromatic objectives provide sharp images and magnifications ranging from 40× to 1000×.

Wide-field eyepieces combined with bright LED illumination make it possible to observe even very small specimens with excellent clarity. The mechanical stage and precise coarse and fine focusing controls allow accurate specimen positioning and detailed examination.

Thanks to a wide range of available accessories, the Genetic Pro series can be expanded with additional microscopy techniques such as:

• Polarization

• Darkfield observation

• Phase contrast

These enhancements significantly broaden the microscope's capabilities and allow more advanced observation methods.

The microscope is also compatible with various microscope cameras and photographic adapters, enabling image and video capture for documentation, research, and educational purposes. Dedicated software provides extensive tools for image analysis and post-processing.

The Delta Optical Genetic Pro series is available in monocular, binocular, and trinocular configurations. Certain versions are also equipped with integrated rechargeable battery systems for operation away from external power sources.

Important Information

The offered microscope does not include a built-in rechargeable battery, and its design does not allow conversion to a battery-powered version after purchase.

This model is equipped with an integrated 5-megapixel camera for image and video capture.

The Delta Optical Genetic Pro series has been selected as an award for winners of the central stages of the Polish Biology Olympiad, sponsored by Delta Optical.

Software Features

• Polish language interface

• Video sequence recording

• Still image capture

• Distance measurement

• Angle measurement

• Polygon area measurement

• Circle radius measurement

• Scale bar insertion into displayed images (requires a 0.01 mm stage micrometer slide, sold separately)

• Printing with or without measurement scale

Applications

• Education

• Universities and Higher Education

• Laboratories

• Medical Diagnostics

• Veterinary Medicine

Observation Method

• Brightfield

Optical System

• Biological microscope with upright optical design

• Achromatic optics

• Optical correction: 160 mm

Head and Camera

• Head with integrated 5 MP camera

Objective Revolver

• Quadruple nosepiece

Objectives

• 4×

• 10×

• 40×

• 100× Oil Immersion

Eyepieces

• Magnification: 10×

• Field of View: 18 mm

Magnification Range

• 40×

• 100×

• 400×

• 1000×

Viewing Comfort

• Interpupillary Distance: 48–75 mm

• Eyepiece Tube Inclination: 30°

• Diopter Adjustment: ±5D on the left tube

Condenser

• Abbe Condenser N.A. 1.25

Illumination

• LED Light Source

• Transmitted Light Illumination

Mechanical Stage

• Stage Dimensions: 142 × 132 mm

• Suitable for two slides simultaneously

• Vernier scale included

• Specimen Travel Range: 75 × 40 mm

Focusing System

• Coaxial coarse and fine focus controls

• Dual-sided adjustment

• Fine focus resolution: 4 µm

Power Supply

• DC 5V / 0.5A

Upgradeable Observation Techniques

• Darkfield

• Phase Contrast

• Polarization

Included Accessories

• USB cable

• Green filter

• Power cable

• Achromatic objectives: 4×, 10×, 40×, 100× Oil

• 10× eyepieces

• Immersion oil

• Software installation disc

• Dust cover

Technical Specifications

• Catalog Number: DO-3412

• Microscope Type: Biological, Upright

• Observation Technique: Brightfield

• Head Type: Integrated 5 MP Camera

• Objective Nosepiece: Quadruple

• Objectives: 4×, 10×, 40×, 100× Oil

• Eyepiece Magnification: 10×

• Eyepiece Field of View: 18 mm

• Interpupillary Distance: 48–75 mm

• Eyepiece Tube Angle: 30°

• Diopter Adjustment: ±5D

• Total Magnifications: 40×, 100×, 400×, 1000×

• Condenser: Abbe N.A. 1.25

• Optical Class: Achromatic

• Illumination Type: LED Transmitted Light

• Optical Correction Length: 160 mm

• Stage Size: 142 × 132 mm

• Stage Travel Range: 75 × 40 mm

• Fine Focus Increment: 4 µm

• Power Supply: DC 5V / 0.5A

Warranty

• Manufacturer Warranty: 24 Months
