Kron Technologies EF Mount (1.4/2.1-HD) (SKU CR-EF-2)

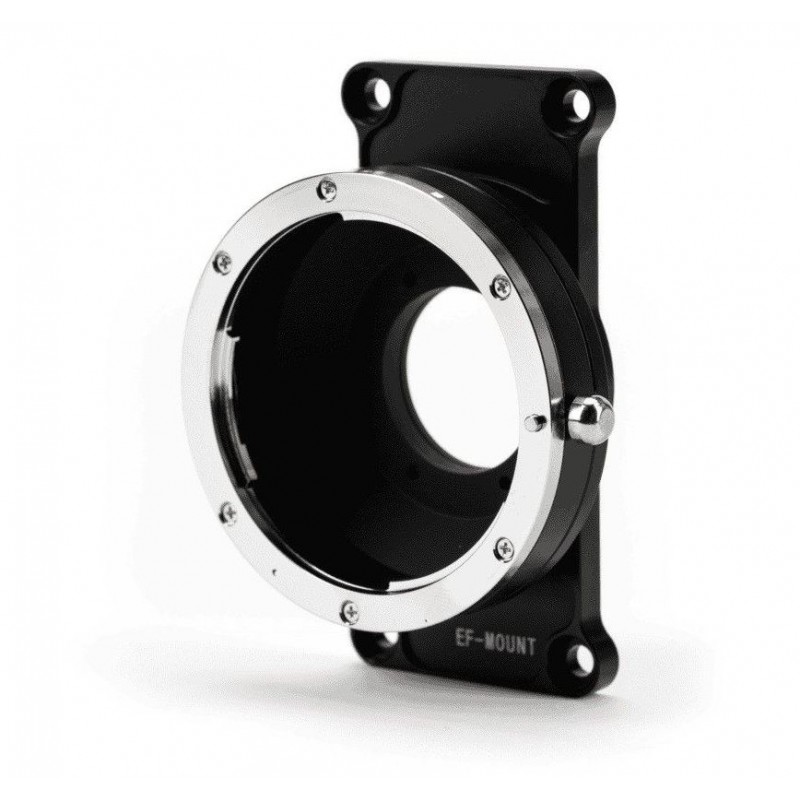

Kron Technologies EF Mount for Chronos 1.4 and 2.1-HD Cameras (SKU: CR-EF-2)

The Kron Technologies EF Mount is specifically designed for use with the Chronos series of high-speed cameras, including the Chronos 1.4 and Chronos 2.1-HD models. This mount enables these cameras to accept lenses equipped with the Canon EF lens mount standard, providing users with a wider selection of compatible optics.

Manufactured from the same high-quality aircraft-grade aluminum and stainless steel used in the construction of Chronos cameras, the mount offers exceptional durability and reliability. Each unit features a black anodized finish for enhanced protection and a professional appearance.

Precision CNC machining ensures accurate lens alignment and reliable infinity focus performance. The mount also allows back focus adjustment using the included shim set, enabling users to fine-tune the optical setup for maximum accuracy.

The EF mount is entirely passive and contains no electronic components. As a result, electronic communication between the camera and lens is not supported. Lens functions such as aperture and focus must be adjusted manually using lenses that provide manual control options.

Each EF Mount includes a limited 90-day manufacturer warranty.

Key Features

• Designed specifically for Chronos 1.4 and Chronos 2.1-HD high-speed cameras

• Compatible with Canon EF mount lenses

• Precision CNC-machined construction

• Aircraft-grade aluminum and stainless steel materials

• Durable black anodized finish

• Adjustable back focus using included shims

• Accurate infinity focus alignment

• Passive mount design with no electronic lens control

• Manual focus and aperture operation only

Package Contents

• 1 × EF Mount Plate

• 4 × M4 Mounting Screws

• 1 × 3 mm Allen Key

• 1 × EF Mount Body Cap

• 2 × 0.5 mm Red Back Focus Shims

• 2 × 0.6 mm Black Back Focus Shims

• 4 × 0.3 mm White Back Focus Shims

Technical Specifications

• SKU: CR-EF-2

• Compatibility: Chronos 1.4 and Chronos 2.1-HD Cameras

• Lens Mount Type: Canon EF

• Mount Type: Passive (No Electronic Lens Control)

• Material: Precision CNC-Machined Aircraft-Grade Aluminum and Stainless Steel

• Finish: Black Anodized

• Back Focus Adjustment: Yes, using included shims

• Electronic Communication: Not Supported

• Warranty: 90-Day Limited Warranty
