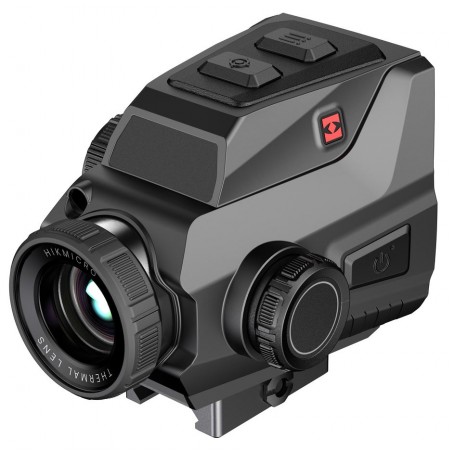

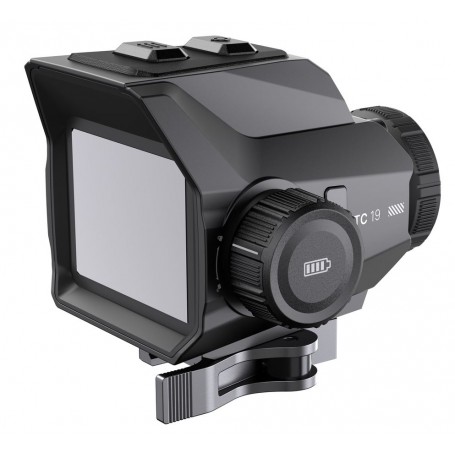

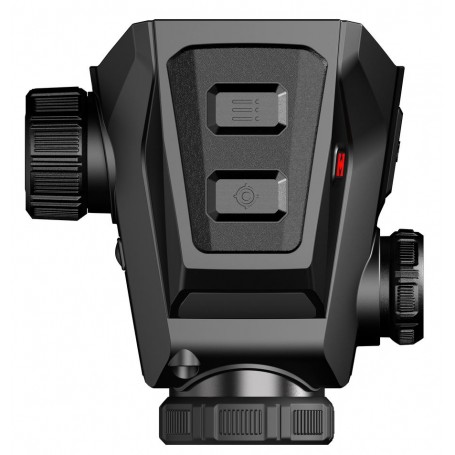

Hikvision Hikmicro Hiktac TC19 Thermal Imaging Sight (308101673)

HIKMICRO HIKTac TC19 – a lightweight thermal imaging sight for fast target acquisition

The HIKMICRO HIKTac TC19 is a compact thermal imaging red dot sight designed for hunters, sport shooters, airsoft enthusiasts, and users who require maximum mobility and rapid target detection. With a weight of only 260 g and a compact form factor, it is an excellent choice for lightweight hunting rifles, AR-15 platform carbines, and airsoft replicas used during night games or scenarios requiring efficient terrain observation.

Its wide field of view, instant target acquisition capability, and ergonomic design provide excellent situational awareness during hunting, shooting practice, airsoft activities, and field operations. The device combines the advantages of a lightweight red dot sight with advanced thermal imaging technology, eliminating the need for bulky and complex optical systems.

The HIKTac TC19 features a 256×192 px thermal sensor with a NETD sensitivity below 18 mK, enabling effective detection and identification of heat sources. A large 3.1-inch AMOLED display provides a clear and comfortable viewing experience during both daytime and nighttime use.

Key features of the HIKMICRO HIKTac TC19 thermal imaging red dot sight

• 256×192 px VOx thermal sensor.

• High thermal sensitivity with NETD below 18 mK.

• 19 mm F1.0 lens.

• Detection range of up to 900 meters.

• Magnification range from 1.2× to 9.6×.

• Large 3.1-inch AMOLED display.

• HSIS shutterless image system.

• Four thermal image color palettes: Black Hot, White Hot, Red Hot, and IronBow.

• Cold/Warm image tone adjustment for adapting the display to different conditions.

• Image Pro 3.0 and Sync Pro image enhancement algorithms.

• Zoom Pro technology for improved digital zoom quality.

• Picture-in-Picture (PIP) function.

• Hot Track function for identifying and tracking the hottest point in the image.

• Photo and video recording.

• Audio recording capability.

• 4 GB internal storage.

• Five zeroing profiles.

• Freeze Zeroing function for simplified sight adjustment.

• Killflash lens cover included.

• Powered by a replaceable 18650 battery.

• Up to 4 hours of operating time.

• USB-C charging support.

• IP67 waterproof and dust-resistant housing.

• Picatinny rail mounting system.

• Compact construction weighing only 260 g.

HIKMICRO HIKTac TC19 – compact thermal imaging technology for rapid deployment

The HIKTac TC19 uses a modern 256×192 px VOx thermal sensor with a 12 μm pixel pitch and excellent thermal sensitivity of less than 18 mK. This allows the device to detect game and other heat sources effectively in challenging conditions, including fog, rain, snow, and complete darkness.

With a detection range of up to 900 meters, the thermal sight is suitable for hunting, stalking, observation, and monitoring targets at medium distances. The 19 mm lens provides a wide viewing angle, helping users quickly locate targets in dynamic environments.

The device offers four thermal imaging color modes: Black Hot, White Hot, Red Hot, and IronBow. These settings allow users to adjust the display according to terrain, weather conditions, and personal preferences. The additional Cold and Warm image tone adjustment further improves contrast, enhances target recognition, and increases viewing comfort during extended observation sessions.

The 1.2× to 9.6× magnification range allows effective monitoring of both close and distant objects. The Picture-in-Picture function displays a magnified view of the target while keeping the full scene visible, helping maintain awareness of the surrounding area.

HIKMICRO HIKTac TC19 – smooth image without calibration freezes

The device is equipped with the advanced HSIS (HIKMICRO Shutterless Image System), which removes the temporary image freeze commonly found in thermal imaging devices during calibration. This ensures continuous observation and uninterrupted visual tracking of targets.

The Image Pro 3.0 and Sync Pro technologies improve image clarity, contrast, and detail reproduction. A 50 Hz refresh rate provides a smooth viewing experience and allows comfortable tracking of moving targets.

HIKMICRO HIKTac thermal sight – lightweight construction and reliable durability

One of the biggest advantages of the HIKMICRO HIKTac TC19 is its extremely low weight of only 260 g. The compact design has minimal impact on weapon balance, making the sight comfortable to use during long hunting trips or extended field operations.

The rugged housing meets the IP67 protection standard, providing resistance against water, dust, and demanding outdoor conditions. The included Killflash lens cover adds additional optical protection, reducing the risk of lens damage and limiting unwanted reflections.

HIKMICRO HIKTac TC19 – recording functions and flexible power options

The HIKTac TC19 allows users to capture photos, record videos, and save audio recordings. Files are stored in the built-in 4 GB memory, allowing users to document observations, hunting activities, or field operations without additional storage devices.

The device is powered by a replaceable 18650 rechargeable battery, providing up to 4 hours of operation. For extended missions, the USB-C port allows connection to an external power bank, ensuring longer operating time in the field.

User benefits of the HIKMICRO HIKTac TC19

• Detect targets effectively with a highly sensitive thermal sensor featuring NETD below 18 mK.

• Achieve more precise aiming thanks to advanced sight adjustment features.

• Maintain excellent weapon balance with an ultra-light 260 g design.

• Enjoy smooth, uninterrupted thermal imaging thanks to the HSIS shutterless system.

Included accessories

• Instruction manual

• USB-C cable

• Lens hood

• Spare O-ring

• Microfiber cleaning cloth

Technical specifications

Basic parameters

• Digital zoom: 8×

• Display diagonal: 3.1 inches

• Display resolution: 600 × 450 px

• Display type: AMOLED (Active Matrix OLED)

• Pixel pitch: 12 μm

• Internal memory: 4 GB

• Lens: 19 mm / F1.0

• Magnification: 1.2×

• Maximum detection range: 900 m

• Maximum operating time: up to 4 hours

• Operating temperature range: -30°C to +45°C

• Refresh rate: 50 Hz

• Thermal sensor resolution: 256 × 192 px

• Thermal sensitivity: 18 mK

• Sensor type: Uncooled VOx microbolometer

Applied technologies

• HSIS (HIKMICRO Shutterless Image System): Yes

• Image Pro 3.0: Yes

• Picture-in-Picture (PIP): Yes

• Zoom Pro: Yes

Design features

• Integrated laser rangefinder: No

• Mounting system: Picatinny rail

Thermal imaging modes

• Black Hot

• IronBow

• Red Hot

• White Hot

Additional specifications

• Minimum focusing distance: 1 m

• Weight without battery: 260 g

• Height: 86.7 mm

• Length: 106.9 mm

• Width: 94.8 mm

• Protection rating: IP67

Power supply

• Battery type: 18650 × 1 rechargeable battery

• Input current: 2 A

• Input voltage: 5 V

• Power options: rechargeable battery or USB-C port

Warranty and manufacturer information

• Manufacturer warranty: 3 years

• Manufacturer: HIKVISION, China

• Brand: HIKMICRO by HIKVISION

• EAN: 6979469751539

• Supplier symbol: 308101673
