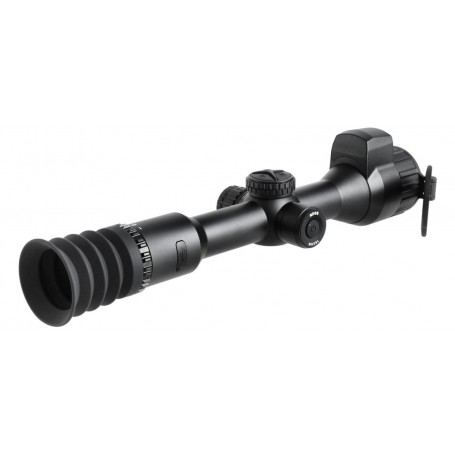

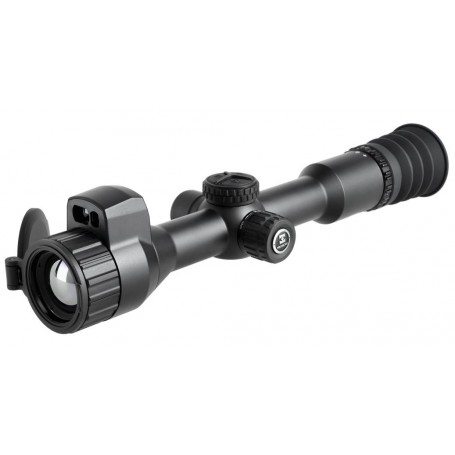

Hikvision Hikmicro Neos NH35L Thermal Imaging Scope with Laser Rangefinder (308101626)

HIKMICRO Neos NH35L – advanced thermal imaging scope for precise target identification

The HIKMICRO Neos NH35L is a professional thermal imaging riflescope designed for hunters and shooters who require accurate target detection and reliable performance in demanding conditions. Equipped with a highly sensitive thermal sensor with NETD below 18 mK, the scope effectively detects heat sources in complete darkness, fog, rain, and snow, with a detection range of up to 1800 meters.

The scope features a traditional riflescope-style design, making it easy to mount on standard rails while maintaining the appearance and handling characteristics of a classic hunting rifle. The 384×288 px thermal sensor combined with Image Pro 3.0 image processing technology delivers detailed thermal images, helping users make confident decisions in the field.

Key features of the HIKMICRO Neos NH35L thermal imaging scope

• 384×288 px VOx thermal sensor with NETD below 18 mK.

• Detection range of up to 1800 meters.

• Integrated laser rangefinder with a range of up to 1000 meters.

• Built-in ballistic calculator for improved shot accuracy.

• HSIS shutterless image system for uninterrupted viewing.

• 0.49-inch AMOLED display with 1920×1080 px resolution.

• Magnification range from 4× to 24×.

• Automatic shot-activated recording with 64 GB internal memory.

• Classic hunting riflescope-inspired design.

• Anodized aluminum housing resistant to recoil forces up to 1000 G.

• Dual power system using an integrated battery and replaceable 18650 battery.

HIKMICRO Neos NH35L – precision thermal imaging for night hunting

The HIKMICRO Neos NH35L uses a high-performance 384×288 px thermal sensor with a 12 μm pixel pitch and thermal sensitivity below 18 mK. The high-resolution AMOLED display provides a sharp, high-contrast image, allowing users to identify targets more effectively in difficult environments.

The 35 mm F1.0 objective lens improves long-range observation capability, while the manual focus adjustment allows precise image optimization depending on the distance and conditions.

The scope provides a fixed 4× optical magnification, making it suitable for medium-range observation and hunting applications. The Picture-in-Picture (PiP) function allows users to apply digital magnification up to 24× within a selected area while keeping the wider scene visible.

The integrated laser rangefinder provides accurate distance measurements up to 1000 meters. Combined with the built-in ballistic calculator, it enables fast range estimation and shooting corrections, supporting precise and responsible target engagement.

HIKMICRO Neos NH35L – intuitive controls and rugged construction

The HIKMICRO Neos NH35L features a user-friendly interface with large, easy-to-operate buttons designed for use in the field. Multiple reticle options and thermal color palettes allow users to customize the display according to conditions and personal preferences.

The 0.49-inch AMOLED display with 1920×1080 px resolution ensures a clear and detailed image. Sync Pro image enhancement technology and a 50 Hz refresh rate provide smooth target tracking, even when observing moving animals.

The scope body is made from durable anodized aluminum and withstands recoil forces of up to 1000 G, making it suitable for use with powerful hunting calibers, including rifles chambered in 9.3×64 mm.

The IP67-rated housing protects the electronics against water and dust, ensuring reliable operation in harsh outdoor environments. With a weight of only 570 g and an ergonomic design, the scope remains comfortable during extended hunting sessions.

Automatic recording and dual power system of the HIKMICRO Neos NH35L

The HIKMICRO Neos NH35L features automatic shot-activated recording, capturing footage from 15 seconds before and 15 seconds after the shot. Recordings are stored in the built-in 64 GB memory and can be reviewed directly on the display, helping users verify shot placement and support ethical hunting practices.

The scope uses a dual power system consisting of a built-in battery and a replaceable 18650 battery. The device primarily operates from the replaceable battery and automatically switches to the internal battery when the external power source is depleted. This design allows the user to replace the battery without shutting down the scope.

The total operating time can reach up to 9 hours depending on usage conditions.

User benefits of the HIKMICRO Neos NH35L

• Detect targets at long distances with a sensitive 384×288 px thermal sensor.

• Improve shot precision with an integrated laser rangefinder and ballistic calculator.

• Maintain clear visibility in darkness, fog, rain, and snow.

• Record and review shots automatically using built-in memory.

• Enjoy reliable operation with a rugged aluminum body and IP67 protection.

• Use the scope comfortably during extended hunts thanks to its lightweight 570 g construction.

Included accessories

• 18650 battery

• User manual

• USB-C cable

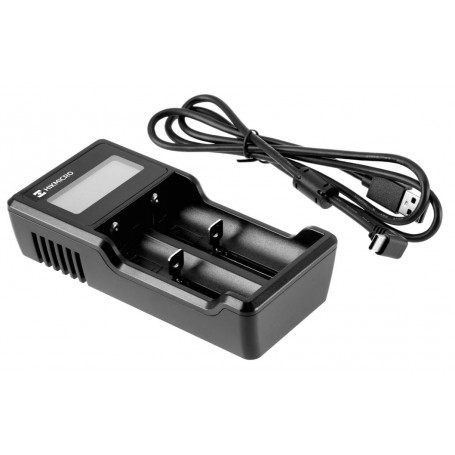

• Mains charger

• Microfiber cleaning cloth

Technical specifications

Basic parameters

• Display diagonal: 0.49 inches

• Display resolution: 1920 × 1080 px

• Display type: AMOLED (Active Matrix OLED)

• Pixel pitch: 12 μm

• Internal memory: 64 GB

• Lens: 35 mm / F1.0

• Maximum detection range: 1800 m

• Maximum operating time: up to 8 hours

• Maximum operating temperature: +55°C

• Minimum operating temperature: -30°C

• Minimum measurement range: 10 m

• Refresh rate: 50 Hz

• Thermal sensor resolution: 384 × 288 px

• Thermal sensitivity: 18 mK

• Sensor type: Uncooled VOx microbolometric sensor

Applied technologies

• Ballistic calculator: Yes

• Configurable ballistic profiles: Yes

• HSIS (HIKMICRO Shutterless Image System): Yes

• Image Pro 3.0: Yes

• Picture-in-Picture (PiP): Yes

• Zoom Pro: Yes

Design features

• Integrated Laser Rangefinder (LRF): Yes

• Tube diameter: 30 mm (1.18 inches)

• Shock resistance: up to 1000 G

Additional specifications

• Adjustable reticle: Yes

• Angular field of view: 7.6°

• Thermal image color modes:

  • Black Hot

  • Color Fusion

  • Green Monochrome

  • Red Hot

  • Red Monochrome

  • White Hot

• Diopter adjustment: ±4

• Exit pupil diameter: 8 mm

• Eye relief: 55 mm

• Laser rangefinder range: 1000 m

• Field of view at 100 m: 13.1 × 10 m

• Minimum focusing distance: 3 m

Dimensions and weight

• Weight: 570 g

• Height: 75.8 mm

• Length: 345.6 mm

• Width: 86.1 mm

Protection and power supply

• Protection rating: IP67

• Battery configuration:

  • 18650 rechargeable battery ×1

  • Built-in battery

• Power options:

  • Rechargeable batteries

  • USB-C port

  • Built-in battery

Warranty and manufacturer information

• Manufacturer warranty: 3 years

• Manufacturer: HIKVISION, China

• Brand: HIKMICRO by HIKVISION

• EAN: 6974004649463

• Supplier symbol: 308101626
