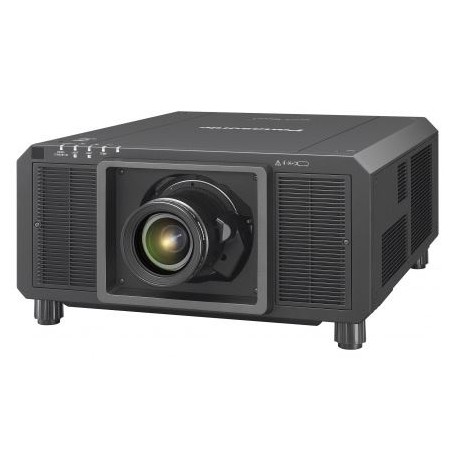

Panasonic PT-RQ22K Full Laser 3-Chip DLP Projector

The Panasonic PT-RQ22K is a professional 3-chip DLP laser projector designed for large-scale venues, live events, museums, simulation environments, auditoriums, and permanent installations. Delivering 20,000 ANSI lumens of brightness, native WUXGA resolution with 4K-class image processing, and a maintenance-free laser light source, it provides outstanding image quality and reliable 24/7 operation.

The projector supports interchangeable lenses, HDR content, BT.2020 color space, and advanced geometric correction tools, making it suitable for demanding professional projection applications.

Key features

• 3-chip DLP projection technology.

• Full laser light source.

• 20,000 ANSI lumens of brightness.

• WUXGA resolution with 5120 × 3200 image processing.

• Frame rates up to 120 Hz.

• Maintenance-free laser operation for up to 20,000 hours.

• Designed for continuous 24/7 operation.

• Interchangeable lens system.

• 360° installation capability in any orientation.

• DIGITAL LINK (HDBaseT compatible).

• HDMI, DVI-D, and HD-SDI connectivity.

• Optional 12G-SDI board for 4K signal support.

• BT.2020 color space compatibility.

• HDR content playback.

• Built-in warping functions for curved surface projection.

• Compatible with optional Geometry Manager Pro software for automated warping and masking.

• Compact chassis for its performance class.

Exceptional brightness and image quality

The PT-RQ22K delivers 20,000 ANSI lumens, providing bright, detailed images even in large venues or environments with significant ambient light.

Its advanced 3-chip DLP optical engine produces excellent color accuracy, high contrast, and stable image performance, making it ideal for professional presentations, digital signage, projection mapping, and immersive visual experiences.

The projector supports frame rates of up to 120 Hz, ensuring smooth playback of high-motion video and dynamic content.

Maintenance-free laser light source

The full laser illumination system provides up to 20,000 hours of operation without requiring routine light source maintenance.

This significantly reduces operating costs and minimizes downtime, making the projector well suited for permanent installations and continuous professional use.

Flexible installation

The PT-RQ22K supports installation in virtually any orientation thanks to its 360° mounting capability.

This flexibility makes it suitable for:

• Ceiling installations.

• Floor projection.

• Portrait orientation.

• Angled projection.

• Complex projection mapping applications.

The interchangeable lens system allows users to select the most appropriate lens for different throw distances and installation requirements.

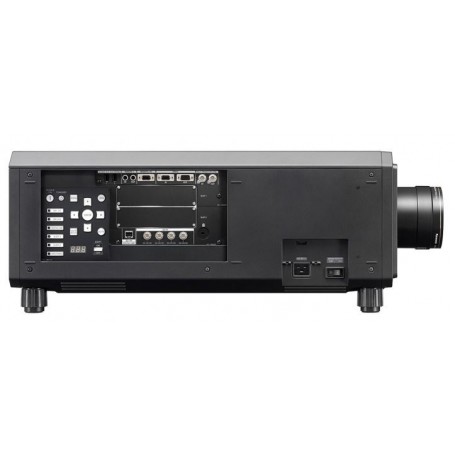

Professional connectivity

The projector includes a wide range of professional interfaces, including:

• DIGITAL LINK (HDBaseT compatible).

• HDMI.

• DVI-D.

• HD-SDI.

It also supports 3G-SDI signal processing and can be upgraded with the optional ET-MDN12G10 interface board, adding support for 12G-SDI and 4K signal transmission.

Advanced image processing

The PT-RQ22K supports the BT.2020 color standard and HDR content playback, providing improved color reproduction and expanded dynamic range for modern video formats.

Integrated warping functionality allows accurate projection onto curved or irregular surfaces without requiring additional hardware.

For more advanced applications, the projector is compatible with the optional Geometry Manager Pro software, which provides automated geometric correction, edge blending, and masking capabilities for complex multi-projector installations.

Technical specifications

Projection system

• Projection technology:

  • 3-chip DLP.

• Light source:

  • Full laser.

• Brightness:

  • 20,000 ANSI lumens.

• Native resolution:

  • WUXGA.

• Image processing resolution:

  • 5120 × 3200.

• Maximum frame rate:

  • 120 Hz.

Light source lifespan

• Up to 20,000 hours without routine maintenance.

Operating capability

• Continuous 24/7 operation.

• 360° installation in any orientation.

Lens system

• Interchangeable lenses.

• Optional lenses available for different projection distances.

Connectivity

• DIGITAL LINK (HDBaseT compatible).

• HDMI.

• DVI-D.

• HD-SDI.

• 3G-SDI support.

• Optional ET-MDN12G10 board for 12G-SDI and 4K signal support.

Image processing features

• BT.2020 color space support.

• HDR content playback.

• Built-in geometric warping.

• Curved surface projection support.

• Optional Geometry Manager Pro compatibility.

• Automated warping and masking functions.

Physical specifications

• Dimensions:

  • 578 × 270 × 710 mm.

• Weight:

  • 51 kg.
