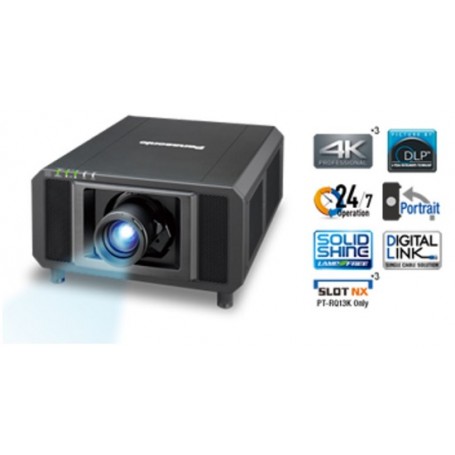

Panasonic PT-RZ12KE Full Laser 3-Chip DLP Projector

The Panasonic PT-RZ12KE is a professional 3-chip DLP laser projector designed for large venues, auditoriums, museums, houses of worship, live events, simulation systems, and permanent installations. Featuring a maintenance-free laser light source, interchangeable lenses, and advanced installation flexibility, it delivers exceptional image quality and reliable performance for demanding professional applications.

With a brightness of 12,000 ANSI lumens, a contrast ratio of 20,000:1, WUXGA resolution, and support for frame rates up to 120 Hz, the PT-RZ12KE is well suited for high-quality presentations, projection mapping, and continuous operation.

Key features

• 3-chip DLP projection technology.

• Full laser light source.

• 12,000 ANSI lumens of brightness.

• 20,000:1 contrast ratio.

• Native WUXGA resolution (1920 × 1200).

• Frame rates up to 120 Hz.

• Maintenance-free laser operation for up to 20,000 hours.

• Designed for continuous 24/7 operation.

• Interchangeable lens system.

• 360° installation capability in any orientation.

• DIGITAL LINK (HDBaseT compatible).

• HDMI, DVI-D, and HD-SDI connectivity.

• Built-in support for 3G-SDI signals.

• Integrated warping functions for curved surface projection.

• Compatible with optional Geometry Manager Pro software for automated warping and masking.

• Compact chassis for its performance class.

High-brightness laser projection

The PT-RZ12KE delivers 12,000 ANSI lumens, producing bright and detailed images suitable for large projection surfaces and environments with ambient lighting.

The advanced 3-chip DLP optical engine provides accurate color reproduction, excellent image stability, and high contrast, making it suitable for professional presentations, exhibitions, live events, and immersive installations.

A contrast ratio of 20,000:1 helps produce deep blacks and detailed shadow areas while maintaining bright highlights.

Maintenance-free laser light source

The integrated laser illumination system offers up to 20,000 hours of operation without routine maintenance.

This significantly reduces operating costs and downtime, making the projector an excellent choice for continuous professional installations and long-term operation.

Flexible installation options

The PT-RZ12KE supports installation in any orientation thanks to its 360° mounting capability.

This allows installation in:

• Ceiling-mounted configurations.

• Floor-mounted systems.

• Portrait orientation.

• Angled projection.

• Complex projection mapping environments.

The interchangeable lens system provides flexibility for different throw distances and installation requirements.

Professional connectivity

The projector includes a comprehensive range of professional interfaces, including:

• DIGITAL LINK (HDBaseT compatible).

• HDMI.

• DVI-D.

• HD-SDI.

Built-in support for 3G-SDI signals enables straightforward integration into professional AV and broadcast environments.

Advanced image adjustment

Integrated warping functions allow accurate projection onto curved and irregular surfaces without requiring external processing hardware.

For more advanced installations, the projector is compatible with the optional Geometry Manager Pro software, which adds automated geometric correction, edge blending, and masking capabilities for sophisticated multi-projector systems.

Technical specifications

Projection system

• Projection technology:

  • 3-chip DLP.

• Light source:

  • Full laser.

• Brightness:

  • 12,000 ANSI lumens.

• Contrast ratio:

  • 20,000:1.

• Native resolution:

  • WUXGA (1920 × 1200).

• Maximum frame rate:

  • 120 Hz.

Light source lifespan

• Up to 20,000 hours without routine maintenance.

Operating capability

• Continuous 24/7 operation.

• 360° installation in any orientation.

Lens system

• Interchangeable lenses.

• Optional lenses available for various projection distances.

Connectivity

• DIGITAL LINK (HDBaseT compatible).

• HDMI.

• DVI-D.

• HD-SDI.

• Built-in 3G-SDI signal support.

Image processing features

• Integrated geometric warping.

• Curved surface projection support.

• Optional Geometry Manager Pro compatibility.

• Automated warping and masking functions.

Physical specifications

• Dimensions:

  • 578 × 270 × 710 mm.

• Weight:

  • 45 kg.
