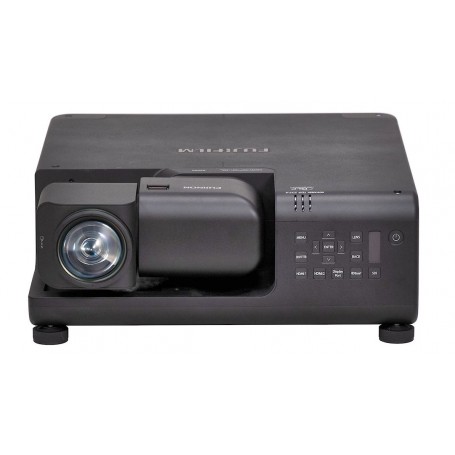

Fujifilm FP-Z8000 Projector

Fujifilm FP-Z8000 Laser Projector

The Fujifilm FP-Z8000 is a professional laser projector designed for creative installations, digital signage, museums, exhibitions, simulation environments, and immersive visual experiences. Delivering 8,000 ANSI lumens of brightness and Full HD resolution, it features Fujifilm's innovative folded bi-axial rotating lens, enabling omnidirectional projection without moving the projector body.

Its unique optical design allows images to be projected onto walls, ceilings, floors, and other surfaces while maintaining excellent image quality and installation flexibility.

Key features

• 8,000 ANSI lumens of brightness.

• Native Full HD resolution (1920 × 1080).

• Laser light source.

• Folded bi-axial rotating lens.

• Omnidirectional projection capability.

• Portrait and landscape projection by rotating the lens.

• Lens lock mechanism for stable positioning.

• Ultra-short throw design.

• Large-diameter precision aspherical front lens.

• Motorized zoom, focus, and lens shift.

• HDBaseT and HDMI connectivity.

• Compact chassis with only 108 mm height.

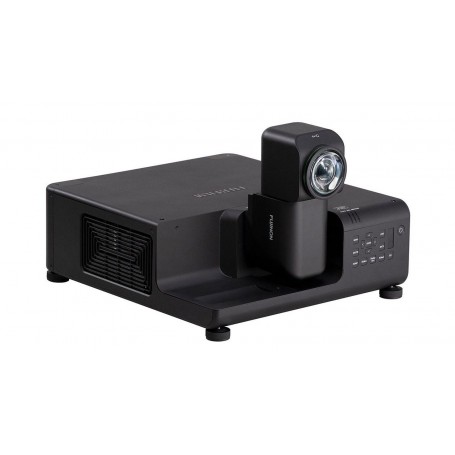

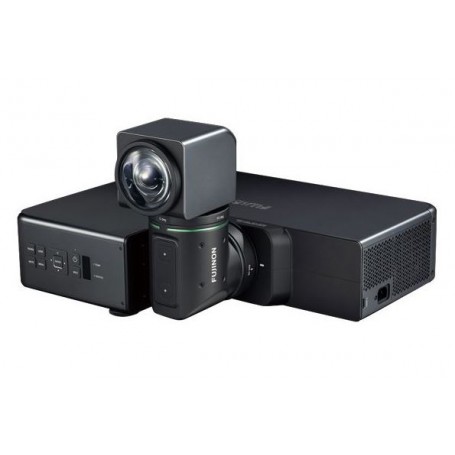

Innovative rotating lens system

The FP-Z8000 features the world's first folded bi-axial rotating lens system, allowing the lens to rotate independently while the projector remains stationary.

The lens can be directed:

• Up.

• Down.

• Forward.

• Backward.

• Left.

• Right.

This unique design allows projection onto almost any surface without physically repositioning the projector.

Users can also switch between portrait and landscape projection simply by rotating the lens, making installation faster and more flexible.

A built-in locking mechanism securely holds the lens in position during operation.

Advanced folded optical design

The folded optical system is based on Fujifilm's extensive expertise in precision optical engineering developed for professional 4K and 8K broadcast lenses.

Proprietary optical design software optimizes the complex light path through multiple lens groups, allowing the rotating optical assembly to maintain excellent image quality across the entire projected image while minimizing distortion.

The result is sharp, consistent projection with excellent corner-to-corner performance.

Large-diameter aspherical lens

The projector incorporates a large 87 mm precision aspherical front lens.

Manufacturing large aspherical optical elements requires advanced molding and processing technology. The lens provides extremely accurate image reproduction and contributes to the projector's ultra-short throw capability.

The precision of the optical surface is maintained within approximately one micrometer, supporting large-format projection with exceptional clarity.

Compact mechanical construction

Drawing on more than three decades of projector lens engineering experience, Fujifilm developed a compact lens mechanism capable of maintaining high image quality while supporting six-direction lens rotation.

Advanced thermal and structural simulations optimize the internal mechanical design, allowing the projector to maintain a remarkably slim profile measuring only 108 mm in height when the lens is folded.

Included accessories

• Remote control.

• Two AAA batteries.

• Lens cap.

• HDMI cable (1.8 m).

• Power cable (3.0 m).

• Two vertical installation stands.

• Quick user guide.

Technical specifications

Projection system

• Model:

  • FP-Z5000.

• Projection technology:

  • Single-chip DLP.

• DLP chip size:

  • 0.65 inch.

• Aspect ratio:

  • 16:9.

• Native resolution:

  • 1920 × 1080.

• Total pixels:

  • 2,073,600.

Lens

• Lens type:

  • Folded bi-axial rotating lens.

• Lens shift:

  • Vertical: ±82%.

  • Horizontal: ±35%.

• Zoom:

  • Motorized.

  • 1.0× to 1.1×.

• Focus:

  • Motorized.

• Throw ratio:

  • 0.34 (wide).

  • 0.37 (telephoto).

• Focal length:

  • 5.0 mm (wide).

  • 5.5 mm (telephoto).

• Aperture:

  • F2.4 (wide).

  • F2.49 (telephoto).

Light source

• Laser diode.

Image performance

• Brightness:

  • 8,000 ANSI lumens.

• Contrast ratio:

  • 12,000:1.

• Projection size:

  • 70 to 300 inches.

• Projection distance:

  • Approximately 0.5 m to 2.3 m.

Audio

• Built-in speaker:

  • 10 W.

Scanning frequencies

• Horizontal:

  • 15 kHz to 102 kHz.

• Vertical:

  • 23 Hz to 120 Hz.

Maximum display resolution

• 1920 × 1080.

Connectivity

• HDMI:

  • 3 inputs.

• HDBaseT / LAN:

  • RJ-45.

• USB:

  • Type-A.

  • 5 V DC output.

Operating conditions

• Operating temperature:

  • 0°C to 40°C.

• Storage temperature:

  • -10°C to 50°C.

• Condensation:

  • Not permitted.

Power

• Power supply:

  • AC 100–240 V.

  • 50/60 Hz.

• Maximum power consumption:

  • 700 W.

• Standby power consumption:

  • 0.5 W.

Physical specifications

• Dimensions:

  • 470 × 375 × 108 mm.

  • Measured with the lens folded.

• Weight:

  • Approximately 12.5 kg.
