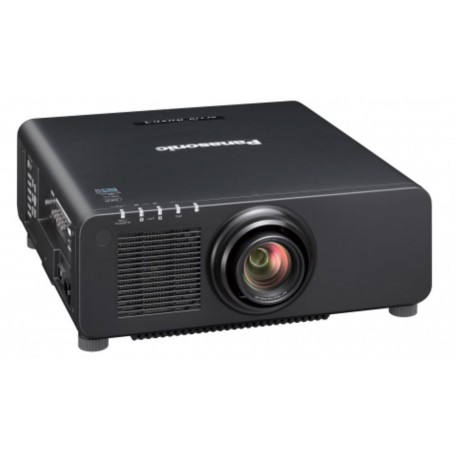

Panasonic PT-RZ120BE Projector

Panasonic PT-RZ120BE DLP Laser Projector

The Panasonic PT-RZ120BE is a professional DLP projector designed for large venues, conference rooms, auditoriums, educational institutions, museums, and permanent installations. It combines hybrid LED and laser light source technology to deliver high brightness, excellent image quality, and long-term reliability without the need for lamp replacement.

Using Panasonic's hybrid illumination system with red and blue LEDs and a green laser light source, the projector provides up to 20,000 hours of maintenance-free operation, making it an ideal solution for continuous professional use.

Key features

• Professional DLP projection technology.

• Hybrid LED/Laser light source.

• Red and blue LED illumination with green laser.

• 12,000 ANSI lumens of brightness.

• Native Full HD resolution (1920 × 1080).

• 16:9 aspect ratio.

• 20,000:1 contrast ratio.

• Up to 20,000 hours of maintenance-free operation.

• Integrated DIGITAL LINK (HDBaseT compatible).

• Vertical and horizontal lens shift.

• Manual 2× optical zoom.

• Throw ratio of approximately 1.7–2.4:1.

Hybrid LED and laser light source

The PT-RZ120BE uses Panasonic's hybrid illumination technology, combining red and blue LEDs with a green laser light source.

This design eliminates the need for conventional projector lamps while providing stable brightness, improved reliability, and reduced maintenance requirements throughout the projector's operating life.

The hybrid light engine is designed for up to 20,000 hours of operation without requiring light source replacement.

High-brightness Full HD projection

With an output of 12,000 ANSI lumens, the projector delivers bright, detailed images suitable for large projection surfaces and environments with ambient light.

The native Full HD resolution of 1920 × 1080 pixels provides sharp image reproduction for presentations, digital signage, educational content, and professional video applications.

A contrast ratio of 20,000:1 enhances image depth by producing darker blacks and brighter highlights.

Flexible installation

The PT-RZ120BE offers both vertical and horizontal lens shift, allowing installers to position the projector more flexibly without compromising image geometry.

A manual 2× optical zoom with a throw ratio of approximately 1.7–2.4:1 supports a wide variety of installation distances and room configurations.

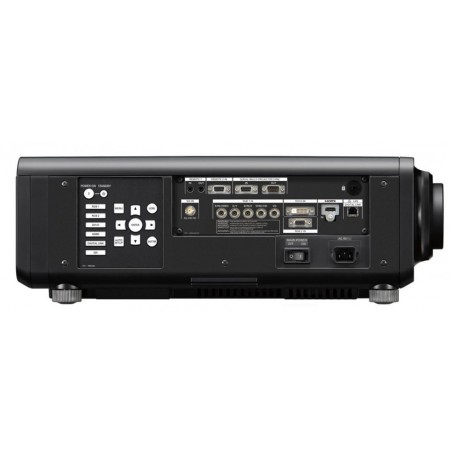

Professional connectivity

The projector features integrated DIGITAL LINK technology compatible with HDBaseT, enabling video, audio, and control signals to be transmitted over a single network cable for simplified installation and reduced cabling requirements.

Technical specifications

Projection system

• Projection technology:

  • DLP.

• Light source:

  • Hybrid LED/Laser.

• Illumination:

  • Red LED.

  • Blue LED.

  • Green laser.

Image performance

• Brightness:

  • 12,000 ANSI lumens.

• Native resolution:

  • 1920 × 1080 (Full HD).

• Aspect ratio:

  • 16:9.

• Contrast ratio:

  • 20,000:1.

Light source lifespan

• Up to 20,000 hours without scheduled maintenance.

Lens system

• Vertical lens shift:

  • Supported.

• Horizontal lens shift:

  • Supported.

• Zoom:

  • Manual 2× optical zoom.

• Throw ratio:

  • Approximately 1.7–2.4:1.

Connectivity

• Integrated DIGITAL LINK.

• HDBaseT compatible.
