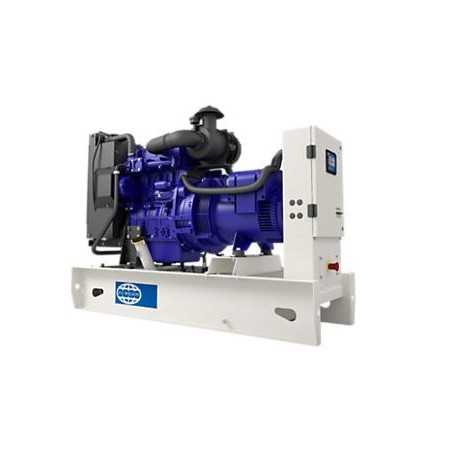

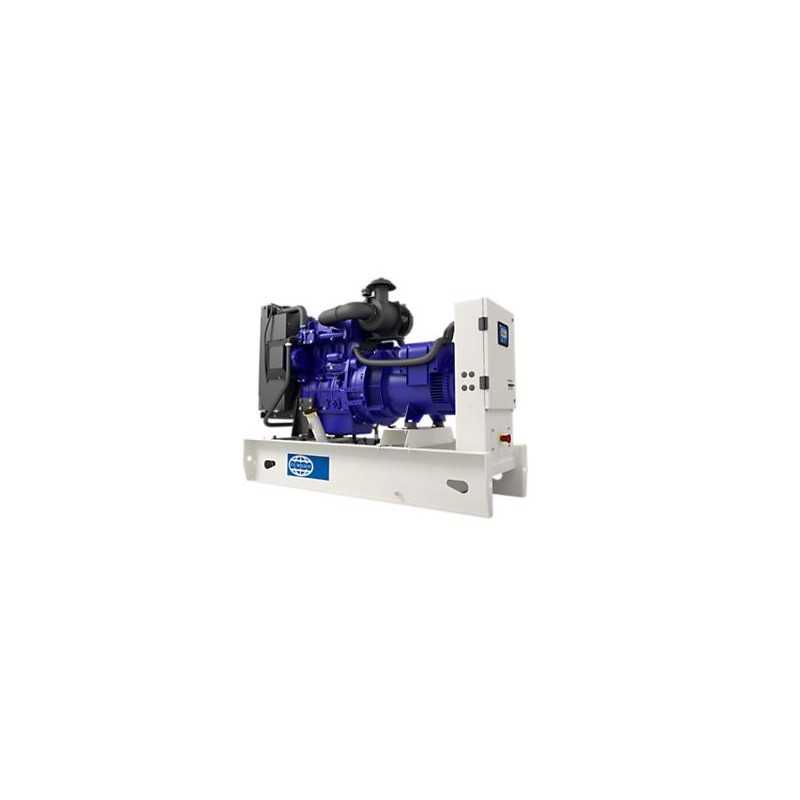

FG Wilson Diesel Power Generator P12-1S 11 kW - 12 kW without Housing

The 6.8 - 25 kVA range of generator sets is designed to power your every need. Suitable for use in diverse applications including construction, residential, retail and telecommunications, this range has been redesigned for optimum performance in some of the harshest and most remote environments. Available with a metal or polymer enclosure offering, this range is designed to withstand the test of time.

Benefits

Up To 2000L Extended Capacity Fuel Tanks

Larger fuel tanks allow for longer periods of time between refueling

As Low As 57 dBA Super silent enclosures

Super Silent enclosures offer excellent sound attenuation with sound as low as 57 dBA at 7m

Telematics Ready Stay In Control Telematics Ready

Telematics availability allows for remote access to genset controls ensuring your always in control were ever you are

Product Specifications For P12-1S

Generator Set Specifications

Minimum Rating 11 kVA / 11 kW

Maximum Rating 12 kVA / 12 kW

Emissions/Fuel Strategy Fuel Optimised

50 Hz Prime 11 kVA / 11 kW

50 Hz Standby 12 kVA / 12 kW

60 Hz Prime - / -

60 Hz Standby —

Frequency 50 Hz

Speed 1500 RPM

Voltage 220-240 Volts

50 Hz Prime Rating These ratings are applicable for supplying continuous electrical power (at variable load) in lieu of commercially purchased power. There is no limitation to the annual hours of operation and this model can supply 10% overload power for 1 hour in 12 hours.

60 Hz Prime Rating These ratings are applicable for supplying continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted on these ratings. The alternator on this model is peak continuous rated (as defined in ISO 8528-3).

50 Hz Standby Rating Standard reference conditions 25°C (77°F) Air Inlet Temp, 100m (328 ft) A.S.L. 30% relative humidity. Fuel consumption data at full load with diesel fuel with specific gravity of 0.85 and conforming to BS2869: 1998, Class A2.

Engine Specifications

Engine Model Perkins® 403A-15G2

Bore 84 mm (3.3 in)

Stroke 90 mm (3.5 in)

Governor Type Mechanical

Displacement 1.5L (91.3 cu. in)

Compression Ratio 22.5:01
