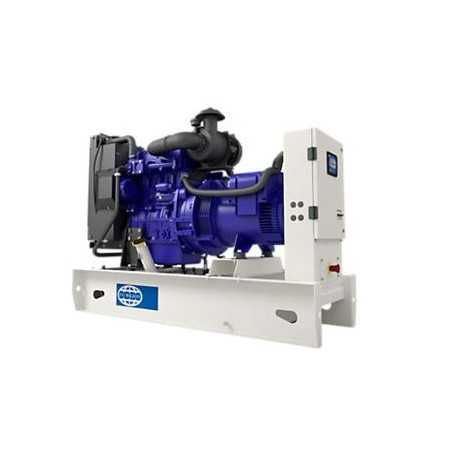

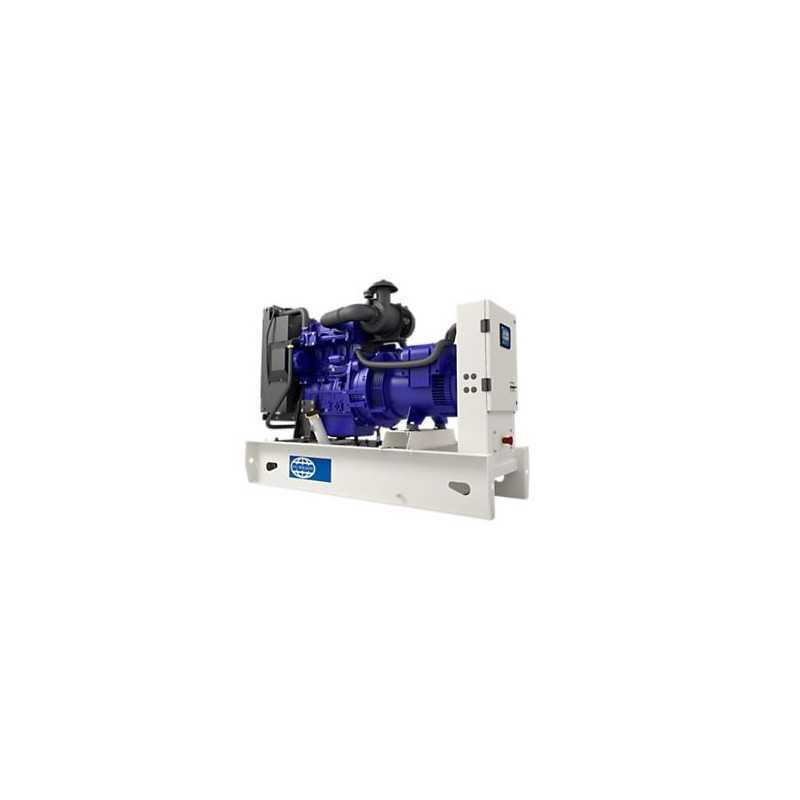

FG Wilson Diesel Power Generator P16-1: 11.6 kW - 12.8 kW, Robust Power Solution

The FG Wilson Diesel Power Generator P16-1 is a versatile and reliable solution for your power generation needs. Designed to perform in challenging environments, this generator set is perfect for a wide range of applications including construction, residential, retail, and telecommunications.

This generator is part of the 6.8 - 25 kVA range, known for its durability and adaptability. It is available with both metal and polymer enclosures, ensuring longevity and protection against the elements.

Key Benefits

• Up To 2000L Extended Capacity Fuel Tanks: Enjoy longer operational periods without the need for frequent refueling.
• As Low As 57 dBA Super Silent Enclosures: Experience exceptional sound attenuation, with noise levels as low as 57 dBA at 7 meters.
• Telematics Ready: Access and control your generator remotely, ensuring you are always in charge, no matter where you are.

Product Specifications for P16-1

Generator Set Specifications

• Minimum Rating: 14.5 kVA / 11.6 kW
• Maximum Rating: 16 kVA / 12.8 kW
• Emissions/Fuel Strategy: Fuel Optimised
• Frequency: 50 Hz
• Speed: 1500 RPM
• Voltage: 220-240 Volts

50 Hz Prime Rating: These ratings allow for continuous electrical power supply (at variable load) without annual operational limits, with a 10% overload capacity for 1 hour in every 12 hours.

60 Hz Prime Rating: Suitable for continuous power supply during utility failures. No overload is permitted, and the alternator is peak continuous rated as per ISO 8528-3.

50 Hz Standby Rating: Standard conditions include 25°C (77°F) air inlet temperature, 100m (328 ft) A.S.L., and 30% relative humidity. Fuel consumption data is based on diesel fuel with specific gravity conforming to BS2869: 1998, Class A2.

Engine Specifications

• Engine Model: Perkins® 403A-15G2
• Bore: 84 mm (3.3 in)
• Stroke: 90 mm (3.5 in)
• Governor Type: Mechanical
• Displacement: 1.5l (91.3 cu. in)
• Compression Ratio: 22.5:1
