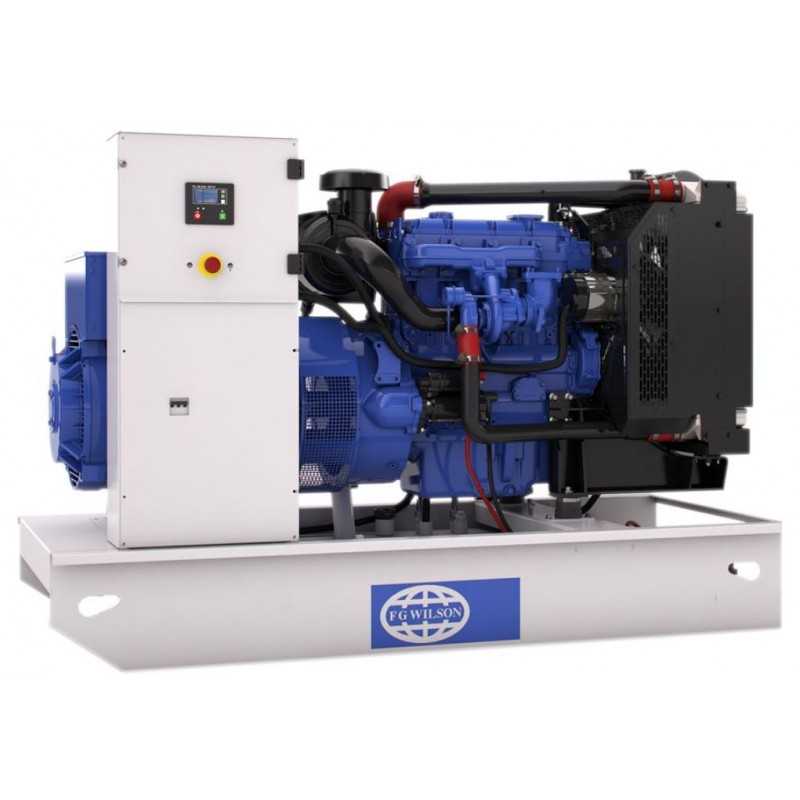

FG Wilson Diesel Power Generator P26-3S 24 kW - 30 kW without Housing
13989 $ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description
The 24 - 220 kVA range provides reliable power for today's world with a competitive offering that delivers everything you need. Providing unrivalled quality, the 24 - 220 kVA range of products offers a trusted performance with an enhanced choice of options, optimising the range for a variety of diverse applications and environments. Designed with the demands of today's world in mind, this range will deliver power solutions in all sectors, from industry and retail to finance and healthcare.
Benefits
Fuel Optimised Low running costs
Designed to deliver optimal fuel economy
Enhanced Choice of options
Optimising the range for a variety of diverse applications and environments
Product Specifications For P26-3S
Generator Set Specifications
Minimum Rating 24 kVA / 24 kW
Maximum Rating 30 kVA / 30 kW
Emissions/Fuel Strategy Fuel Optimised
50 Hz Prime 24 kVA / 24 kW
50 Hz Standby 26 kVA / 26 kW
60 Hz Prime - / -
Frequency 50 / 60 Hz
Speed 1500 or 1800 RPM
Voltage 220-240 Volts
50 Hz Prime Rating These ratings are applicable for supplying continuous electrical power (at variable load) in lieu of commercially purchased power. There is no limitation to the annual hours of operation and this model can supply 10% overload power for 1 hour in 12 hours.
60 Hz Prime Rating These ratings are applicable for supplying continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted on these ratings. The alternator on this model is peak continuous rated (as defined in ISO 8528-3).
50 Hz Standby Rating Standard reference conditions 25°C (77°F) Air Inlet Temp, 100m (328 ft) A.S.L. 30% relative humidity. Fuel consumption data at full load with diesel fuel with specific gravity of 0.85 and conforming to BS2869: 1998, Class A2.
Engine Specifications
Engine Model Perkins® 1106A-70TAG4
Bore 105 mm (4.1 in)
Stroke 135 mm (5.3 in)
Governor Type Mechanical
Displacement 7.0l (427.8 cu. in)
Compression Ratio 19.25:1
Data sheet
Buy a generator in Poland
The cost of delivery is calculated according to the place of delivery in Poland, Ukraine and European Union.
