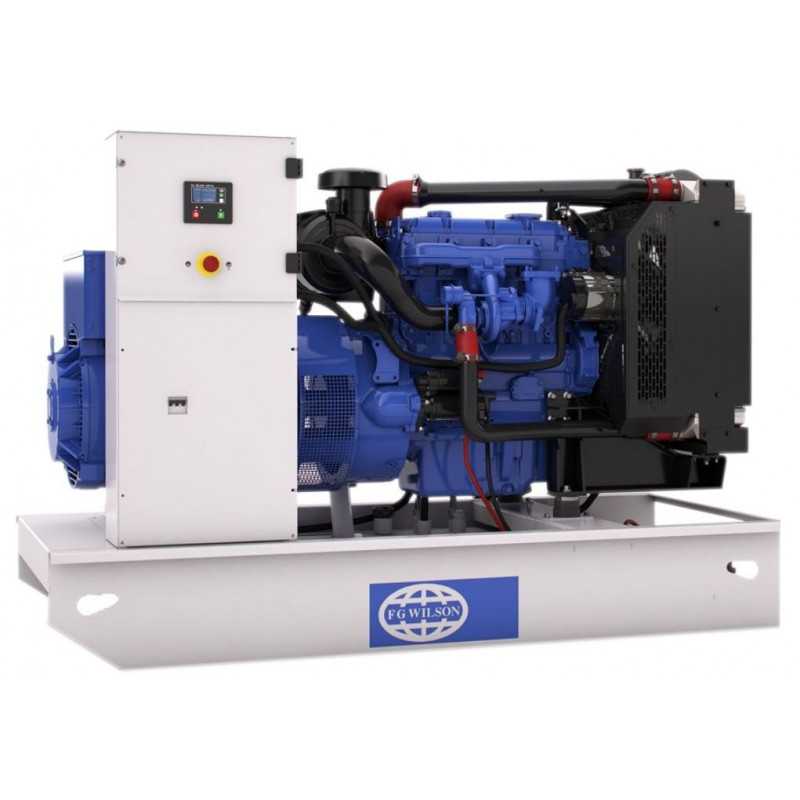

FG Wilson Diesel Power Generator P40-3S 36 kW - 45 kW (No Housing)

The 24 - 220 kVA range provides reliable power for today's world with a competitive offering that delivers everything you need. Providing unrivalled quality, the 24 - 220 kVA range of products offers a trusted performance with an enhanced choice of options, optimising the range for a variety of diverse applications and environments. Designed with the demands of today's world in mind, this range will deliver power solutions in all sectors, from industry and retail to finance and healthcare.

Benefits

Low running costs Fuel Optimised Low running costs

Designed to deliver optimal fuel economy

Choice of Options Enhanced Choice of options

Optimising the range for a variety of diverse applications and environments

Product Specifications For P40-3S

Generator Set Specifications

Minimum Rating 36 kVA / 36 kW

Maximum Rating 45 kVA / 45 kW

Emissions/Fuel Strategy Fuel Optimised

50 Hz Prime 36 kVA / 36 kW

50 Hz Standby 40 kVA / 40 kW

60 Hz Prime 40 kVA / 40 kW

60 Hz Standby 45 kVA / 45 kW

Frequency 50 / 60 Hz

Speed 1500 or 1800 RPM

Voltage 220-240 Volts

50 Hz Prime Rating These ratings are applicable for supplying continuous electrical power (at variable load) in lieu of commercially purchased power. There is no limitation to the annual hours of operation and this model can supply 10% overload power for 1 hour in 12 hours.

60 Hz Prime Rating These ratings are applicable for supplying continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted on these ratings. The alternator on this model is peak continuous rated (as defined in ISO 8528-3).

50 Hz Standby Rating Standard reference conditions 25°C (77°F) Air Inlet Temp, 100m (328 ft) A.S.L. 30% relative humidity. Fuel consumption data at full load with diesel fuel with specific gravity of 0.85 and conforming to BS2869: 1998, Class A2.

Engine Specifications

Engine Model Perkins® 1103A-33TG1

Bore 105 mm (4.1 in)

Stroke 127 mm (5 in)

Governor Type Mechanical

Displacement 3.3l (201.4 cu. in)

Compression Ratio 17.25:1
