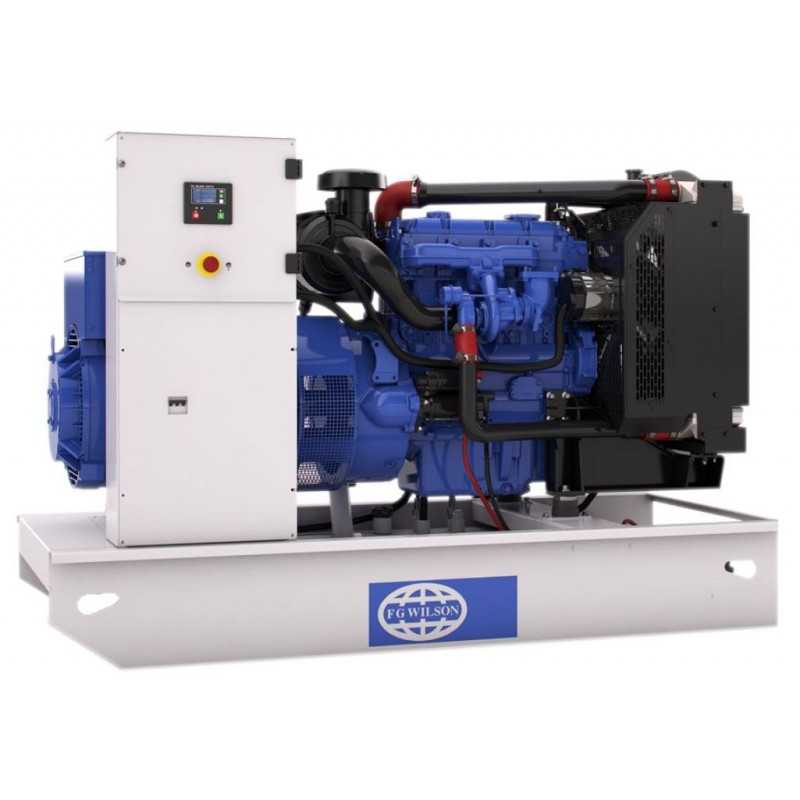

FG Wilson P50-4 Diesel Power Generator 36 kW - 40 kW without Housing

Providing unrivalled quality, the 24 – 220 kVA range of products offers a trusted performance with an enhanced choice of options, optimising the range for a variety of diverse applications and environments.

Benefits

Low running costs Fuel Optimised Low running costs

Designed to deliver optimal fuel economy

Choice of Options Enhanced Choice of options

Optimising the range for a variety of diverse applications and environments

Product Specifications For P50-4

Generator Set Specifications

Minimum Rating 45 kVA / 36 kW

Maximum Rating 50 kVA / 40 kW

Emissions/Fuel Strategy Fuel Optimised

50 Hz Prime 45 kVA / 36 kW

50 Hz Standby 50 kVA / 40 kW

60 Hz Prime - / -

Frequency 50 Hz

Speed 1500 RPM

Voltage 220-415 Volts

50 Hz Prime Rating These ratings are applicable for supplying continuous electrical power (at variable load) in lieu of commercially purchased power. There is no limitation to the annual hours of operation and this model can supply 10% overload power for 1 hour in 12 hours.

60 Hz Prime Rating These ratings are applicable for supplying continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted on these ratings. The alternator on this model is peak continuous rated (as defined in ISO 8528-3).

50 Hz Standby Rating Standard reference conditions 25°C (77°F) Air Inlet Temp, 100m (328 ft) A.S.L. 30% relative humidity. Fuel consumption data at full load with diesel fuel with specific gravity of 0.85 and conforming to BS2869: 1998, Class A2.

Engine Specifications

Engine Model Perkins® 1103C-33TG2/3

Bore 105 mm (4.1 in)

Stroke 127 mm (5 in)

Governor Type Mechanical

Displacement 3.3l (201.4 cu. in)

Compression Ratio 18.23:1
