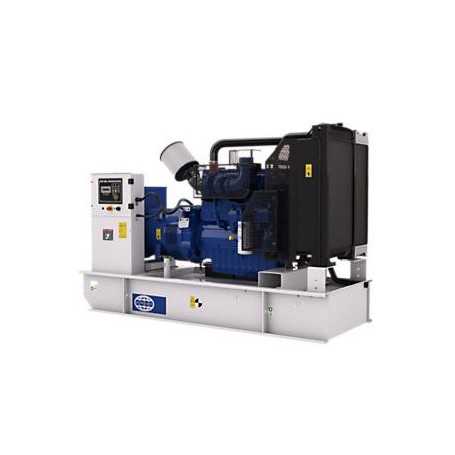

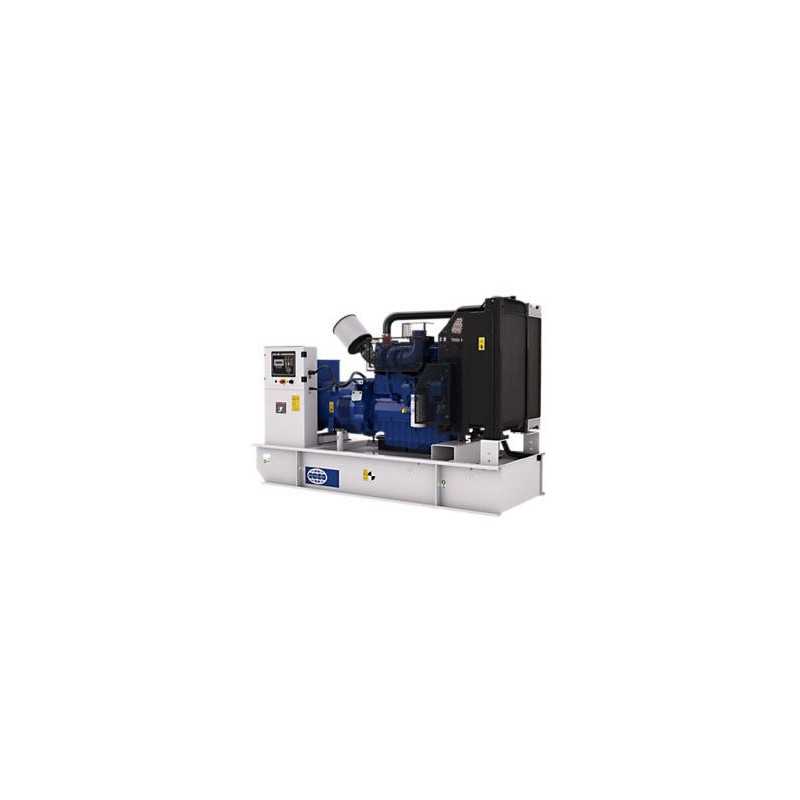

FG Wilson Diesel Power Generator P249-5 180 kW - 200 kW without Housing

225 to 375 kVA Diesel Generator Sets. As your power needs increase, this cost effective generator set range delivers a powerful performance with world class power density. Compact and durable, they can easily be manoeuvred into position, whatever the installation conditions.

Product Specifications For P249-5

Generator Set Specifications

Minimum Rating 225 kVA / 180 kW

Maximum Rating 250 kVA / 200 kW

Emissions/Fuel Strategy Fuel Optimised

60 Hz Prime 225 kVA / 180 kW

60 Hz Standby 250 kVA / 200 kW

Frequency 60 Hz

Speed 1800 RPM

Voltage 127-480 Volts

Engine Specifications

Engine Model Perkins® 1506A-E88TAG2

Bore 112 mm (4.4 in)

Stroke 149.0mm (5.9 in)

Governor Type Electronic

Displacement 8.8l (537 cu. in)

Compression Ratio 16.1:1
