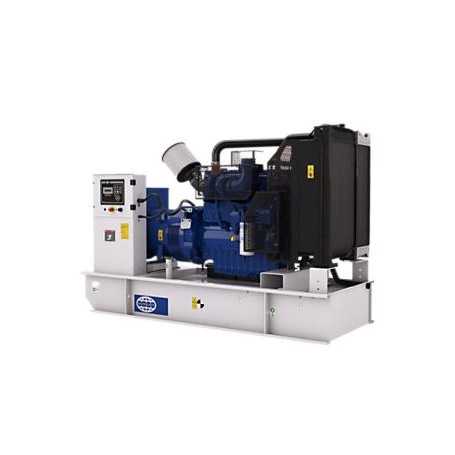

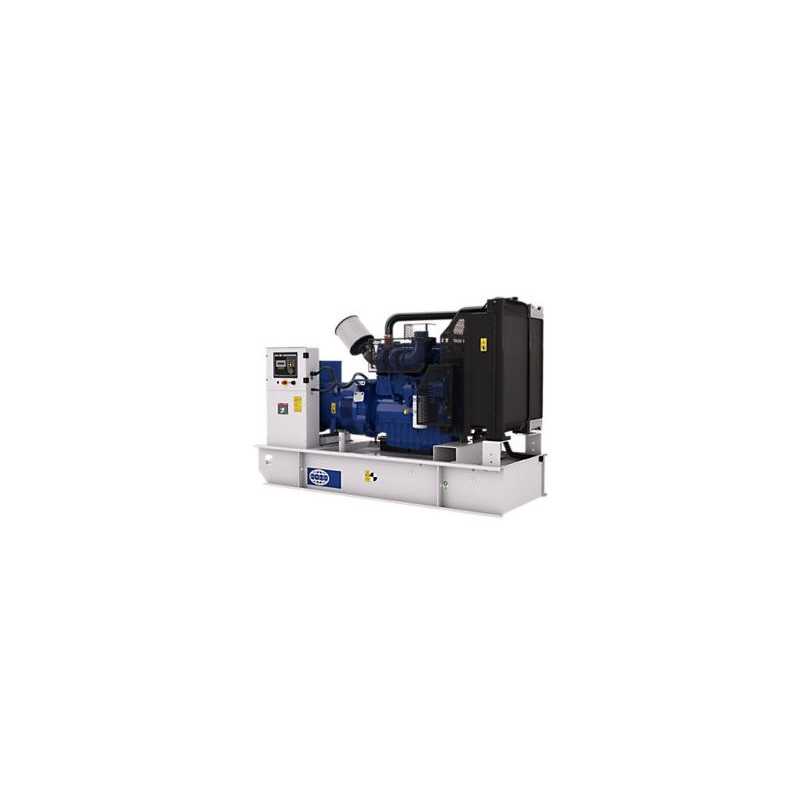

FG Wilson P313-5 Diesel Power Generator Set (225 kW - 250 kW) - High Performance Without Housing

Introducing the FG Wilson P313-5 Diesel Power Generator, a robust and compact solution for your increasing power needs. This generator set, with a capacity ranging from 225 kW to 250 kW, offers exceptional performance and world-class power density. Designed for flexibility, it can be easily maneuvered to fit various installation conditions, ensuring reliability and efficiency wherever you need it.

Key Features

• Power Range: 225 kW to 250 kW
• Compact and Durable: Ideal for diverse installation environments
• World-Class Power Density: Efficient and powerful performance

Product Specifications for P313-5

Generator Set Specifications

• Minimum Rating: 281 kVA / 225 kW
• Maximum Rating: 313 kVA / 250 kW
• Emissions/Fuel Strategy: Fuel Optimised
• 60 Hz Prime Rating: 281 kVA / 225 kW
• 60 Hz Standby Rating: 313 kVA / 250 kW
• Frequency: 60 Hz
• Speed: 1800 RPM
• Voltage Range: 127-480 Volts

Engine Specifications

• Engine Model: Perkins® 1506A-E88TAG3
• Bore: 112 mm (4.4 in)
• Stroke: 149 mm (5.9 in)
• Governor Type: Electronic
• Displacement: 8.8 liters (537 cu. in)
• Compression Ratio: 16.1:1

Choose the FG Wilson P313-5 Diesel Power Generator for a reliable, efficient, and powerful energy solution tailored to meet your dynamic power requirements.
