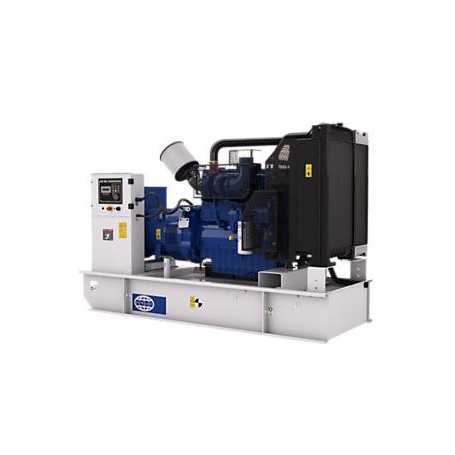

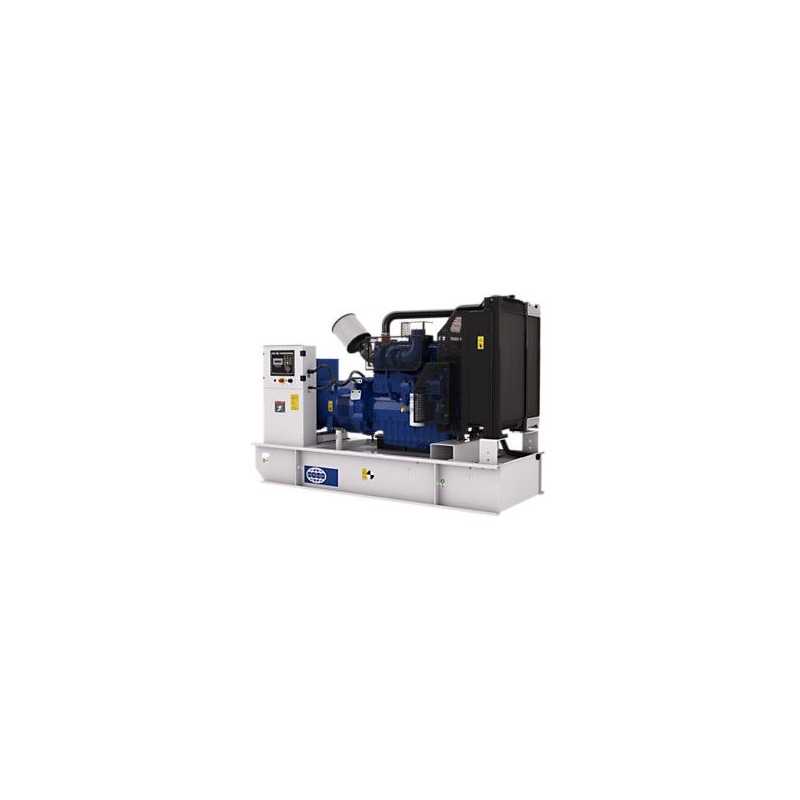

FG Wilson Diesel Power Generator P344-5 250 kW - 275 kW without Housing

FG Wilson Diesel Power Generator P344-5: High-Performance 250 kW - 275 kW Diesel Generator

The FG Wilson Diesel Power Generator P344-5 offers a robust and efficient solution for your increasing power needs. Designed to deliver powerful performance with world-class power density, these generator sets are perfect for a variety of installation conditions. Their compact and durable design ensures that they can be easily maneuvered into position, making them ideal for both temporary and permanent installations.

Key Features:

• Power Output Range: 225 to 375 kVA
• Compact and Durable for easy installation
• Fuel Optimised for Cost Efficiency
• World-Class Power Density

Product Specifications for P344-5:

Generator Set Specifications

• Minimum Rating: 313 kVA / 250 kW
• Maximum Rating: 344 kVA / 275 kW
• Emissions/Fuel Strategy: Fuel Optimised
• 60 Hz Prime: 313 kVA / 250 kW
• 60 Hz Standby: 344 kVA / 275 kW
• Frequency: 60 Hz
• Speed: 1800 RPM
• Voltage: 127-480 Volts

Engine Specifications

• Engine Model: Perkins® 1506A-E88TAG4
• Bore: 112 mm (4.4 in)
• Stroke: 149 mm (5.9 in)
• Governor Type: Electronic
• Displacement: 8.8l (537 cu. in)
• Compression Ratio: 16.1:1

This generator set is designed to provide you with reliable power, ensuring that your operations continue smoothly without interruption. Whether for industrial, commercial, or residential applications, the FG Wilson Diesel Power Generator P344-5 is a smart choice for dependable and efficient power generation.
