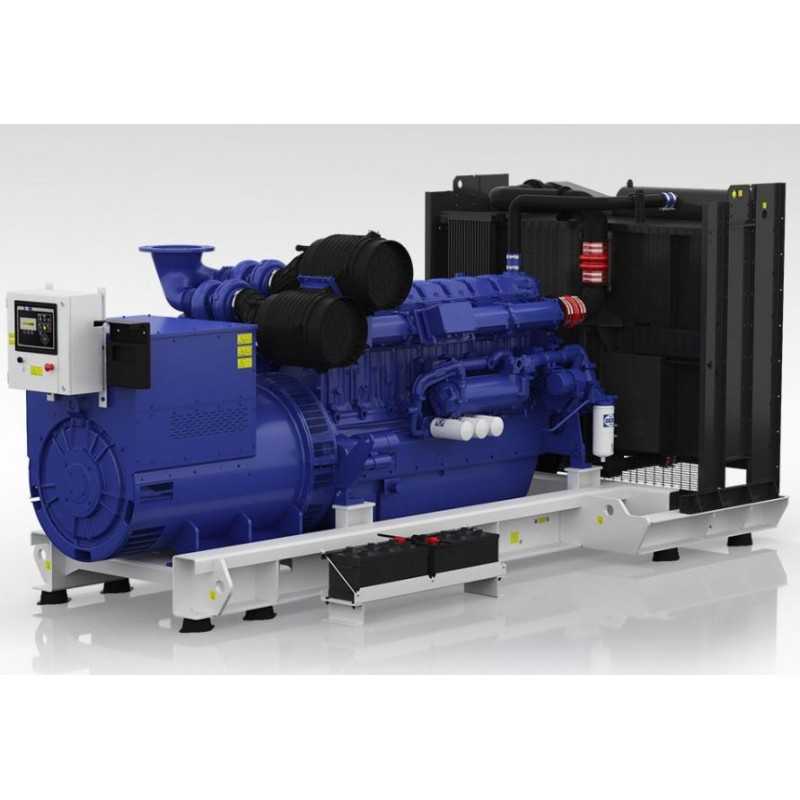

FG Wilson Diesel Power Generator P1001-1 720 kW - 800 kW Without Housing

Proven in the field, this range of generator sets are capable of providing reliable power for critical applications including: mini power stations, data centres, large factories, airports, hospitals, large retail stores, and the financial sector. A 50oC package option is available to ensure efficient operation in high ambient temperatures. Custom-built weatherproof and acoustic enclosures can be tailored to suit any application. Providing personnel access and separate components for cooling, they make generator set installation and maintenance as quick and easy as possible.

Product Specifications For P1001-1

Generator Set Specifications

Minimum Rating 900 kVA / 720 kW

Maximum Rating 1000 kVA / 800 kW

Emissions/Fuel Strategy Fuel Optimised

60 Hz Prime 900 kVA / 720 kW

60 Hz Standby 1000 kVA / 800 kW

Frequency 60 Hz

Speed 1800 RPM

Voltage 220-480 Volts

Engine Specifications

Engine Model Perkins® 4008TAG1

Bore 160 mm (6.3 in)

Stroke 190 mm (7.5 in)

Governor Type Electronic

Displacement 30.6l (1864.9 cu. in)

Compression Ratio 13.6:1
