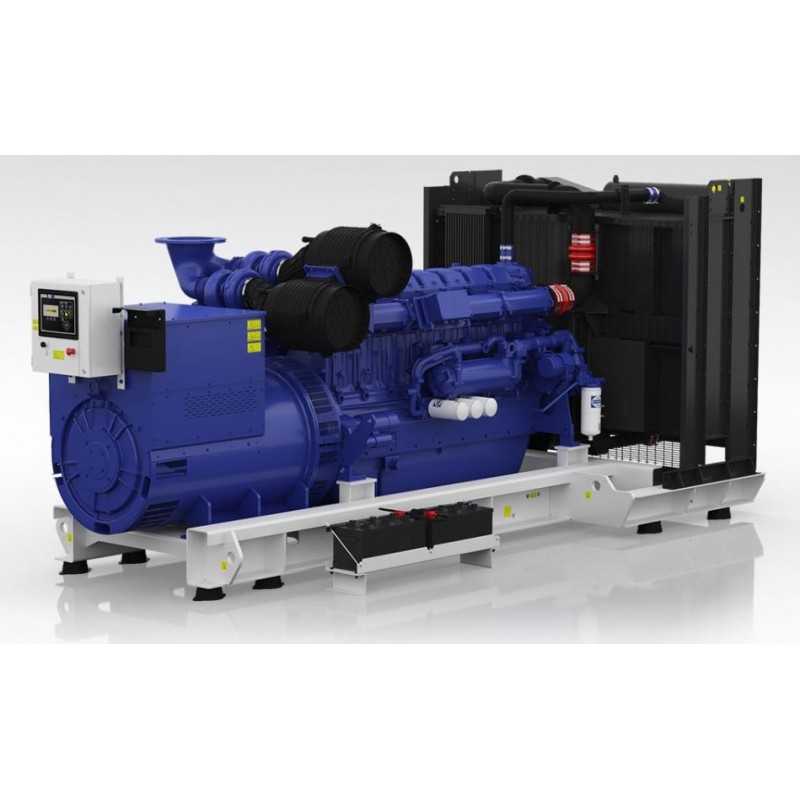

FG Wilson P1100-1 Power Generator Diesel 800 kW - 880 kW (No Housing)

Proven in the field, this range of generator sets are capable of providing reliable power for critical applications including: mini power stations, data centres, large factories, airports, hospitals, large retail stores, and the financial sector. A 50oC package option is available to ensure efficient operation in high ambient temperatures. Custom-built weatherproof and acoustic enclosures can be tailored to suit any application. Providing personnel access and separate components for cooling, they make generator set installation and maintenance as quick and easy as possible.

Product Specifications For P1100-1

Generator Set Specifications

Minimum Rating 1000 kVA / 800 kW

Maximum Rating 1100 kVA / 880 kW

Emissions/Fuel Strategy Fuel Optimised

50 Hz Prime 1000 kVA / 800 kW

50 Hz Standby 1100 kVA / 880 kW

Frequency 50 Hz

Speed 1500 RPM

Voltage 220-415 Volts

Engine Specifications

Engine Model Perkins® 4008TAG2A

Bore 160 mm (6.3 in)

Stroke 190 mm (7.5 in)

Governor Type Electronic

Displacement 30.6l (1864.9 cu. in)

Compression Ratio 13.6:1
