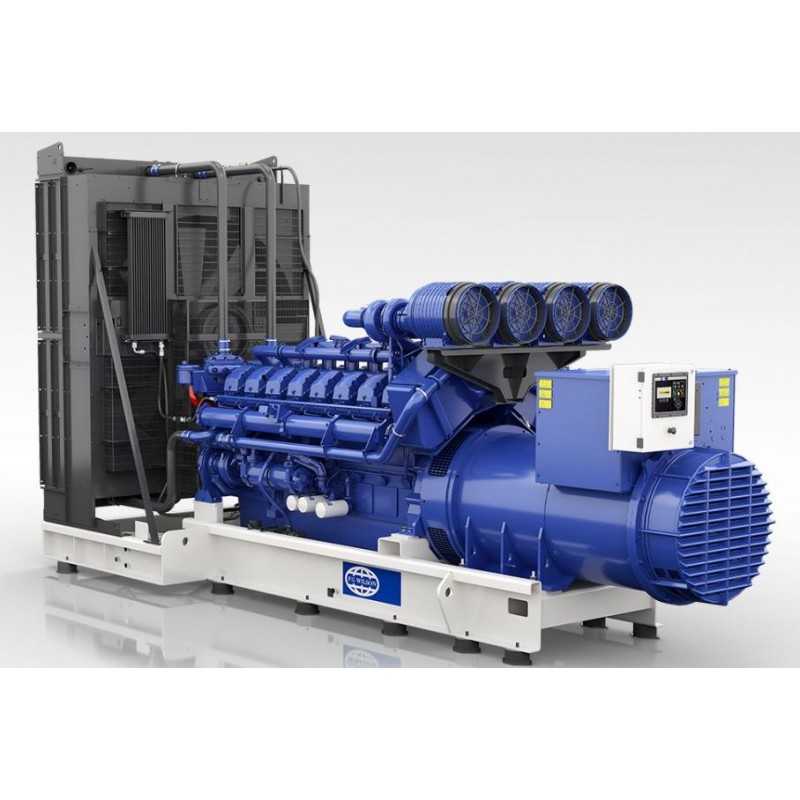

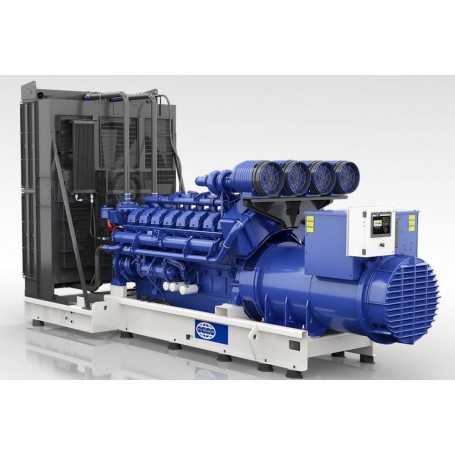

FG Wilson Diesel Power Generator P2250-3 1600 kW - 1800 kW (No Housing)

Proven in the field, this range of generator sets are capable of providing reliable power for critical applications including: mini power stations, data centres, large factories, airports, hospitals, large retail stores, and the financial sector. A 50oC package option is available to ensure efficient operation in high ambient temperatures. Custom-built weatherproof and acoustic enclosures can be tailored to suit any application. Providing personnel access and separate components for cooling, they make generator set installation and maintenance as quick and easy as possible.

Product Specifications For P2250-3

Generator Set Specifications

Minimum Rating 2000 kVA / 1600 kW

Maximum Rating 2250 kVA / 1800 kW

Emissions/Fuel Strategy Fuel Optimised

50 Hz Prime 2000 kVA / 1600 kW

50 Hz Standby 2250 kVA / 1800 kW

Frequency 50 Hz

Speed 1500 RPM

Voltage 220-415 Volts

Engine Specifications

Engine Model Perkins® 4016-61TRG2

Bore 160 mm (6.3 in)

Stroke 190 mm (7.5 in)

Governor Type Electronic

Displacement 61.1l (3730 cu. in)

Compression Ratio 13.0:1
