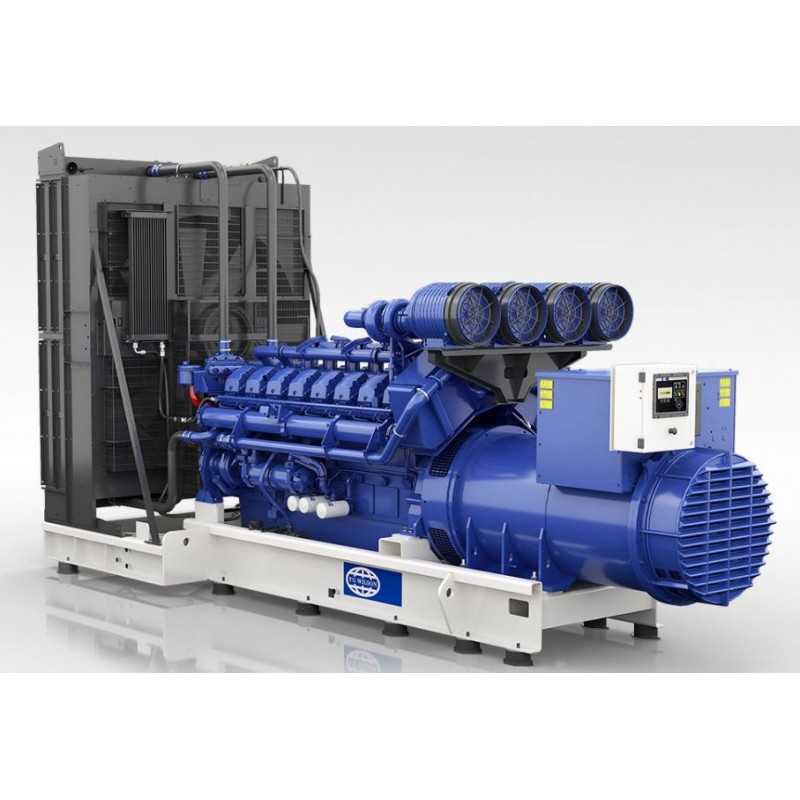

FG Wilson Diesel Power Generator P2500-3: High-Capacity Power Solution (1800 kW - 2000 kW)

Experience unparalleled reliability with the FG Wilson Diesel Power Generator P2500-3, expertly engineered for critical applications such as mini power stations, data centers, large-scale manufacturing, airports, hospitals, expansive retail outlets, and the financial sector. This generator set is designed to deliver dependable power, even in challenging environments.

For regions with high ambient temperatures, a 50°C package option is available, ensuring seamless operation. Additionally, custom-built weatherproof and acoustic enclosures are offered, designed for easy installation and maintenance. These enclosures provide personnel access and separate cooling components, streamlining the process for users.

Product Specifications for P2500-3

Generator Set Specifications

• Minimum Rating: 2250 kVA / 1800 kW
• Maximum Rating: 2500 kVA / 2000 kW
• Emissions/Fuel Strategy: Fuel Optimised
• 50 Hz Prime: 2250 kVA / 1800 kW
• 50 Hz Standby: 2500 kVA / 2000 kW
• Frequency: 50 Hz
• Speed: 1500 RPM
• Voltage: 220-415 Volts

Engine Specifications

• Engine Model: Perkins® 4016-61TRG3
• Bore: 160 mm (6.3 in)
• Stroke: 190 mm (7.5 in)
• Governor Type: Electronic
• Displacement: 61.1l (3730 cu. in)
• Compression Ratio: 13.0:1

This high-capacity generator is your solution for continuous and reliable power, offering efficiency and adaptability to meet the demands of your critical infrastructure. Whether it's for industrial, commercial, or emergency applications, the FG Wilson P2500-3 is built to perform.
