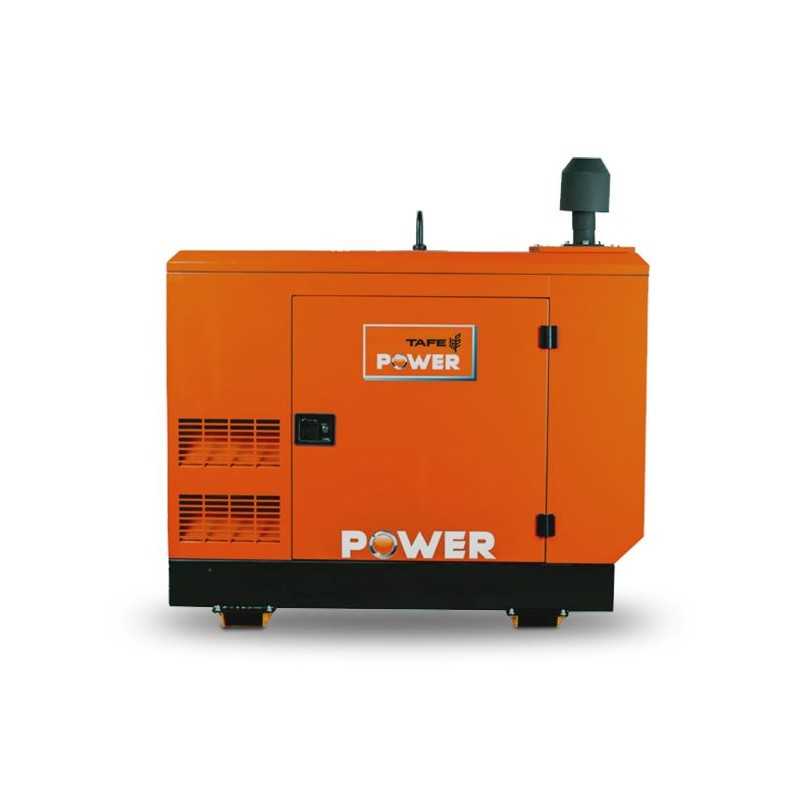

TAFE Power TAF-P-7.5A Power Generator
zoom_out_map
chevron_left chevron_right

TAFE Power TAF-P-7.5A Power Generator

The TAF-P-7.5A Diesel Power Generator by TAFE is a compact yet robust solution for all your power needs. Boasting a capacity of 7.5 kVA, it's an excellent choice for prime power applications. Meticulously designed for your convenience, it features optional AMF/Manual control panels. Whether you're a small business owner, a homeowner, or need power for an outdoor event, this generator is a practical choice. Aside from its easy installation process, the TAF-P-7.5A stands out due to its lightweight nature. Manufactured using top-tier components, it guarantees durability. As a bonus, it incorporates acoustic foam insulation, effectively reducing the operational noise. Experience reliable power with the TAF-P-7.5A.
7461.18 $


6066 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

Power generators are essential tools for many industries, including construction, mining, and agriculture. They are also commonly used in residential and commercial settings as a backup power source in case of a blackout or other emergency. One such power generator is the TAF-P-7.5A, manufactured by TAFE Power.

The TAF-P-7.5A is a diesel-powered generator with a maximum output of 7.5 kVA or 6 kW. This means that it can provide a maximum current of 7.5 amps at a voltage of 1000 volts, or 6 amps at a voltage of 120/240 volts. The generator is equipped with a water-cooled engine and a brushless alternator, which helps to ensure reliable and efficient operation. The engine is also designed to minimize noise and vibration, making it suitable for use in residential areas.

One of the key features of the TAF-P-7.5A is its digital control panel, which allows the user to monitor and control various parameters, such as voltage, frequency, and engine speed. This makes it easier to ensure that the generator is operating at the desired level and to adjust settings as needed.

Another advantage of the TAF-P-7.5A is its versatility. It is suitable for both residential and commercial use, and can be used to power a wide range of equipment and appliances, including air conditioners, refrigerators, and power tools. It is also designed to be easy to transport, with wheels and a handle for easy maneuverability.

In addition to its technical features, the TAF-P-7.5A is also designed with safety in mind. It features automatic voltage regulation, overload protection, and a low oil shutdown system, which helps to protect both the generator and the equipment being powered.

Overall, the TAF-P-7.5A is a high-quality and versatile power generator that is suitable for a wide range of applications. Its combination of reliable performance, ease of use, and safety features make it a popular choice for both residential and commercial users. Whether you need a backup power source for your home or a reliable generator for your business, the TAF-P-7.5A is a solid choice.TAF-P-7.5A

Technical Specification

Power 7.5 kVA

Duty Prime

Control Panel Options Available for AMF / Manual Control

Acoustic Insulation PU FR - Acoustic Foam

Dimensions (Length) 1500 mm

Dimensions (Breadth) 850 mm

Dimensions (Height) 1250 mm

Fuel Tank Capacity * 50 L

Weight ** 700 kg

ENGINE

Engine Manufacturer TAFE Motors and Tractors Limited

Engine Brand TAFE POWER

Engine Model 198 ES

Cylinders 1

Aspiration Naturally Aspirated

Engine BHP (gross) 11.5

Reference Standard Engine - BS: 5514, ISO : 3046, IS 10000, Genset - ISO: 8528

Displacement 981 cc

Compression Ratio 17.5:1

Type / Class of Governing Mechanical / A1 (As per BS 5514)

Bore x Stroke 100 x 125 mm

Type of Cooling Air Cooled

Lub Oil Sump Capacity (With Filters) 5

Engine Electrical System 12 Volts DC

ALTERNATOR

Brand Stamford / Leroy Somer

Phase 1 Phase / 3Phase

Voltage 220, 230, 240 V AC / 380, 400, 415 V AC

Power Alternator Type Single Bearing, Brushless, Single / Three Phase, Insulation Class H

Power Factor 0.8 lag

Rated Speed / Frequency 1500 RPM, 50 Hz / 1800 RPM, 60 Hz

* Fuel tank can be customized as per requirement

** 1. The weight of the Diesel Generator is approximate (With engine lubricating oil and coolant as applicable, but without diesel fill)

Data sheet

R0KMG1WGFT
