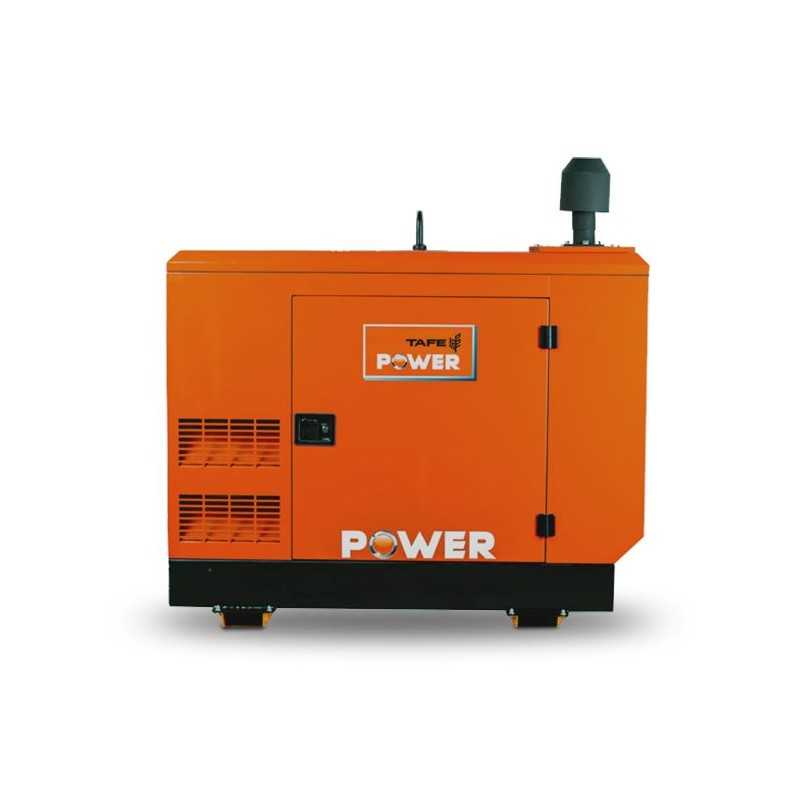

TAFE TAF-P-10A Power Generator

TAFE TAF-P-10A High-Capacity Power Generator

The TAFE TAF-P-10A Power Generator is a robust and reliable solution, designed to meet high-capacity power needs for both residential and commercial applications. With a maximum output of 10 kVA, this generator is perfect for ensuring uninterrupted power supply during blackouts or emergencies.

Key Features:

• Power Output: 10 kVA
• Usage: Ideal for residential and commercial use
• Control Panel Options: Available with AMF (Automatic Mains Failure) or manual control
• Noise Reduction: Equipped with PU FR - Acoustic Foam for acoustic insulation
• Dimensions: 1700 mm (L) x 900 mm (B) x 1375 mm (H)
• Fuel Tank Capacity: 65 L (customizable)
• Weight: 925 kg (approximate)

Engine Specifications:

• Manufacturer: TAFE Motors and Tractors Limited
• Brand: TAFE POWER
• Model: 222 ES
• Cylinders: 1
• Aspiration: Naturally Aspirated
• Gross BHP: 18.7
• Standards Compliance: BS: 5514, ISO: 3046, IS 10000, ISO: 8528
• Displacement: 1557 cc
• Compression Ratio: 17.8:1
• Cooling Type: Air Cooled
• Electrical System: 12 Volts DC

Alternator Specifications:

• Brand: Stamford / Leroy Somer
• Phase Options: Single-phase or Three-phase
• Voltage Options:
  • Single-Phase: 220V, 230V, 240V AC
  • Three-Phase: 380V, 400V, 415V AC
• Type: Single Bearing, Brushless
• Insulation Class: H
• Power Factor: 0.8 lag
• Rated Speed/Frequency: 1500 RPM, 50 Hz / 1800 RPM, 60 Hz

The TAFE TAF-P-10A generator is engineered to deliver high performance with a sturdy build, advanced features, and efficient operation. It's the ideal choice for anyone looking for a durable and versatile generator that can handle various power requirements with ease.
