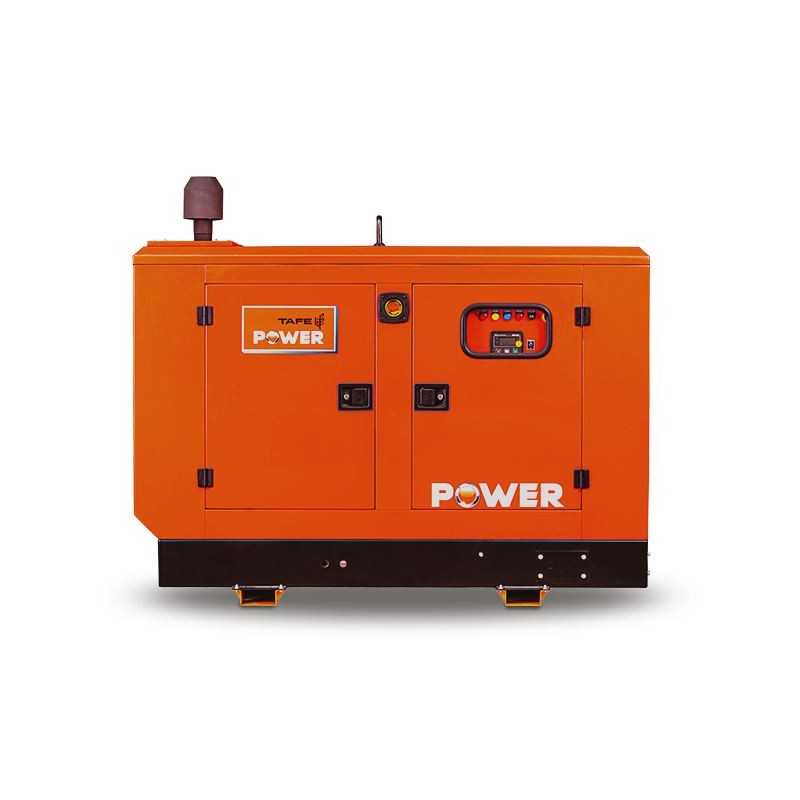

TAFE Power TAF-P-30W Power Generator

The TAF-P-30W is a robust power generator engineered by TAFE Power, optimized for a prime duty of 30 kVA. Designed for versatility, it offers either AMF or manual control options. To keep operational noise minimal, this unit includes acoustic insulation. The fuel tank can hold up to 100 L, ensuring longer functioning hours without refueling. The generator is driven by a TAFE POWER engine, outfitted with 3 cylinders, turbocharged inter-cooled aspiration, and a displacement of 3298 cc. Alternator options are either Stamford or Leroy Somer, providing a power factor of 0.8 lag and a rated speed/frequency of 1500 RPM/50 Hz or 1800 RPM/60 Hz. This generator proves efficient across various settings, from construction sites and hospitals to data centers.
11774.05 $
Tax included

9572.4 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The TAF-P-30W power generator is a reliable and high-performing generator designed to deliver a prime power of 30 kVA. It is ideal for use in various applications such as residential, commercial, and industrial settings.

The generator comes with options for AMF (Automatic Mains Failure) or manual control panel, which ensures efficient operation and easy management of the unit. The unit's acoustic insulation features PU FR - Acoustic Foam that helps to reduce noise emissions, making it an excellent choice for use in noise-sensitive areas.

The generator's dimensions are 2150 mm in length, 950 mm in breadth, and 1425 mm in height. It has a fuel tank capacity of 80 L and weighs approximately 1200 kg. Its engine is manufactured by TAFE Motors and Tractors Limited, with a model of 461 ES, featuring three cylinders and a naturally aspirated aspiration. The engine has a gross engine BHP of 38.1 and a displacement of 3298 cc.

The TAF-P-30W generator has an engine reference standard of BS: 5514, ISO: 3046, IS 10000, while its generator reference standard is ISO: 8528. The engine's governing type is mechanical, with an A1 class, as per BS 5514. The engine bore x stroke is 108 x 120 mm, with a compression ratio of 18.5:1. It features water cooling type and has a Lub Oil Sump Capacity (With Filters) of 7.1. The engine electrical system is 12 Volts DC.

The generator alternator is manufactured by Stamford or Leroy Somer and has a power factor of 0.8 lag. The power alternator type is single-bearing, brushless, and single/three-phase with an insulation class of H. It has a rated speed/frequency of 1500 RPM, 50 Hz / 1800 RPM, 60 Hz, and its phase options are 1 Phase / 3Phase, with voltage options of 220, 230, 240 V AC / 380, 400, 415 V AC.

In summary, the TAF-P-30W power generator is a high-quality, reliable, and efficient generator designed to meet various power needs. Its features make it an excellent choice for use in residential, commercial, and industrial settings.

TAF-P-30W

Technical Specification

Power 30 kVA

Duty Prime

Control Panel Options Available for AMF / Manual Control

Acoustic Insulation PU FR - Acoustic Foam

Dimensions (Length) 2150 mm

Dimensions (Breadth) 950 mm

Dimensions (Height) 1425 mm

Fuel Tank Capacity * 80 L

Weight ** 1200 kg

ENGINE

Engine Manufacturer TAFE Motors and Tractors Limited

Engine Brand TAFE POWER

Engine Model 461 ES

Cylinders 3

Aspiration Naturally Aspirated

Engine BHP (gross) 38.1

Reference Standard Engine - BS: 5514, ISO : 3046, IS 10000, Genset - ISO: 8528

Displacement 3298 cc

Compression Ratio 18.5:1

Type / Class of Governing Mechanical / A1 (As per BS 5514)

Bore x Stroke 108 x 120 mm

Type of Cooling Water Cooled

Lub Oil Sump Capacity (With Filters) 7.1

Engine Electrical System 12 Volts DC

ALTERNATOR

Brand Stamford / Leroy Somer

Phase 1 Phase / 3Phase

Voltage 220, 230, 240 V AC / 380, 400, 415 V AC

Power Alternator Type Single Bearing, Brushless, Single / Three Phase, Insulation Class H

Power Factor 0.8 lag

Rated Speed / Frequency 1500 RPM, 50 Hz / 1800 RPM, 60 Hz

* Fuel tank can be customized as per requirement

** 1. The weight of the Diesel Generator is approximate (With engine lubricating oil and coolant as applicable, but without diesel fill)
