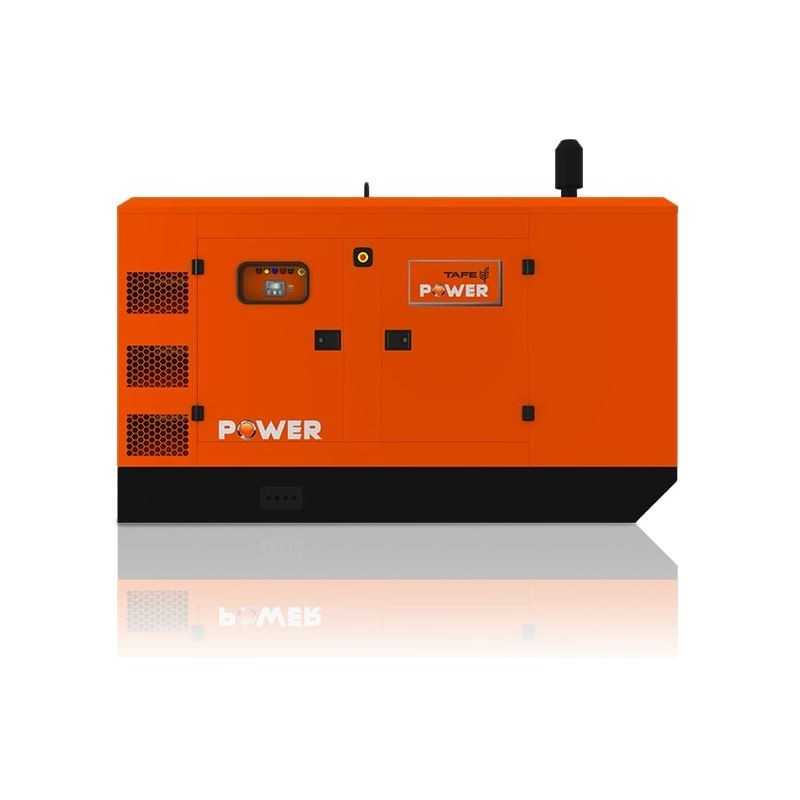

TAFE Power TAF-P-125W Generator

The TAF-P-125W is a diesel generator designed to provide a prime power output of 125 kVA. It comes with options for AMF or manual control panels and is equipped with acoustic insulation made of PU FR - Acoustic Foam to reduce noise during operation.

The generator has a length of 3000 mm, a breadth of 1300 mm, and a height of 1750 mm. It is fitted with a 250-liter fuel tank and has a weight of 2050 kg.

The TAF-P-125W is powered by a TAFE POWER engine model 1753 ES, which is a 4-cylinder turbocharged inter-cooled engine. It has a gross engine BHP of 160 and a displacement of 4910 cc. The engine is water-cooled and has a lubricant oil sump capacity of 18 liters. The generator's engine is equipped with a 12 Volts DC electrical system.

The alternator is manufactured by Stamford / Leroy Somer, providing single-bearing, brushless, single or three-phase power, and an insulation class of H. It has a power factor of 0.8 lag and a rated speed/frequency of 1500 RPM, 50 Hz/1800 RPM, 60 Hz. The generator provides a three-phase voltage of 380, 400, or 415 V AC.

TAF-P-125W

Technical Specification

Power 125 kVA

Duty Prime

Control Panel Options Available for AMF / Manual Control

Acoustic Insulation PU FR - Acoustic Foam

Dimensions (Length) 3000 mm

Dimensions (Breadth) 1300 mm

Dimensions (Height) 1750 mm

Fuel Tank Capacity * 250 L

Weight ** 2050 kg

ENGINE

Engine Manufacturer TAFE Motors and Tractors Limited

Engine Brand TAFE POWER

Engine Model 1753 ES

Cylinders 4

Aspiration Turbo Charged Inter-cooled

Engine BHP (gross) 160

Reference Standard Engine - BS: 5514, ISO : 3046, IS 10000, Genset - ISO: 8528

Displacement 4910 cc

Compression Ratio 17:1

Type / Class of Governing Mechanical / A1 (As per BS 5514)

Bore x Stroke 108 x 134 mm

Type of Cooling Water Cooled

Lub Oil Sump Capacity (With Filters) 18

Engine Electrical System 12 Volts DC

ALTERNATOR

Brand Stamford / Leroy Somer

Phase 3Phase

Voltage 380, 400, 415 V AC

Power Alternator Type Single Bearing, Brushless, Single / Three Phase, Insulation Class H

Power Factor 0.8 lag

Rated Speed / Frequency 1500 RPM, 50 Hz / 1800 RPM, 60 Hz

* Fuel tank can be customized as per requirement

** 1. The weight of the Diesel Generator is approximate (With engine lubricating oil and coolant as applicable, but without diesel fill)
