EcoFlow Power Kit: HUB, Cables and Distribution Panel

Easy Set Up

The integrated EcoFlow Power Hub has a simple plug-and-play design, allowing you to expand and customize your kit faster than any other power solution on the market.

Save Space

EcoFlow Power Hub combines two MPPT solar charge controllers, one battery charger with MPPT, one DC-DC step-down converter, and an inverter-charger. With fewer modules and thinner wires, this 48V system saves you space and installation hassle.

Charge Your Way

EcoFlow Power Kits support multiple charging methods. Get plenty of solar power, use your alternator, plug in shore power, or even use an EcoFlow Smart Generator for emergency charging.

4 Charging Methods

You might be on the road, but there are plenty of ways to charge, and fast. We’ve designed a new range of rigid and flexible solar panels giving your van a solar input of up to 4800W*. Use your alternator to recharge with 1000W. Spending the night on a campsite? Then take advantage of shore power for an extra 3000W. Caught short? Rely on our Smart Generator for emergency backup.

*Tested using a production model in a closed environment with favorable conditions. Actual results may vary depending on environment, usage, and firmware version.

Setups Made Simple

Simple Assembly

We made our modular system plug-and-play so you can quickly customize your van power whenever you want. Simply stack a battery to increase capacity, or plug in a solar panel for faster charging.

We’ve got experts on-hand to guide you through the installation process or put you in touch with authorized and reputable installers.

Compact & integrated Design

Unlike other RV power solutions, Power Kits combine five components into one Power Hub that deals with all your power needs, saving you space, money, and set-up hassle. Our 2 and 5kWh batteries securely stack in threes, giving you an expandable capacity of up to 15kWh.

Space-Saving Solutions

To save your valuable space, we shrank down the traditional power kit, integrating components, using thinner wires, and creating a unique stackable battery. Conveniently conceal the Power Hub, batteries and other accessories so they’re out of sight, under seats or in a closet.

48V, a safer, smaller power solution.

Power Kits offer you a safe, 48V power solution for your van. A 48V system produces the same amount of power, but unlike 12Vs, only a quarter of the electric current passes through the wires, producing significantly less heat and power loss.

Smart Controls

Keep an eye on your energy at home and on the go with a whole host of setting options and real-time data tracking accessible from the app and Power Kit Console.

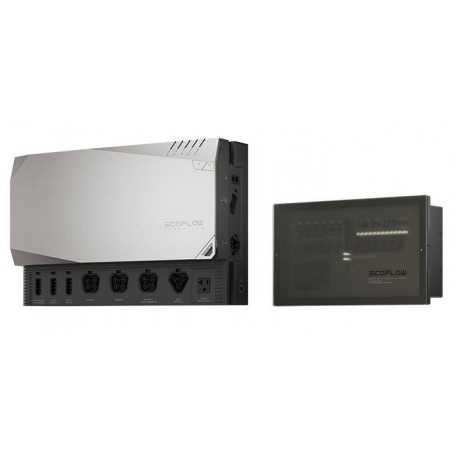

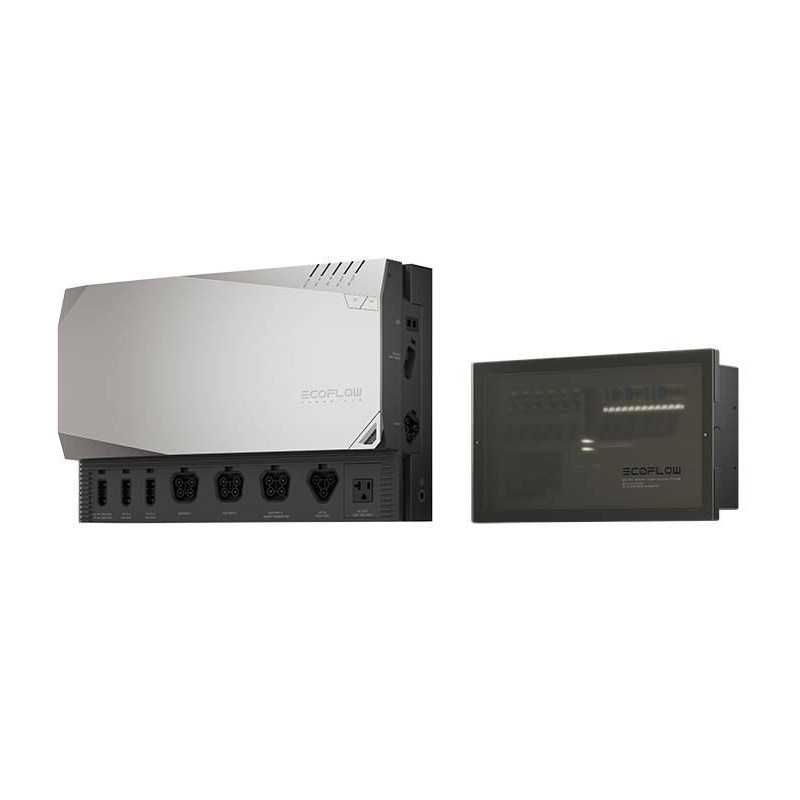

Included

Power Hub

Cable kit

Distribution panel

Power Hub Specifications

Manufacturer EcoFlow

Name Power Hub

Pure Sine Wave AC output, 3600 W (7200 W flow), 120 V, 50/60 Hz.

DC output 13.6 V / 70 A, 1000 W max; 26.4 V / 60 A, 1600 W max;

AC input Fast charging X-Stream 3000 W max, 15 A max.

AC input voltage 220-240 V, 50/60 Hz

Solar charging inputs 15-150 V 30 A, 1600 W max.

Alternator charging inputs 13-60 V 60 A, 1600 W max.

Operating temperature -25°C - 60°C

Storage temperature -25°C - 60°C

Charging temperature -25°C - 60°C

Discharge temperature -25°C - 60°C

Dimensions 48 x 14 x 30 cm

Weight 14 kg

Distribution panel specifications

Manufacturer EcoFlow

Name Distribution panel

AC main input 30A max. 220-240V, 50 Hz

DC main input 70A max. 10-30V DC

AC output 6 AC circuits, max 10A each, 220-240V, 50 Hz

DC output 6 controlled circuits + 6 regular circuits, 20A each max, 10-30V DC

Operating temperature -25℃-60℃

Dimensions 35.4 x 21 x 9.8 cm

Net weight 2.6 kg

Tests and certifications UL Standard, FCC, PSE
