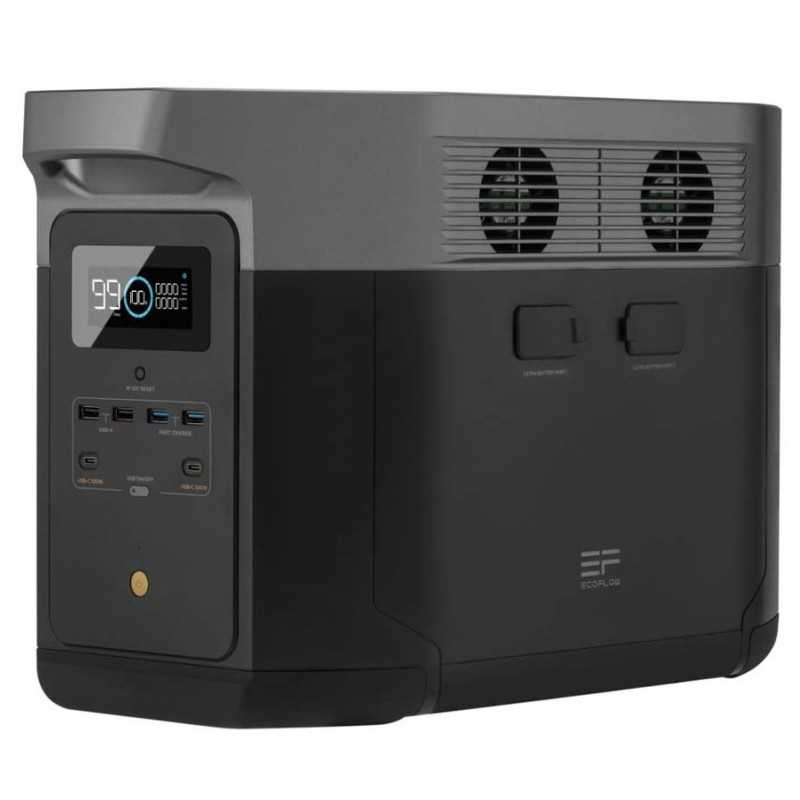

EcoFlow DELTA Max 1600 Portable Power Station

Home emergency power: DELTA Max expands up to 6kWh with smart extra batteries, keeping your home powered on in any emergency.

Rapid dual charging: Charge up from 0-80% in 1 hour. Or get up to 3600W speeds by combining AC charging and the EcoFlow Smart Generator.

Power multiple devices: Looking for something to power heavy-duty devices like your fridge and dryer? With X-Boost, DELTA Max handles devices up to 3000W with ease.

Portable solar generator: Stay powered on no matter what. DELTA Max connects with up to 2x 400W EcoFlow solar panels to deliver 800W Max solar charging speeds.

Backup your home during power outages with DELTA Max. With an expandable capacity that reaches up to 6kWh, dual charging, and the ability to power your home devices, you can stay powered on in any situation.

• Expandable Capacity
• Dual Charging
• Power multiple devices
• 800W max Solar Input

Expandable home backup power.

A single DELTA Max unit packs a 2kWh capacity that is expandable up to 6kWh with DELTA Max smart extra batteries. This means when a blackout hits, you can continue to power your important home devices such as your fridge and lights for hours on end.

Convenient and fast dual charging.

DELTA Max charges up safely and rapidly from 0-80% in just 1 hour. And it gets even better. If you're looking for an even faster way to charge up DELTA Max, you can combine AC with the Smart Generator, AC with solar, or the Smart Generator with solar.

Power 99% of your home devices.

With EcoFlow's X-Boost technology, DELTA Max can power heavy-duty devices up to 3000W. That means during a power outage or blackout, you can continue to power your fridge, dryer, and more. That's the industry gold standard for a portable power station of this size and capacity.

Harness the power of the sun.

DELTA Max connects with up to 2x 400W EcoFlow solar panels to deliver 800W Max solar charging speeds. With a voltage range from 11-100V and the solar connector, you can also connect other solar panels to your DELTA Max. Even during cold or cloudy days, our smart maximum power point tracking (MPPT) algorithm automatically detects voltage and current in real time to give you optimum solar generation throughout the day.

Emergency backup power.

Disasters can occur at any time of the year, sometimes lasting longer than we ever expected. When extended blackouts hit, the EcoFlow Smart Generator serves as an emergency option that integrates with DELTA Max. It auto-starts when your DELTA Max hits a low level of charge, recharges your DELTA Max, and stops the engine all by itself once your DELTA Max hits a full charge. This gives you a reliable emergency backup option that relies on minimum use of a generator.

Control, monitor, and manage your energy use.

Control and monitor your DELTA Max with the EcoFlow app. Dive into the settings to customize your power use or control DELTA Max remotely.

What's in the box

1.DELTA Max 2.AC Charging Cable 3.Car Charging Cable 4.DC5521 to DC5525 cable 5.User Manual

Specs of DELTA Max (1600)

Net Weight Approx. 48 lbs (22 kg)

Dimension 19.6 x 9.5 x 12 in (49.7 x 24.2 x 30.5 cm)

Charge Temperature 32 to 113°F (0 to 45°C)

Discharge Temperature -4 to 113°F (-20 to 45°C)

Warranty 24 months

Charge Method AC Wall Outlet, 12V Car Adaptor, Solar Panel, Smart Generator, Smart Extra Battery

Full Recharge Time 1.6 Hours (AC) 16.8 Hours (12V Car Charger) 4.5-9 Hours (Using 4x 110W Solar Panels) 3.4-6.8 Hours (Using 4x 160W Solar Panels) 2.5-5 Hours (Using 2x 400W Solar Panels)

Capacity 1612Wh

Cell Chemistry NCM

Cycle life 500 Cycles to 80%+ capacity

Management Systems BMS, Over Voltage Protection, Overload Protection, Over Temperature Protection, Short Circuit Protection, Low Temperature Protection, Low Voltage Protection, Overcurrent Protection

Testing and Certification CE WEEE CTP RCM KC

AC Charge Input (Power) X-Stream charge (1600W max)

AC Charge Input (Voltage and Amperage) 220-240V~50Hz/60Hz, 10A

Solar Charge Input 11-100V 13A Max, 800W max

Car Charge Input Supports 12V/24V Battery, Default 8A

AC Output (x4) Pure Sine Wave, 2000W total (surge 4600W), 230V~ (50Hz/60Hz)

Max Device(s) Power Supported by X-Boost 2500W

USB-A Output (x2) 5V 2.4A, 12W max, per port

USB-A Fast Charge (x2) 5V/2.4A, 9V/2A, 12V/1.5A, 18W Max

USB-C Output (x2) 5/9/12/15/20V 5A, 100W max

Car Charger Output (x1) 12.6V/10A, 126W max

DC5521 Output (x2) 12.6V/3A, per port

Smart Extra Battery Supports up to 2 DELTA Max Smart Extra Batteries (sold separately)

Smart Generator Supported (sold separately)

Wi-Fi Supported
