SAILOR 900 Ku in ST100 Radome - Maritime Ku-Band Antenna System

The SAILOR 900 VSAT is an advanced maritime stabilized Ku-band antenna system built with the same high quality and high performance that has made SAILOR the leading name in professional maritime communication equipment over decades.

A Top Performer

SAILOR 900 VSAT is an easy and quick to deploy three axis stabilized VSAT antenna with the highest RF performance in the 1m antenna class. Verified by extensive Eutelsat tests, you can trust that SAILOR 900 VSAT works with any leading VSAT platforms in the market.

Reduce Cost

Every SAILOR 900 VSAT antenna system comes factory-tested, equipped ready-togo with standardized top quality RF components (8W BUC, LNBs, OMT/diplexer) - and only one cable between antenna and below-deck. The antenna is shipped fully balanced, configured and does not need work prior to installation. This time and cost saving, plus the top RF performance make SAILOR 900 VSAT the most cost effective Ku-band antenna on the market to deploy.

Increase Up Time

The decision to install VSAT on a ship stems from the desire to have alwayson broadband connectivity at a simple flat rate fee. These networks are readily available from many providers (list upon request). Regardless of how and where you operate the SAILOR 900 VSAT, you can be confident of maximum availability because the system has several simple features to make sure your broadband connection is up, and stays up.

Two Antennas - One Modem

SAILOR 900 VSAT can operate two antenna systems on a single modem without the need for an extra box to manage that feature. This requirement arises when the vessel needs a satellite connection even when there are obstructions in the way. The two SAILOR antenna controllers manage the connection between satellite and modem.

More Flexibility

During the coming years, new high throughput satellites (HTS) will come online. Most of the new HTS will operate on Ka-bands. The SAILOR 900 VSAT is now prepared for a possible conversion from Ku to Ka band operation. The result is a thoroughly updated electronics, and both a reflector dish and radome which are both tuned to both Ku- and Ka band frequencies already.

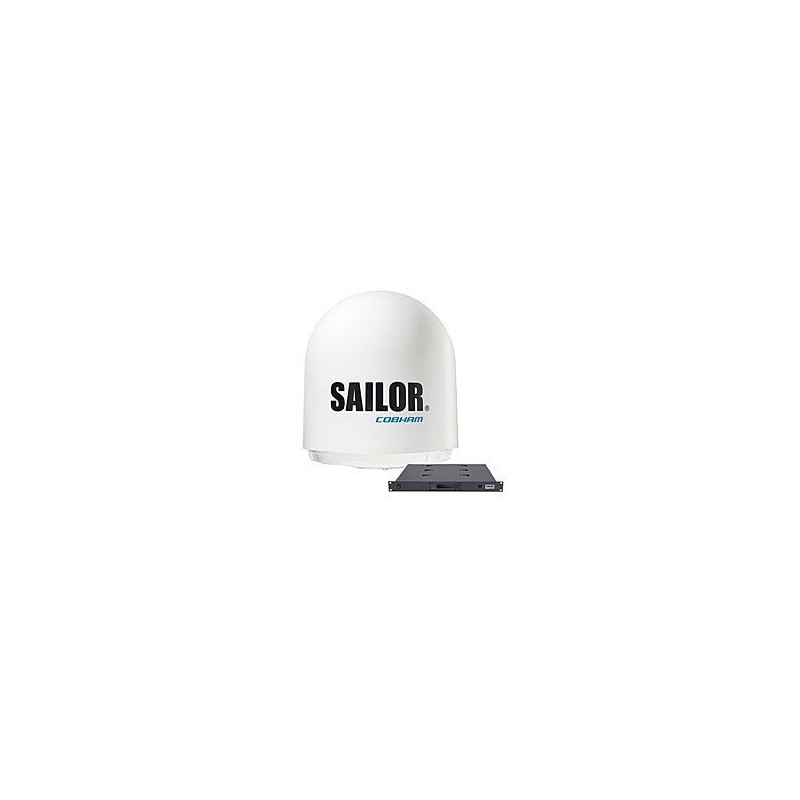

SAILOR 900 Ku in ST100 radome, maritime Ku-Band antenna system.
- 407009B-SEA-01 Above Deck Unit (ADU) inc. 103cm reflector, 8W BUC, 2x multi-band LNBs, OMT, diplexer, mounting accessories. Mounted in a ST100 radome of 1.34m
- 407016C-00505 antenna control unit (ACU) with AC power input for 19" rack mounting (1U)
- User and installation manual
- AC power cord
- NMEA multi plug
- 2x 1m 75 Ohm coax cable TX/RX ACU-VMU
- Ethernet cable
