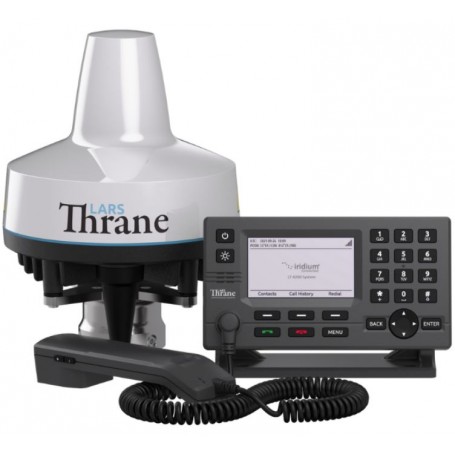

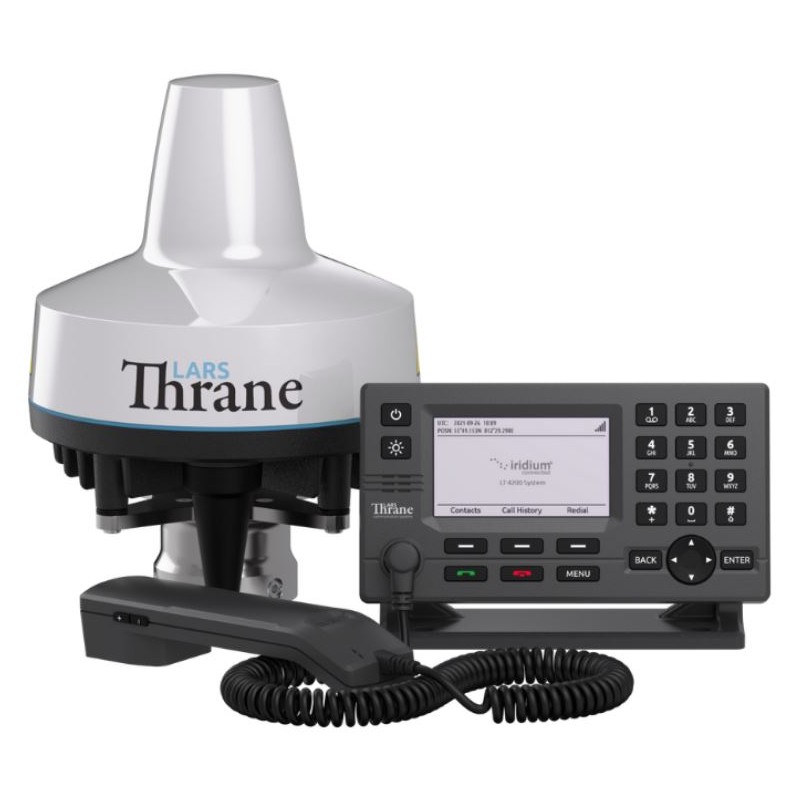

Thrane LT-4200L Iridium Certus 200 LandMobile Satellite Communications System - basic (90-103324)

The LT-4200L Satellite Communications System is exclusively designed for land mobile applications, intended for fixed installations. Boasting voice and data capabilities, it leverages the comprehensive coverage of the Iridium® Network, ensuring seamless connectivity worldwide. Comprising a control unit, antenna unit, handset, and cradle, the LT-4200L offers three high-quality voice channels and IP-data transmission at 176 kbps (up) / 176 kbps (down).

Features:

• Three High-Quality Voice Channels: Simultaneously active voice calls can be managed on different voice lines, configurable to cover multiple phones.
• IP-Data: 176 kbps (up) / 176 kbps (down): Built-in IP data with max speeds of 176 kbps (up) and 176 kbps (down), supporting stable data connections. Data can be set to Always On or Manual Start/Stop for user convenience.
• Single-Antenna Cable Solution (150m): Utilizes a single coaxial cable to connect the control unit with the antenna unit, offering up to 150m of separation flexibility for optimal antenna placement.
• Support for External SIP Handsets: Compatible with external SIP PABX and SIP handsets, supporting configuration of up to 8 external SIP handsets.
• Firewall & User Authentication: Features a built-in outgoing firewall for configuring specific network traffic and user authentication for enhanced security.
• Web Server for Configuration & Maintenance: Built-in web server with user authentication enables easy system configuration and maintenance.

System Components:

• LT-4210 Control Unit
• LT-3120 Handset
• LT-3121 Cradle
• LT-4230L Antenna Unit (LandMobile)
• Bracket Mount for Control Unit
• Power Cable (3m, 4-pin)
• User & Installation Manual

Specifications:

LT-4210 Control Unit:

Weight: 658 g (1.45 lbs)

Dimensions: 224.0 x 120.0 x 70.0 mm (8.82 x 4.72 x 2.76 in)

Operational Temperature: -15°C to +55°C (+5°F to +131°F)

IP Rating: IP32

LT-3120 Handset Unit:

Weight: 290 g (0.64 lbs)

Dimensions: 208.8 x 52.8 x 38.2 mm (8.22 x 2.08 x 1.50 in)

Operational Temperature: -15°C to +55°C (+5°F to +131°F)

IP Rating: IP32

LT-4230L Antenna Unit:

Weight: 3.70 kg (8.16 lbs)

Dimensions: 238.7 x Ø 224.6 mm (9.40 x Ø 8.84 in)

Operational Temperature: -40°C to +55°C (-40°F to +131°F)

IP Rating: IP67
