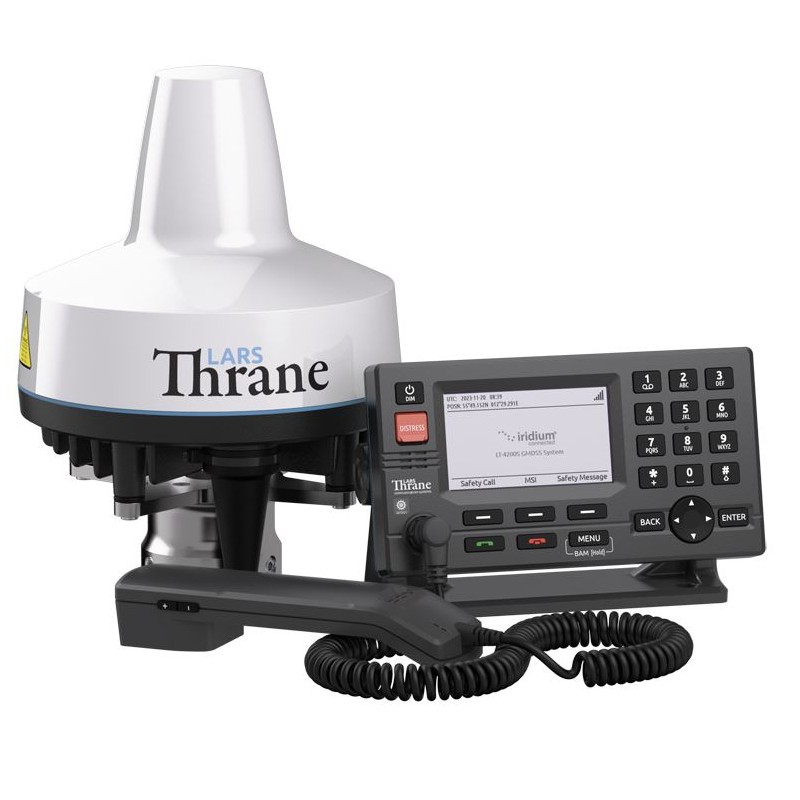

Thrane LT-4200S GMDSS Satellite Communications System - basic (90-104506)

Thrane LT-4200S GMDSS Satellite Communications System – Basic Version (90-104506)

The LT-4200S GMDSS System is an Iridium satellite communication solution designed to meet all GMDSS requirements for SOLAS vessels with complete global coverage.

The system is fully compliant and tested according to the latest GMDSS standard IEC 61097-16 (2019) and is MED/Wheelmark approved.

The LT-4200S GMDSS System features a compact and space-saving design with no requirement for an external message terminal or printer. It provides Iridium GMDSS services, high-quality voice communication with three simultaneous channels, and IP data connectivity.

An integrated GNSS/GPS receiver supports tracking functionality and provides NMEA 0183 position data output. The system can interface with external BAM and ECDIS systems. The antenna unit can be installed up to 150 meters away from the control unit.

Key Features

• 100% global satellite coverage
• Distress alert and distress call functionality
• Maritime Safety Information (MSI)
• BAM and ECDIS integration
• Three high-quality voice channels
• IP data transfer up to 176 kbps upload/download
• IP data management features, including outgoing firewall configuration and port forwarding
• Antenna cable length up to 150 meters

System Components Included

• 51-103118 LT-4210S Control Unit
• 51-100988 LT-3120 Handset
• 51-101181 LT-3121 Cradle
• 51-102640 LT-4230 Maritime Antenna Unit
• 91-100771 Bracket Mount for Control Unit
• 91-102118 Power Cable, 3 m (4-pin)
• 95-104746 User and Installation Manual

Technical Specifications

LT-4200S GMDSS Satellite Communications System

• Certifications and standards:
  • Maritime CE
  • FCC
  • ISED
  • RCM
  • RED
  • MED (Wheelmark)
  • MER
  • RoHS 2
  • Iridium®
• Operational vibration standard: IEC 60945
• Shock resistance: Half sine 20 g / 11 ms
• Compass safe distance (standard): 0.3–1.4 m
• Compass safe distance (steering): 0.3–0.9 m
• Maximum transmit power consumption: 164 W
• Receive mode power consumption: 34 W

LT-4210S Control Unit

• Weight: 0.67 kg
• Dimensions: 224 × 120 × 70 mm
• Operating temperature: -15°C to +55°C
• Protection rating: IP32
• Interfaces:
  • Ethernet
  • Auxiliary
  • DC input
  • Chassis ground
  • Antenna Unit (N connector)
  • Handset
  • SIM card
• Input power: 24 VDC (8 A)

LT-3120 Handset Unit

• Weight (including cable): 0.30 kg
• Dimensions: 52.8 × 208.8 × 38.2 mm
• Operating temperature: -15°C to +55°C
• Protection rating: IP32

LT-4230 Antenna Unit

• Weight: 3.70 kg
• Dimensions: 238.7 mm × Ø224.6 mm
• Operating temperature: -40°C to +55°C
• Protection rating: IP67
• Interface: Control Unit (N connector)
• Antenna communication cable: Coaxial cable up to 150 m

LT-3140S Interface Unit

• Weight: 0.71 kg
• Operating temperature: -15°C to +55°C
• Protection rating: IP20
• Interfaces:
  • 4 × Ethernet
  • 2 × RS-422
  • 4 × GPIO
  • 4 × CAN
  • DC input
  • Chassis ground
• Input voltage: 24 VDC (0.4 A)

LT-3150S Alarm Panel

• Weight (including 25 m cable): 0.07 kg / 1.29 kg
• Operating temperature: -15°C to +55°C
• Protection rating: IP30
• Interface: CAN

Additional Information

• Warranty: 2 years
• Maintenance requirements: None
