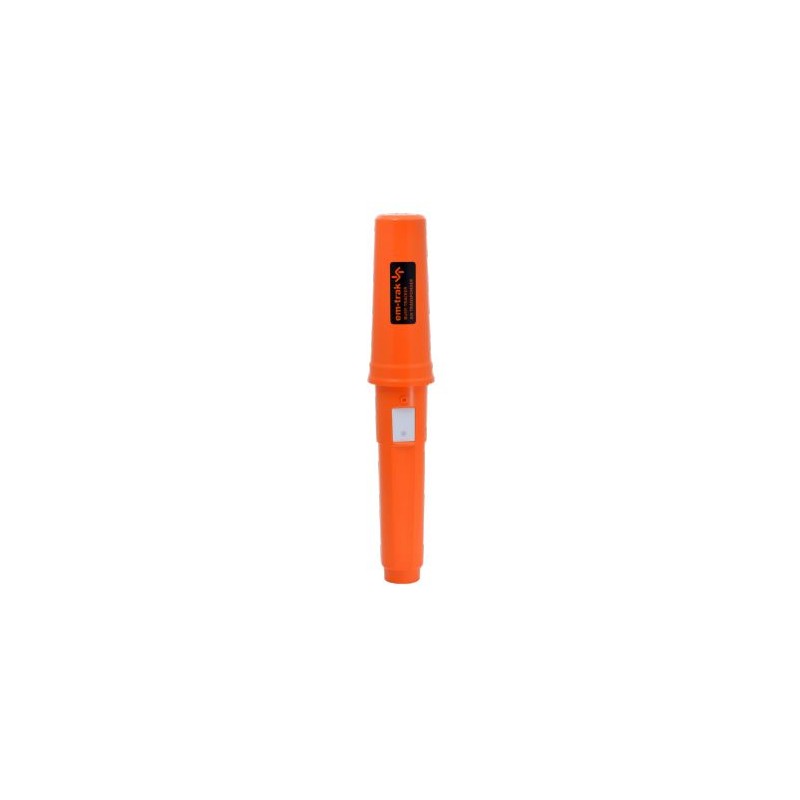

Em-Trak BT100 Fishing Buoy Tracker
524 $ net price (non-EU countries)
Karol Łoś
Product Manager
/
+48603969934
+48507526097
[email protected]
Description
Precisely track, locate and protect your buoys and gear using em-trak's BUOY-Tracker. Designed for continuous use and powered by its own internal battery, this market-leading AIS transponder will operate continuously for five days between charges and integrate seamlessly with your existing onboard navigational display.
NOTE: in order to operate BUOY-Tracker, you will require a bracket 417-0025 and a charger 417-0020. Prior to use BUOY-Tracker mustbe programmed and you will need a Programming Dock 417-0047 to perform this exercise.
The Programming Dock can be used to program multiple BUOY-Trackers and also acts as a charger. BUOY-Tracker is used globally in different applications and em-traks accessories allow you to createyour own combination of BUOY-Trackers, chargers and brackets suitable for your own individual requirements.
FEATURES
- Globally certified Type 1 AIS Aids to Navigation Transponder
- Simple to configure and use – automatically switches on when fixed to buoy
- Precise location and identity of buoy displayed on your chart display in real time using AIS
- 120 hour operational life between charges – internal battery recharges within 5 hours
- Ruggedized for continuous long term operation at sea in even the harshest of weather
PHYSICAL & ENVIRONMENTAL SPECIFICATION
Size (H x W x D) 67 x 370mm
Weight 355g
Operating temperature -25°C to +55°C
Storage temperature -25°C to +70°C
Ingress protection IPx6 and IPx8
ELECTRICAL SPECIFICATION
Battery capacity 2300mAh
Battery type 3.7V Li-Ion rechargeable
Battery life (default operating conditions) 120 hours
STANDARDS COMPLIANCE
AIS standards IEC 692320-2 Ed. 2
Product safety standards EN60950-1 2006 +A11:2009, +A1:2010 +A12:2011 +A2:2013
Environmental standards IEC 60945 Ed. 4
GNSS performance standards IEC 61108-1 Ed 2.0
GNSS
Systems supported GPS
Channels 50
Internal/external antenna Internal only
Time to first fix from cold start 37s
VHF TRANSCEIVER
VDL access scheme FATDMA
Operating frequency 156.025MHz - 162.025MHz
Channel bandwidth 25kHz
Receivers/transmitters 1 x transmitter
AIS transmitter power 1W (30dBm radiated)
USER INTERFACE
Indicators Status indicator
CHARGING DOCK
Size 110 x 120 x 78mm
Weight 360g
Power Supply 115V / 240V AC
CONFIGURATION DOCK
Size 110 x 120 x 78mm
Weight 360g
Power Supply 115V / 240V AC
PC interface USB (cable supplied)
IN THE BOX
1 x AIS transceiver
You will also need to purchase 1 x Bracket and fixings pack and
1 x Charging and configuration dock in order for the unit to operate
